CyberStore 436S DSS iSCSI SAN / NAS

CyberStore 436S ISCSI SAN & NAS - Open-E iSCSI

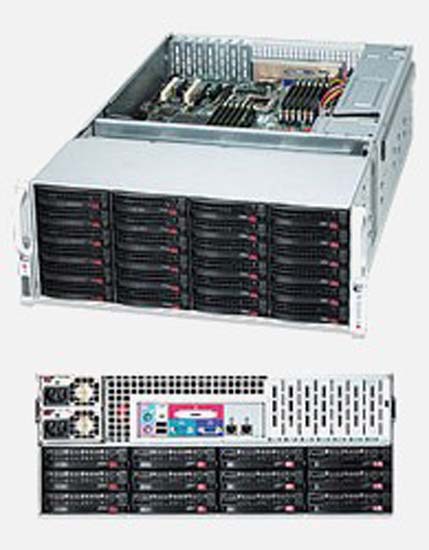

The CyberStore 436S iSCSI DSS (Data Storage Server) OPEN-E storage appliances are 4U rackmount storage servers with Thirty Six hot swap SAS (Serial Attached SCSI) or SATA II (Serial ATA) nearline ready enterprise class hard drives. As the ultimate reliable iSCSI SAN & NAS storage appliance, the CyberStore 436S ISCSI DSS (Data Storage Server) stresses speed, ease of management and dependable storage for all of your data storage requirements.

Configured with up to 36 ultra fast SAS or SATA II 6Gb/s drives, the CyberStore 436S ISCSI SAN & NAS can provide a RAID level 0, 1, 5, 6, 10, 50 and 60 storage environment. Yielding the best storage capacity and performance in it’s class, the 4U CyberStore 436S iSCSI DSS storage appliance offers flexibility, fault tolerance, speed and data security.

Dividing data into 2TB increments is inefficient and has become a storage management nightmare. The storage volume array limitations in Windows are eliminated with the CyberStore 436S and as an added benefit this also eliminates the need to create dynamic disks and spanned volumes therefore attaining larger storage capacities making storage management a breeze whilst keeping optimal redundancy at all times.

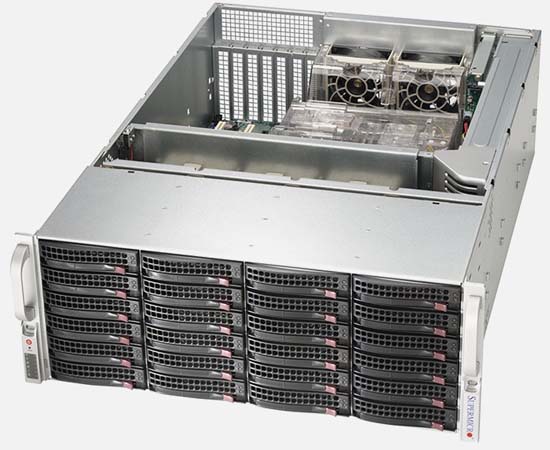

The chassis is rugged and reliable and designed to exceed the power, cooling and rotational vibration requirements of today’s high speed hard disk drives. The CyberStore 436S iSCSI DSS range of storage servers are also designed to install without interrupting your network configuration, and can be up and running within minutes.

Features

• Operating system
  Open-E ISCSI SAN & NAS Storage Software comes pre-installed, and is optimised for maximum storage performance and light-touch management.
• Redundancy
  Support for all raid levels including 0,1,5,6,10 & 50 and hot spares.
  Redundant Hot Swap Power Supply (2U and Above only).

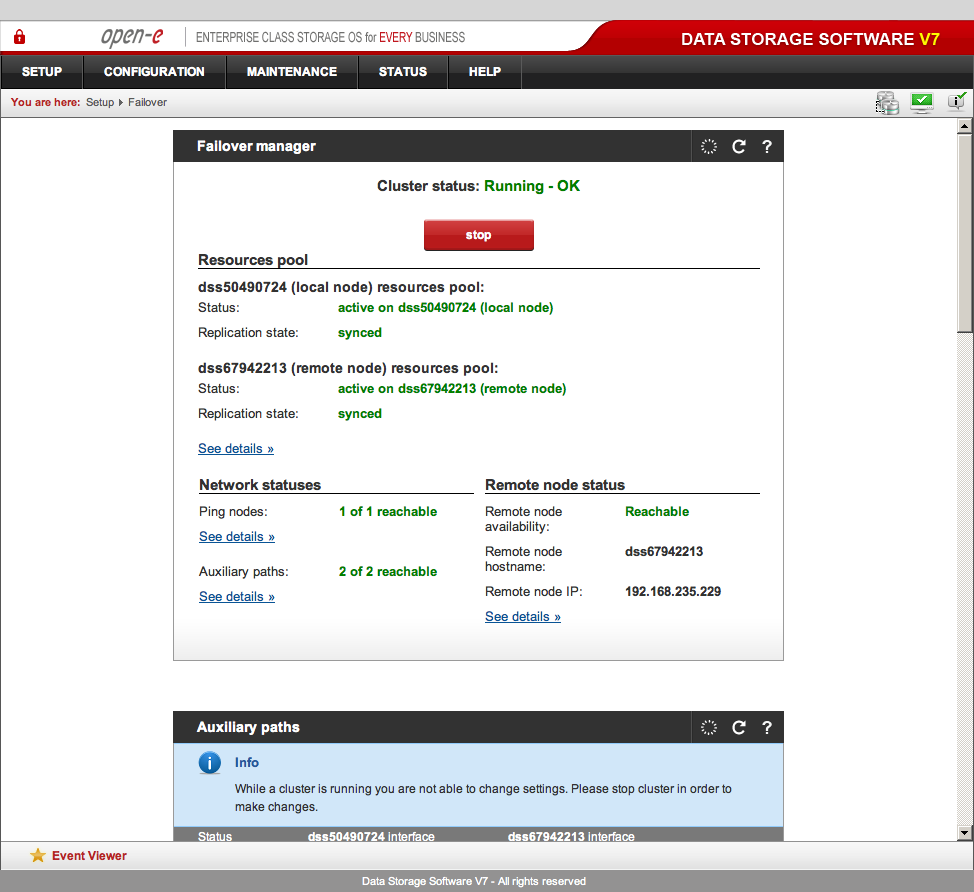

• iSCSI Failover / Clustering
  iSCSI Failover built in as standard with no additional licence costs.
  Two or more Cyberstore Appliances can be configured as master and slave so they will be seen as one unit. If any one of the units fails, it will automatically failover with no disruption to the users.
• Management
  Broadberry CyberStore Storage Servers can be managed remotely on a standard web browser and  integrated Lights-Out technology with optional IPMI 2 management can monitor and control all features.
• Universal connectivity
  Integrated protocols support access from Windows, NetWare, Linux, UNIX and Apple clients, plus HTTP and FTP – no software licences required.
• Shadow copy snapshots
  By creating scheduled snapshots of shared data, accidentally deleted or overwritten files can be automatically restored – no need to restore from tape.
• Data replication
  Replicate data between ISCSI SAN & NAS devices over a standard Ethernet network using built in Mirroring software. Data is synchronised based only on the changes made, minimising network traffic.
  Data Replication can be over a LAN (Local Area Network) or WAN (Wide Area Network). Synchronous or Asynchronous.
• Backup and recovery
  Protect your systems from trojan horses, worms and viruses with industry-leading anti-virus software– supported on Broadberry CyberStore Storage Servers for seamless integration into any anti-virus procedure

Hardware Features

• 24 hot swap SAS or SATA2 3Gb/s drive bays
• Nearline Ready (Enterprise Class) SAS or SATA2 hard drives with transfer rates of 3Gb/s
• Single 24 port Hardware RAID Controller with RAID self rebuild functions
• RAID levels 0, 1, 5, 6, 10 & JBOD
• Powered with Open-E
• No Client License Fees (unlimited users)
• Dual GbE (Gigabit Ethernet) connectivity (Teamed / Bonded support)
• Redundant 800Watt Efficient Power Supply
• Upgradable to Fibre Channel, Infiniband or 10GbE
• Low cost storage per GB ratio
• Best in class performance
• 4U Rackmount design

Detailed Specification

iSCSI SAN & NAS Network Attached Storage Administration
Web-based Graphical User Interface ISCSI SAN & NAS Storage Administration
Secured Administration Access
ISCSI SAN & NAS Tuning Tools for Optimal Performance for various applications
Remote Access for Console
Multiple Management Levels
Automated Updating of ISCSI SAN & NAS Operating system
Rollback to Previous ISCSI SAN & NAS Operating system
Task Manager
User Interface in Japanese, German, Russian, English languages
Schedule Manager
Network Management
DHCP Client
Multiple Network Interface Card Support
Teaming/Bonding (including Adapter Fault Tolerance)
10 Gb Ethernet Support
Infiniband Support
Proxy settings
IP-sec
Jumbo Frames Support
Storage Management
Software iSCSI Initiator
Hardware SAS & SATA RAID 0, 1, 5, 6 with E-Mail Notification
Degraded Mode for S/W RAID 1, 5, 6
S.M.A.R.T. with E-Mail Notification
Multiple Fibre Channel HBA Support (initiator mode)
Multiple Fibre Channel HBA Support (target mode)
ISCSI SAN & NAS Support for over 2TB Physical and Logical Volumes
ISCSI SAN & NAS Support for over 16TB Logical Volumes
Multiple Snapshot (multiple active snapshots per one LV at a time)
Multiple Logical Volume & Groups
Online Logical Volume Expansion
Support for Online Capacity Expansion
Volume Replication
Monitoring
Hardware Monitoring
SNMP v2, v3
E-mail Notification
Log Function
Hardware Support
Multiple CPU Support (32x)
UPS and Network UPS Support
Specific NAS Functionality
Windows Active Directory / Primary Domain Controller
Support For Network Information Service (NIS)
Internal and External LDAP
ADS & NIS User / Group ID Synchronization
File System with Journaling Support
User and Group Quota Control
Antivirus (server's shares scanning)
Antivirus (online scanning for SMB protocol)
USB Storage Support for Dynamic Disk
Backup-Agents (Veritas, EMC Dantz, CA BrightStor)
NAS Supported Network Clients
Microsoft Windows, Linux, Unix, Mac OS 8.0, 9.0, X, 10.4
Specific iSCSI Functionality
IP Address Restrictions for a Target
CHAP User Management
MPIO Support
iSCSI Failover / Clustering  (more than one appliance required)
NAS Supported Network File Protocol
SMB/CIFS, FTP, Secure FTP, HTTP, Apple Talk, NFS v2, v3
NAS Backup Utility
Local Backup
Integrated Backup System
NAS Data Replication
Virtual Tapes
Support for Tape Libraries, Autoloaders
Tape Retention Time
Other iSCSI SAN & NAS Features
USB-DOM hardware for 30% faster booting and improved hardware compatibility
Support for SWAP
Help with search and index
Extended save & restore settings
Connections Status
Sessions Management
Upgrade Ability
