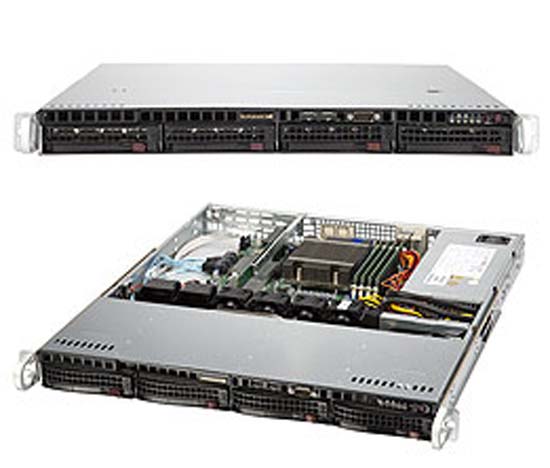

Supermicro A+ Server 1012A-MTF | AS-1012A-MTF®

Configure a Supermicro A+ Server 1012A-MTF | AS-1012A-MTF

  • Single AMD Opteron 3000 series (3300 ready) processor (Socket AM3+) 8/4-Core ready; HT3.0 Link
  • Up to 32GB DDR3 1600MHz Unb. ECC/non-ECC; 4x DIMM sockets
  • 1 PCI-E 2.0 x4 (in x8 slot)
  • 2x Intel 82574L single-port Gigabit Ethernet Controller
  • 4x Hot-swap SAS/SATA Hard Drive Bays AMD SP5100 Controller; RAID 0, 1, 10
  • 350W High-efficiency Power Supply Gold Certified

Configure From £744.83  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice.

Supermicro A+ Server 1012A-MTF | AS-1012A-MTF Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.


Product SKUs
AS-1012A-MTF
  • A+ Server 1012A-MTF

Motherboard
Super H8SML-iF

Processor / Chipset
CPU
  • Single 942-pin Socket AM3+
  • Supports up to Single 8/4-Core ready AMD Opteron⢠3000 Series processor
  • HT3.0 Link support
Chipset
  • AMD chipset SR5650/SP5100

System Memory
Memory Capacity
  • 4 DIMM sockets
  • Support up to 32GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 4 DIMMs
  • Single or Dual channel memory bus
Memory Type
  • DDR3 1600/1333/1066MHz un-buffered ECC / non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 8GB, 4GB, 2GB, 1GB
Memory Voltage
  • 1.35V or 1.5V

On-Board Devices
SATA
  • AMD SP5100 RAID 0, 1, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM over LAN support
  • Winbond WPCM450 BMC
Network Controllers
  • Intel 82574L single-port Gigabit Ethernet, 10/100/1000Base-T support
VGA
  • Matrox G200eW 16MB DDR2 graphics
Super I/O
  • Winbond W83527HG chip

Expansion Slots
PCI-E/PCI
  • 1 PCI-E 2.0 x4 (in x8 slot)

Input / Output
SATA
  • 6x SATA2.0 (3Gb/s) Ports
USB
  • 7x USB 2.0 ports (2x rear / 2x header - 4 ports / 1x type A)
VGA
  • 1x VGA port
Serial Ports
  • 2 Fast UART 16550 serial ports
  • 1 header & 1 port
IPMI
  • 1x dedicated IPMI LAN port

System BIOS
BIOS Type
  • 16Mb SPI Flash ROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 2.0
  • USB Keyboard Support
  • SMBIOS 2.3
Chassis
Form Factor
  • 1U Rackmount
Model
  • 813MT-350CB

Dimensions
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 19.85" (503 mm)
Gross Weight
  • 41 lbs(18.59kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED
Ports
  • 1x VGA, 1x COM, 2x GbE LAN, 4x USB 2.0 ports ( 2x Rear +2 Front), 1x dedicated LAN for system management (IPMI 2.0)

Drive Bays
Hot-swap
  • 4 hot-swap 3.5â SATA drive bays
  • Enterprise SATA HDD only recommended

Peripheral Drives
System Cooling
Fans
  • 4x 4cm heavy duty counter-rotating fans

Power Supply
350W AC power supply w/ PFC
AC Voltage
  • 100-240 V, 50-60 Hz, 4.2-1.8 Amp
+5V
  • 18 Amp
+5V standby
  • 3 Amp
+12V
  • 29 Amp
+3.3V
  • 15 Amp
Certification
  Gold Certified


PC Health Monitoring
CPU
  • Monitors CPU Core Voltages, +3.3V, +5V, +12V, 5V Standby, VBAT
  • Monitor for HyperTransport voltage 1.2V, DDR termination 1.25V
  • CPU 4-phase Switching Voltage Regulator
FAN
  • Total up to four 4-pin fan headers
  • 4 Fan Status Tachometer monitoring
  • Status Monitor for Speed Control
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip support
  • I2C temperature sensing logic
LED
  • CPU / Overheat LED
  • Suspend-state indicator LED
  • +5V Standby Alert LED
Other Features
  • Chassis Intrusion Header
  • Chassis Intrusion Detection
  • Chipkill Support

A 1U Supermicro SuperServer based on 1x AMD Opteron 3000 Series range of processors, the Supermicro A+ Server 1012A-MTF | AS-1012A-MTF is configurable with up to 4x Hot-Swap Drives drive bays, and designed for optimal performance with 4x DDR3 memory sockets .

The Supermicro A+ Server 1012A-MTF | AS-1012A-MTF supports the AMD Opteron 3300 Series family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro A+ Server 1012A-MTF | AS-1012A-MTF boasts 1 PCI-Express slots for expandability, and as with all of our servers it can be fully

--split--

customised online

Supermicro A+ Server 1012A-MTF | AS-1012A-MTF Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: Opteron 3000 Series
  • Range: Data Center Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 32GB
  • --split--
