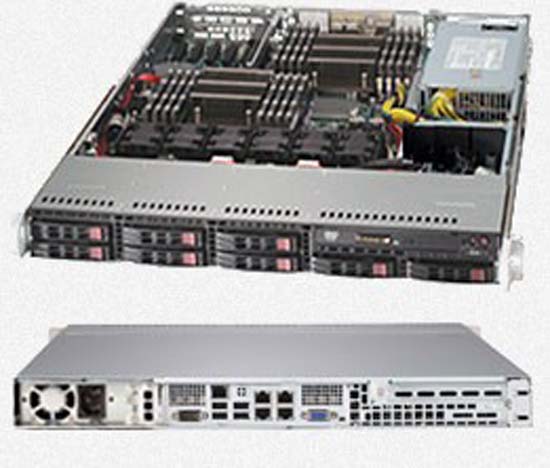

Supermicro SuperServer 1027R-73DAF | SYS-1027R-73DAF®

Configure a Supermicro SuperServer 1027R-73DAF | SYS-1027R-73DAF

  • Intel Xeon processor E5-2600 family; QPI up to 8GT/s
  • Up to 512GB DDR3 1600MHz ECC Registered DIMM; 16x DIMM sockets
  • Expansion slot: 1 (x8) PCI-E 3.0
  • I/O Support: Intel i350 GbE LAN (4x ports), 9x USB 2.0 ports (4x rear, 4x via headers, 1x Type A)
  • 8x Hot-swap 2.5" SAS/SATA HDD bays; SAS2 support via LSI 2308
  • 560W High-efficiency Power Supply 80 PLUS, Gold Level Certified

Configure From £1,161.00  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice.

Supermicro SuperServer 1027R-73DAF | SYS-1027R-73DAF Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.


Product SKUs
SYS-1027R-73DAF
  • SuperServer 1027R-73DAF (Black)

Motherboard

Super X9DRD-7LN4F

Processor/Cache
CPU
  • Dual Socket R (LGA 2011)
  • Supports up to two Intel Xeon 64-bit processor(s) of the same type below:
    Intel Xeon processor E5-2600
    (60W to 135W)
Cache
  • Up to 20MB
System Bus
  • QPI up to 8 GT/s

System Memory
Memory Capacity
  • 16x 240-pin DDR3 DIMM sockets
  • Supports up to 512 GB DDR3 ECC Registered memory (RDIMM)
  • Supports up to 128 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type
  • 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage
  • 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C602J chipset
SATA
  • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
  • SATA 3.0 6Gbps with RAID 0, 1, 5, 10
SAS
  • SAS2 (6Gbps) via LSI 2308
  • SW RAID 0, 1, 10 support
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Renesas SH7757 BMC
Network Controllers
  • Intel i350 Quad Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics
  • Matrox G200eW

Input / Output
Serial ATA
  • 2x SATA 3.0 ports (6Gbps)
  • 4x SATA 2.0 ports (3Gbps)
SAS
  • 8x SAS ports
LAN
  • 4x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 9x USB 2.0 ports total
    (4x rear + 4x via header + 1x Type A)
VGA
  • 1x VGA port
Serial Port / Header
  • 1x Fast UART 16550 port / 1 Header
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-113TQ-563CB

Dimensions
Width
  • 17.2" (437mm)
Height
  • 1.7" (43mm)
Depth
  • 23.5" (597mm)
Gross Weight
  • 37 lbs (17.78kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • 2x Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots
PCI-Express
  • 1 (x8) PCI-E 3.0 slot

    (Both CPUs need to be installed for full access to PCI-E slots. See manual for details.)

Drive Bays
Hot-swap
  • 8x Hot-swap 2.5" SAS / SATA HDD trays

Backplane
SAS / SATA HDD Backplane

System Cooling
Fans
  • 6x 40x56mm Counter-rotating PWM fans

Power Supply
560W AC power supply w/ PFC (24-pin)
AC Voltage
  • 100-240 V, 50-60 Hz, 7.5 Amp max
+5V
  • 18 Amp
+5V standby
  • 3 Amp
+12V
  • 46 Amp @ 100-180V;
     49 Amp @ 180-240V
-12V
  • 0.5 Amp
+3.3V
  • 15 Amp
Certification   80PLUS Gold Certified

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • BIOS resuce hot keys
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

A 1U Supermicro SuperServer based on 2x Intel E5 2600 range of processors, the Supermicro SuperServer 1027R-73DAF | SYS-1027R-73DAF is configurable with up to 8x Hot-Swap Drives drive bays, and designed for optimal performance with 16x 1600MHZ DDR3 memory sockets .

The Supermicro SuperServer 1027R-73DAF | SYS-1027R-73DAF supports the Intel Xeon E5 2600 Series Processors family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 1027R-73DAF | SYS-1027R-73DAF boasts 1 PCI-Express slots for expandability, and as with all of our servers

--split--

it can be fully customised online

Supermicro SuperServer 1027R-73DAF | SYS-1027R-73DAF Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: E5 2600
  • Range: Data Center Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 2.5" Drives
  • Maximum RAM Capacity: 512GB
  • --split--
