Supermicro SuperServer 1028R-WMR | SYS-1028R-WMR®

Configure a Supermicro SuperServer 1028R-WMR | SYS-1028R-WMR

  • Short Depth 16.9", WIO
  • Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s
  • Up to 2TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 16x DIMM slots
  • 2x PCI-E 3.0 x16 (FHHL) slots
  • 2x 2.5" Fixed drive bays w/ bracket
  • Intel i350 Dual port GbE LAN
  • Integrated IPMI 2.0 and KVM with Dedicated LAN
  • I/O ports: 2x SuperDOM, 1x VGA, 1x COM, 2x USB 3.0, 4x USB 2.0
  • 400W Redundant Power Supplies Gold Level; BBP option

Configure From £1,114.15  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice.

Supermicro SuperServer 1028R-WMR | SYS-1028R-WMR Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.


Product SKUs
SYS-1028R-WMR
  • SuperServer 1028R-WMR

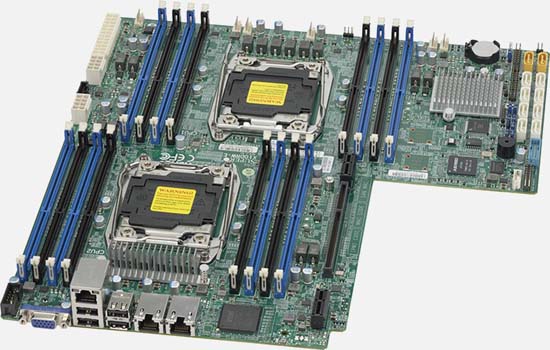

Motherboard

Super X10DRW-E

Processor/Cache
CPU
  • Intel Xeon processor E5-2600 v4â / v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Coresâ  / Up to 55MBâ  Cache
System Bus
  • QPI up to 9.6 GT/s
Note â  BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TBâ  ECC 3DS LRDIMM, 512 ECC RDIMM
Memory Type
  • 2400â /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel C612 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel i350 Dual Port Gigabit Ethernet Controller
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Video
  • ASPEED AST2400 BMC

Input / Output
Serial ATA
  • 10x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 ports (via header)
  • 4x USB 2.0 ports (rear)
VGA
  • 1x VGA port
Serial Port / Header
  • 1x Header
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-514-R400W

Dimensions
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 16.9" (429mm)
Weight
  • Net Weight: 16.5 lbs (7.48 kg)
  • Gross Weight: 27 lbs (12.25 kg)

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED

Expansion Slots
PCI-Express
  • 2x PCI-E 3.0 x16 Full-height, Half-length slots

Drive Bays
Internal
  • 2x 2.5" Fixed drive bays with bracket

Backplane
SAS/SATA HDD Backplane
(SAS support requires optional SAS controller)

System Cooling
Fans
  • 4x 40x56mm PWM fan; 2x fans for AOC cooling

Power Supply
400W Redundant Power Supplies w/Power Distributor, PMBus 1.2, I2C, and PFC
AC Input
  • 100-240V, 50-60Hz, 6-3A
DC Output
  • +5V standby: 3A
  • +12V: 33A
DC Output
With Power Distributor
  • +5V: 25A
  • +3.3V: 25A
  • -12V: 0.6A

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

A 1U Supermicro SuperServer based on 2x E5 2600 v4 range of processors, the Supermicro SuperServer 1028R-WMR | SYS-1028R-WMR is configurable with up to 2x Fixed Drives drive bays, and designed for optimal performance with 16x DDR4 memory sockets .

The Supermicro SuperServer 1028R-WMR | SYS-1028R-WMR supports the Xeon E5 2600 v4 Series Processors family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 1028R-WMR | SYS-1028R-WMR boasts 2 PCI-Express slots for expandability, and as with all of our servers it can

--split--

be fully customised online

Supermicro SuperServer 1028R-WMR | SYS-1028R-WMR Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: E5 2600 v4
  • Range: Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Fixed Drives
  • HDD Size: 2.5" Drives
  • Maximum RAM Capacity: 1TB
