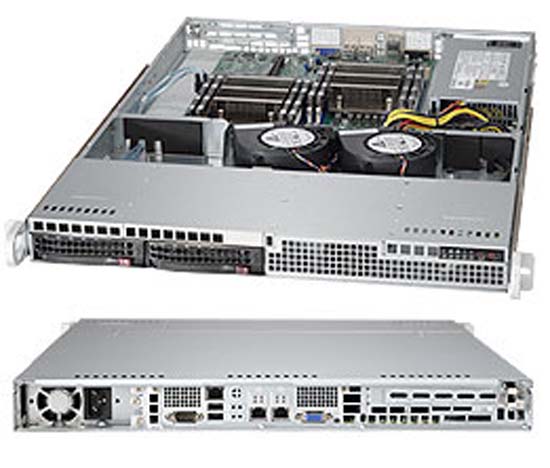

Supermicro SuperServer 6017R-TDLF | SYS-6017R-TDLF®

Configure a Supermicro SuperServer 6017R-TDLF | SYS-6017R-TDLF

  • Dual socket R (LGA 2011) supports Intel Xeon processor E5-2600 and E5-2600 v2 family
  • Up to 512GB ECC DDR3, up to 1866MHz; 8x DIMM sockets
  • 1x PCI-E 3.0 x16 FHHL Expansion slot
  • Intel i350 Dual port Gigabit Ethernet
  • 2x 3.5" Hot-swap SATA HDD Bays
  • 350W High-efficiency Power Supply Gold Level Certified

Configure From £866.81  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice.

Supermicro SuperServer 6017R-TDLF | SYS-6017R-TDLF Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.


Product SKUs
SYS-6017R-TDLF
  • SuperServer 6017R-TDLF

Motherboard

Super X9DRD-LF

Processor/Cache
CPU
  • Dual Socket R (LGA 2011)
  • Intel Xeon processor E5-2600
        and E5-2600 v2 familyâ
        (up to 95W TDP)
Note â  BIOS version 3.0 or above is required
Cache
  • Up to 30MB
System Bus
  • QPI up to 8 GT/s

System Memory
Memory Capacity
  • 8x 240-pin DDR3 DIMM sockets
  • Supports up to 256 GB DDR3 ECC Registered memory (RDIMM)
  • Supports up to 64 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type
  • 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage
  • 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C602 Chipset
SATA
  • Via Cable for SATA controller
  • SATA 3.0 (6Gbps) with RAID 0, 1
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450 BMC
Network Controllers
  • Intel i350 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
  • Matrox G200eW

Input / Output
Serial ATA
  • 2x SATA 3.0 ports (6Gbps)
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 4x USB 2.0 ports (2 rear, 2 via header)
VGA
  • 1x VGA port
Serial Port / Header
  • 1x Fast UART 16550 port (rear)
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-813LT-350CB

Dimensions
Width
  • 17.2" (437mm)
Height
  • 1.7" (43mm)
Depth
  • 25.6" (650mm)
Gross Weight
  • 40 lbs (18.14kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • HDD activity LED
  • 2x Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots
PCI-Express
  • 1x PCI-E 3.0 x16 Full-height, Half-length

Drive Bays
Hot-swap
  • 2x 3.5" Hot-swap 3.5" SATA HDD trays

Backplane
1x 1U SATA backplane, 2 ports

System Cooling
Fans
  • 2x 10cm PWM blower fans

Power Supply
350W AC power supply w/ PFC
AC Voltage
  • 100-240 V, 50-60 Hz, 4.2-1.8 Amp
+5V
  • 18 Amp
+5V standby
  • 3 Amp
+12V
  • 29 Amp
+3.3V
  • 15 Amp
Certification
  Gold Certified


System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

A 1U Supermicro SuperServer based on 2x E5 2600 range of processors, the Supermicro SuperServer 6017R-TDLF | SYS-6017R-TDLF is configurable with up to 2x Hot-Swap Drives drive bays, and designed for optimal performance with 8x 1600MHZ DDR3 memory sockets .

The Supermicro SuperServer 6017R-TDLF | SYS-6017R-TDLF supports the Xeon E5 2600 Series Processors family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 6017R-TDLF | SYS-6017R-TDLF boasts 1 PCI-Express slots for expandability, and as with all of our servers it

--split--

can be fully customised online

Supermicro SuperServer 6017R-TDLF | SYS-6017R-TDLF Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: E5 2600
  • Range: Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 256GB
  • --split--
