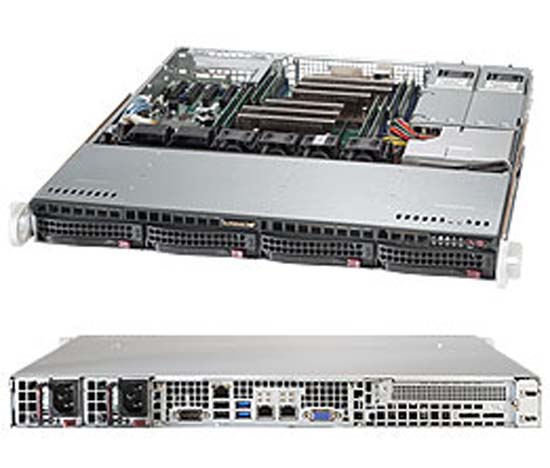

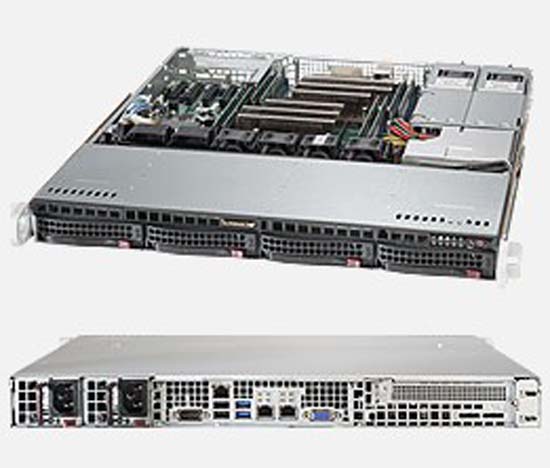

Supermicro SuperServer 6018R-MTR | SYS-6018R-MTR®

Configure a Supermicro SuperServer 6018R-MTR | SYS-6018R-MTR

  • Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3 family; QPI up to 9.6GT/s
  • Up to 512GB ECC DDR4, up to 2133MHz; 8x DIMM sockets
  • 1x PCI-E 3.0 x8 FHHL Expansion slot
  • Intel i210 Dual port Gigabit Ethernet
  • IPMI 2.0 + KVM with Dedicated LAN
  • 4x 3.5" Hot-swap SATA3 HDD Bays
  • I/O ports: 2x SuperDOM, 1x VGA, 1x COM, 2x USB 3.0, 2x USB 2.0
  • 400W Redundant Power Supplies Gold Level Certified

Configure From £1,095.15  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice.

Supermicro SuperServer 6018R-MTR | SYS-6018R-MTR Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.


Product SKUs
SYS-6018R-MTR
  • SuperServer 6018R-MTR (Black)

Motherboard

Super X10DRL-i

Processor/Cache
CPU
  • Intel Xeon processor E5-2600 v3 family (up to 135W TDP **)
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 18 Cores / Up to 45MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note ** Please contact your Supermicro sales representative for additional details.

System Memory
Memory Capacity
  • 8x 288-pin DDR4 DIMM sockets
  • Up to 512GB ECC LRDIMM, 256GB ECC RDIMM
Memory Type
  • 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel C612 Express chipset
SATA
  • I-SATA 4 & I-SATA 5 support SATA DOM
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel i210 Gigabit Ethernet controller
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Video
  • ASPEED AST2400 BMC

Input / Output
SATA
  • 4x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 ports (rear)
  • 2x USB 2.0 ports (rear)
  • 1x Type A
Video
  • 1x VGA port
Serial Port / Header
  • 1x Fast UART 16550 port / 1 Header
DOM
  • 2x SuperDOM (Disk on Module) ports
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-813MFTQ-R400CB

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 1.7" (43mm)
Depth
  • 19.8" (503mm)
Gross Weight
  • 38 lbs (17.24kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • HDD activity LED
  • 2x Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots
PCI-Express
  • 1x PCI-E 3.0 x8 Full-height Half-length

Drive Bays
Hot-swap
  • 4x 3.5" Hot-swap SATA HDD trays

Backplane
1U SAS/SATA HDD Backplane

System Cooling
Fans
  • 5x 4cm 17.5K RPM PWM fans

Power Supply
400W (1+1) Redundant SuperCompact Short-depth AC-DC Gold-level power supply with PMBus and I2C
AC Input
  • 400W: 100-240 V, 50-60 Hz, 6-3 Amp
DC Output
+5V standby
  • 3 Amp
DC Output
+12V
  • 33 Amp
With Power Distributor
  • +5V: 25 Amp
  • +3.3V: 25 Amp
  • -12V: 0.6 Amp

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

A 1U Supermicro SuperServer based on 2x Intel E5 2600 v4 range of processors, the Supermicro SuperServer 6018R-MTR | SYS-6018R-MTR is configurable with up to 4x Hot-Swap Drives drive bays, and designed for optimal performance with 24x DDR4 memory sockets .

The Supermicro SuperServer 6018R-MTR | SYS-6018R-MTR supports the Intel Xeon E5 2600 v4 Series Processors family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 6018R-MTR | SYS-6018R-MTR boasts 2 PCI-Express slots for expandability, and as with all of our servers it

--split--

can be fully customised online

Supermicro SuperServer 6018R-MTR | SYS-6018R-MTR Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: E5 2600 v4
  • Range: Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 1.5TB
