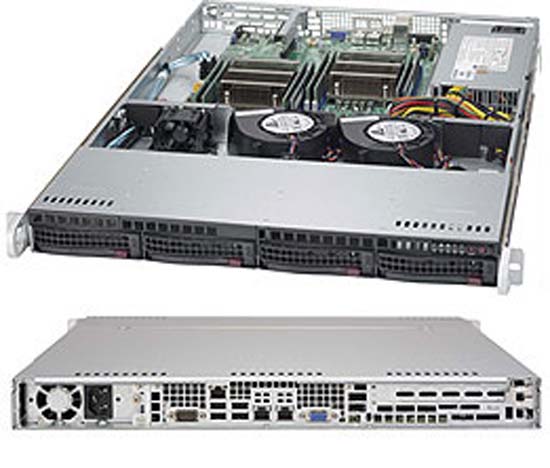

Supermicro SuperServer 6018R-TD | SYS-6018R-TD®

Configure a Supermicro SuperServer 6018R-TD | SYS-6018R-TD

  • Data Center Optimized
  • Short Depth
  • Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s
  • Up to 1TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 8x DIMM slots
  • 1x PCI-E 3.0 x8 (FHHL) slot
  • 4x 3.5" Hot-swap SATA3 Drive Bays
  • Intel i350 Dual-Port 1GbE LAN
  • I/O ports: 1x VGA, 1x COM, 4x USB 2.0
  • 480W High-Efficiency Power Supply Platinum Level Certified
  • 2x SuperDOM (Disk on Module) ports
  • IPMI 2.0 + KVM with Dedicated LAN

Configure From £943.09  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice.

Supermicro SuperServer 6018R-TD | SYS-6018R-TD Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.


Product SKUs
SYS-6018R-TD
  • SuperServer 6018R-TD (Black)

Motherboard

Super X10DRD-L

Processor/Cache
CPU
  • Intel Xeon processor E5-2600 v4â / v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Coresâ  / Up to 55MBâ  Cache
System Bus
  • QPI up to 9.6 GT/s
Note â  BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 8x 288-pin DDR4 DIMM slots
  • Up to 1TBâ  ECC 3DS LRDIMM, 512 ECC RDIMM
Memory Type
  • 2400â /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel C612 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel i350 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Video
  • ASPEED AST2400 BMC

Input / Output
SATA
  • 6x SATA3 (6Gbps) ports
  • I-SATA 4 & I-SATA 5 support SATA DOM
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 7x USB 2.0 ports
    (4 rear, 2 headers, 1 Type A)
Video
  • 1x VGA port
Serial Port / Header
  • 2x COM ports (1 rear, 1 header)
DOM
  • 2x SuperDOM (Disk on Module) ports

Management
Software
  • IPMI 2.0
  • Intel Node Manager
  • SuperDoctor 5
  • SSM
  • SPM
  • SUM
  • Watch Dog
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-813T-441CB

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 1.7" (43mm)
Depth
  • 25.6" (650mm)
Package
  • 23.5" (W) x 8.5" (H) x 33.7" (L)
Gross Weight
  • 36 lbs (16.33 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • HDD activity LED
  • 2x Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots
PCI-Express
  • 1x PCI-E 3.0 x8 (FHHL) slot

Drive Bays
Hot-swap
  • 4x 3.5" Hot-swap SATA3 Drive Bays

Peripheral Bays
DVD-ROM
  • 1x Slim DVD-ROM drive (optional)

Backplane
SAS2/SATA3 Backplane

System Cooling
Fans
  • 2x blowers + 1x 4cm fan with optimal fan speed control

Power Supply
440W/480W High-Efficiency Power Supply w/PMBus 1.2, I2C, and PFC
AC Input
  • 100-140V, 50-60Hz, 5.5-4A
  • 180-240V, 50-60Hz, 3.5-2.5A
DC Output
  • +3.3V: 15A
  • +5V: 18A
  • +5V standby: 3A
  • +12V:
           35.8A at 100-140Vac
           39.1A at 180-240Vac
Certification   Platinum Certified


System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

A 1U Supermicro SuperServer based on 2x E5 2600 v4 range of processors, the Supermicro SuperServer 6018R-TD | SYS-6018R-TD is configurable with up to 4x Hot-Swap Drives drive bays, and designed for optimal performance with 8x DDR4 memory sockets .

The Supermicro SuperServer 6018R-TD | SYS-6018R-TD supports the Xeon E5 2600 v4 Series Processors family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 6018R-TD | SYS-6018R-TD boasts 1 PCI-Express slots for expandability, and as with all of our servers it can be

--split--

fully customised online

Supermicro SuperServer 6018R-TD | SYS-6018R-TD Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: E5 2600 v4
  • Range: Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 512GB
  • --split--
