Perfect for Ultra High-Performance computing the CyberServe E5 4600 range of server solutions deliver the ultimate in processing performance for high intensity applications such as virtualisation and scientific servers.
Configurable with up to 2TB of DDR3 RAM and 48 processing cores in a single server solution.
Xeon E5 4600 Quad Processor Servers superseded by Xeon E Processor Servers
The Xeon E5 4600 Quad Processor Servers have been superseded by the new range of Xeon E Processor Servers. To view this new range please click below.

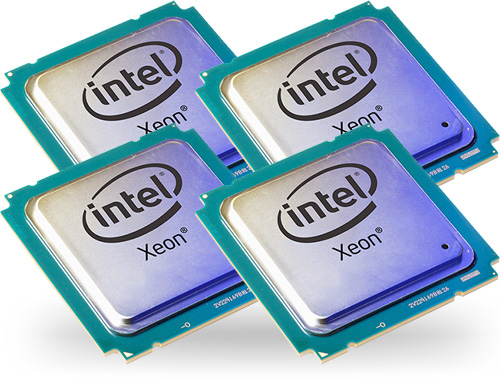

The Broadberry CyberServe XE5-4600® range of rackmount server solutions based on quad Intel Xeon E5 4600® processors boast up to 4 processors per server, that's 48 cores, 96 threads with 120mb of cache. These enterprise-class servers are great for the demanding processor and RAM intensive applications such as scientific simulation, weather modeling, financial analysis and virtualisation environments.
Intel Turbo Boost Technology 2.04 automatically increases processor frequencies to take advantage of power and thermal headroom for faster performance for peak workloads. Intel Advanced Vector Extensions (Intel AVX) provides new instructions that can deliver significant performance gains for applications that rely on floating point operations. Intel Integrated I/O delivers better bandwidth by integrating PCI Express 3.0 (PCIe 3.0) on the processor die to reduce latency
Based on quad Intel Xeon E5 4600 processors and configurable with up to 2TB of RAM and 32 high-performance processing cores, Broadberry CyberServe XE5-4600® range of server solutions are ideal for these high intensity applications:
From virtualisation and cloud computing solutions to design automation or real-time financial transactions, you'll be delighted by better than ever performance of the CyberServe XE5-4600® series, no matter what tasks you face.
Your investment in industry standard Intel technology combined with our latest server technology will future-proof your data center with infrastructure that grows with your business.
| Processor Number | # of Cores / # of Threads | Clock Speed | Cache | Intel Turbo Boost Technology | Intel Hyper-Threading Technology |
|---|---|---|---|---|---|
| Intel Xeon E5-4657LV2 based Servers | 12 / 24 | 2.40 GHz | 30.0 MB | 2.0 | |
| Intel Xeon E5-4650V2 based Servers | 10 / 20 | 2.40 GHz | 25.0 MB | 2.0 | |
| Intel Xeon E5-4640V2 based Servers | 10 / 20 | 2.20 GHz | 20.0 MB | 2.0 | |
| Intel Xeon E5-4627V2 based Servers | 8 / 8 | 3.30 GHz | 16.0 MB | 2.0 | |
| Intel Xeon E5-4620V2 based Servers | 8 / 16 | 2.60 GHz | 20.0 MB | 2.0 | |
| Intel Xeon E5-4610V2 based Servers | 8 / 16 | 2.30 GHz | 16.0 MB | 2.0 | |
| Intel Xeon E5-4607V2 based Servers | 6 / 12 | 2.60 GHz | 15.0 MB | ||
| Intel Xeon E5-4603V2 based Servers | 4 / 8 | 2.20 GHz | 10.0 MB |
The Xeon E5-4600 v2 range of processors also provide advanced security features, including Intel Advanced Encryption Standard New Instructions to accelerate and strengthen encryption for faster and more secure online transactions and improved data protection.
Intel Trusted Execution Technology (Intel TXT) provides hardware-based resistance to software attacks that occur before the virtual machine boots.
Historically speaking, dual socket servers such as the CyberServe XE5-2600® range have provided price/performance, energy efficiency and density advantages to quad processor servers, particularly for smaller workloads.
This may not be the case any longer, with the Broadberry CyberServe XE5-4600® range, based on Intel's Xeon E5-4600 V2 range of processors, data-centers have a cost-effective way to manage server sprawl by consolidating workloads, improving energy-efficiency, increasing performance, and providing dynamic capacity to handle larger workloads. The benefits of the new CyberServe XE5-4600® range provide our customers with a great way to avoid mid-cycle refreshes and the need to deploy more physical servers.
The CyberServe XE5-4600® range of servers, based on the Intel Xeon E5-4600 v2 family of processors boasts double the processor memory (48 DIMMs supporting up to 2TB) and I/0 for maximum capacity over E5-2600 processors.
This extra capacity results in substantial performance gains to handle large workloads and dynamically respond to unpredictable demand spikes better. The ability to do more with fewer servers obviously provides density and consolidation advantages, translating into better TCO.
For high performance computing applications, the CyberServe XE5-4600® server range based on the Intel Xeon E5 4600 family of processors can generate up to double the floating point operations per second (FLOPS) for processor intensive technical applications compared to the previous Intel Xeon 5600 series processor.
Quad socket servers such as the Broadberry CyberServe XE5-4600® range handle larger virtual machines and provide better VM consolidation than dual socket servers. With larger memory capacities and 4 CPU's, the CyberServe XE5-4600® range enables more VMs per watt and scale more consistently when unexpected workload spikes occur.
A CyberServe XE5-4600® server, based on the E5-4600 v2 processor family delivers a 1.7x improvement, making the CyberServe XE5-4600 range of rack servers the obvious choice for HPC applications where the primary purchase criteria is pure floating point performance.
| Dual Processor Server | vs | Quad Processor Server | Benefit |
|---|---|---|---|
| Configured with 2x 130W TDP Intel Xeon processor E5-2680 | Configured with 4x 130W TDP Intel Xeon processor E5-4650 | 1.88x performance advantage |
4600 Servers Advantages of 4-Socket ServersBroadberry CyberServe XE5-4600® servers represent clear benefits to moving up to 4-socket servers. Based on the new range of Intel Xeon E5-4600 processors, the CyberServe XE5-4600® range provides up to 1.88x greater performance and up to 52% advantage on Total Cost of Ownership over a 4 year period compared to equivalent CyberServe XE5-2600 servers with 2 processor sockets.
This performance increase is even better highlighted when compared to previous Xeon 5600 based servers, delivering 3.8x better performance, making the Broadberry CyberServe XE5-4600® range of quad processor servers a clear choice for data centres looking for ways to improve performance, reduce costs, and make the maximum use of their floor space when upgrading hardware.
Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.
Ready for the most demanding HPC applications, the Broadberry CyberServe XE5-4600® range can be configured with up to 2TB of memory.
Designed for the most demanding tasks, the quad socket range of CyberServe XE5-4600® servers support the latest Intel Xeon® processor E5-4600
Powered by the latest Intel Xeon E5 4600 v2 family of processors, the Broadberry CyberServe XE5 4600 range boosts performance by up to 50% over previous generation Xeons.
The Broadberry CyberServe XE5-4600® range has been built for the most demanding high performance computing, such as weather modelling, financial analysis and simulation
The Broadberry CyberServe XE5-4600® range of rack-mount servers intelligently deliver up to 45% more performance per watt to the CPU, increasing computing power whilst maintaining maximum energy efficiency.
All Broadberry CyberServe XE5-4600® rack servers are compatible with iPMI functionality, enabling complete control and management of your server through IP.
Boasting Intel Integrated I/0 on the processor, Broadberry CyberServe XE5-4600® servers accelerate data availability to the processing cores, reducing latency by up to 30%.
All components in the Broadberry CyberServe XE5-4600® range are sourced from leading manufacturers who take reliability as seriously as we do.
Our Rigorous TestingBefore leaving our UK workshop, all Broadberry server and storage solutions undergo a rigorous 48 hour testing procedure. This, along with the high-quality industry leading components ensures all of our server and storage solutions meet the strictest quality guidelines demanded from us.
Un-Equaled FlexibilityOur main objective is to offer great value, high-quality server and storage solutions, we understand that every company has different requirements and as such are able to offer un-equaled flexibility in designing custom server and storage solutions to meet our clients' needs.
We have established ourselves as one of the biggest storage providers in the UK, and since 1989 supplied our server and storage solutions to the world's biggest brands. Our customers include:
