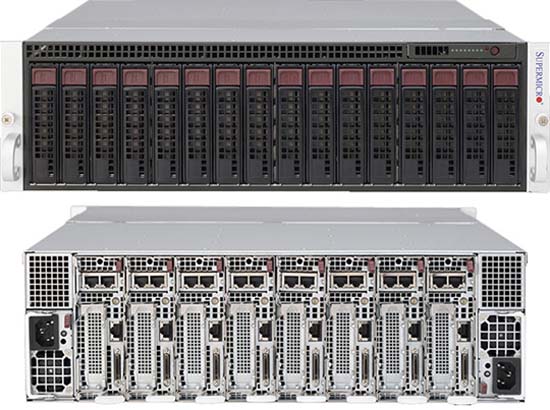

Broadberry MicroCloud Server 5038MR-H8TRF®

Configure a High-Density Broadberry MicroCloud Server Server 5038MR-H8TRF

  • 8x Intel Xeon E5-2600 v3 Server Nodes
  • 1620W High-efficiency Redundant Platinum Level Power Supplies
  • Supports up to 16x SATA2 Hard Drives
  • Powered By 8 Intel Xeon E5 2600 v4 Series Processors Processors
  • Supports up to 32 modules of DDR4 ECC Registered Memory
  • 8x PCI Express Expansion Slots
  • Configurable with up to 2TB Server Memory

Configure From £6,820.00  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice.

Broadberry MicroCloud Server 5038MR-H8TRF Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Trusted CyberServe Server Platform

The Broadberry range of CyberServe® rackmount are trusted as the server of choice for thousands of companies from SMBs to enterprise's across the globe.

Dual Xeon E5 2600 v4 Processor

Designed for optimal performance, the dual-processor Broadberry MicroCloud Server 5038MR-H8TRF supports the latest format Intel Xeon® processor E5-2600 v4

Boost Performance by up to 50%

Powered by the latest Intel Xeon E5 2600 v4 family of Processors, the Broadberry MicroCloud Server 5038MR-H8TRF boosts performance by up to 50% over previous generation Xeons.

Reduce I/0 Network Latency

Boasting Intel Integrated I/0 on the processor, the Broadberry MicroCloud Server 5038MR-H8TRF accelerates data availability to the processing cores, reducing latency by up to 30%.

Increased Server Energy Efficiency

The Broadberry MicroCloud Server 5038MR-H8TRF rackmount server intelligently delivers up to 45% more performance per watt to the CPU, increasing computing power whilst maintaining maximum energy efficiency.


Product SKUs
SuperServer
  • SYS-5038MR-H8TRF (Black)

Motherboard
Motherboard
  • MBD-X10SRD-F

Processor
CPU
  • Intel Xeon processor E5-2600 v3 family (up to 145W TDP **)
  • Single Socket R3 (LGA 2011)
Core / Cache
  • Up to 18 Cores / Up to 45MB Cache
Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support

System Memory (per node)
Memory Capacity
  • 4x 288-pin DDR4 DIMM slots
  • Up to 256GB DDR4 ECC LRDIMM
  • Up to 128GB DDR4 ECC RDIMM
  • 4 DIMM slots
Memory Type
  • 2133/1600/1333MHz ECC DDR4, 288-pin gold-plated DIMMs
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices (per node)
Chipset
  • Intel C612 chipset
SATA
  • 1x SATA DOM
  • SATA 3.0 (6Gbps) with RAID 0, 1
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM over LAN support
  • Aspeed AST2400 BMC
Headers
  • 1x USB header & 1 Type A USB, TPM ready
Graphics
  • Aspeed AST2400 BMC

Network Devices (per node)
MicroLP NIC
  • Intel i350, 2x Gigabit LAN ports
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Intel I/OAT 3 support for fast, scaleable, and reliable networking
  • VMDq support for better performance of virtualization

Input / Output (per node)
Serial ATA
  • 2x SATA 3.0 ports (6Gbps)
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
KVM
  • 1x VGA, 1x COM, and 2x USB 2.0 (with KVM dongle) ports

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • RTC (Real Time Clock) Wakeup

Rear Window (each node)
Switch
  • Power / UID
Chassis
Form Factor
  • 3U
Model
  • CSE-938BH-R1620B

Dimensions
Height
  • 5.21" (132.5 mm)
Width
  • 17.26" (438.4 mm)
Depth
  • 23.2" (589 mm)
Package
  • 11.65" (H) x 26.26" (W) x 34" (D)
Weight
  • Net Weight: 62.2 lbs (28.21 kg)
  • Gross Weight: 88 lbs (39.92 kg)
Color
  • Black

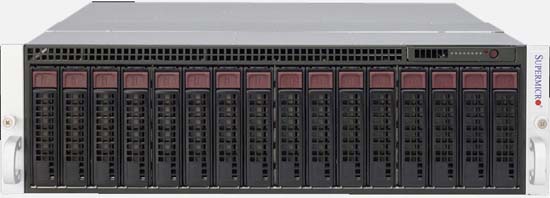

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED
  • Node status LED

Expansion Slots (per node)
PCI-Express
  • 1 (x8) PCI-E 3.0 Low-profile slot
    MicroLP Adapter Matrix (Networking options)

Drive Bays (per node)
Hot-swap
  • 2x 3.5" hot-swap SATA3 (6Gbps) HDDs per node; up to 16 HDDs total
  • Enterprise SATA HDD only recommended

System Cooling
Fans
  • 4x 8cm 11K RPM, 4-pin PWM cooling fans

Power Supply
1620W high-efficiency redundant power supply w/ PMBus
AC Input
  • 1000W Output @ 100-120V, 12-10A, 50-60Hz
  • 1200W Output @ 120-140V, 12-10A, 50-60Hz
  • 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output
  • 1000W: +12V/84A; +5Vsb/4A
  • 1200W: +12V/100A; +5Vsb/4A
  • 1620W: +12V/150A; +5Vsb/4A
Certification     Platinum Certified


PC Health Monitoring
CPU
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
  • Cooling zone
Temperature
  • Monitoring for CPU and chassis environment

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

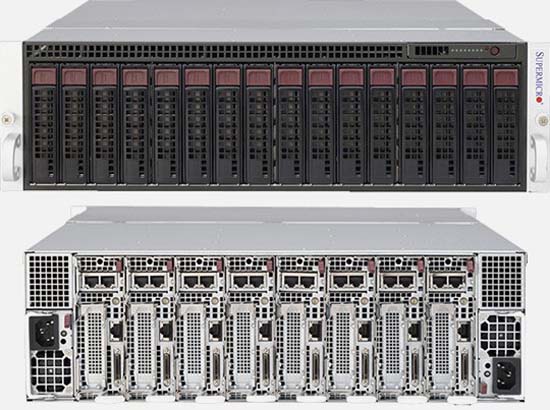

The Broadberry MicroCloud Server 5038MR-H8TRF is a 3U rackmount server configurable with 8x Xeon E5 2600v4 Dual Processor series range of processors. Built using the latest enterprise-class server technology, the Broadberry MicroCloud Server 5038MR-H8TRF has 16x SATA Hot-Swap Drives and is ideal for those requiring a combination of high performance and density with its 32x DDR4 ECC Registered memory banks providing up to 2TB of high-performance server memory. The Broadberry MicroCloud Server 5038MR-H8TRF boasts as just a few of its core features.

Powered by Intel Xeon E5 2600 v4 Processors

Powered by 2x Intel Xeon E5-2600 v4 processors, the boasts the latest processor technologies you'd expect from an enterprise-class server, including accelerating critical workloads such as database transactions and vector operations and more.

Key Features

  • High Performance for the Broadest Range of Applications and Environment
  • Advanced multi-core, multi-threaded processing (Up to 22 cores and 44 threads per socket)
  • Larger cache and faster memory
    • Up to 55 MB of last-level cache (LLC) for fast access to frequently used data
    • Up to 24 DIMMs per two-socket server to support multiple data-hungry VMs
    • Faster maximum memory speeds than the previous generation (DDR4 2400 MHz versus 2133 MHz)
  • Higher performance for technical computing and multi-threaded applications
  • Industry-leading I/O performance
  • Industry-leading energy-efficiency

The powerful new Intel® Xeon® processor E5-2600 v4 product family offers versatility across diverse data centre workloads.

With the full line-up of Intel Xeon E5-2600 v4 processors to choose from, the can be configured with up to 44 high-performance processing cores or 88 hardware threads, making this power-house server the ideal choice for a wide range of business applications from virtualisation to high-performance computing.

These processors are designed to help IT address the ever-growing demand for increased performance, agility, operational efficiency, scale-on demand and security throughout their server, storage and network infrastructure while minimising their total cost of ownership.

If you're upgrading from the past generation of E5 processors (v3 range), you'll notice major advances in processor technology in the resulting in up to 47% faster performance than the previous generation of servers powered by the v3 range.

The new v4 range of processors offers extra cores, a smattering of architectural refinements and performance advancements such as up to 55MB of last-level cache, support for 2400MHz DDR4 memory and up to 2kb of data L1 cache per processing core.

The powered by Intel® Xeon® processor E5-2600 v4 product family offers enterprises, cloud service providers and telecommunication service provider's high performance and value, while accelerating their move toward the next-generation efficiencies of software defined infrastructure.

Built for Virtualisation

Configured with the E5-2600 v4 processor and offering plenty of high-performance memory, the is built for virtualisation.

Intel® Virtual Machine Control Structure (VMCS) shadowing extends root virtual machine monitor (VMM)-like privileges to a guest VMM to provide more flexible support for legacy code and deep security monitoring. Additional virtualisation enhancements enable fewer and faster transitions to the VMM through Posted Interrupts and other innovations, so more compute cycles can be devoted to virtual machine performance.

Support for Page Modification Logging has also been added to enable high-end availability for virtual machines while reducing performance overhead.

Process Data Faster with DDR4 Memory

Configurable with DDR4 memory, the Broadberry MicroCloud Server 5038MR-H8TRF uses the latest enterprise-grade memory technology which offers 50% more bandwidth and 40% better energy efficiency than servers

--split--

configured with DDR3 ram, resulting in more speed, more bandwidth and better efficiency computing.

Typically a server's greatest limitation is memory, especially in the memory-dependant applications the Broadberry MicroCloud Server 5038MR-H8TRF has been designed to excel in such as cloud-computing, virtualisation and HPC. The Broadberry MicroCloud Server 5038MR-H8TRF overcomes this traditional problem by doubling memory capacity of servers built on DDR3 memory in the same amount of DIMM slots making the Broadberry MicroCloud Server 5038MR-H8TRF a super-dense server platform ready to perform in the most demanding applications.

DDR4 memory also builds on the Broadberry MicroCloud Server 5038MR-H8TRF green credentials as power savings reach up to 40% over older generation memory.

The added benefit of hot-swap hard drives means that the Broadberry MicroCloud Server 5038MR-H8TRF can have any of its 16 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted. The added benefit of hot-swap hard drives means that the Broadberry MicroCloud Server 5038MR-H8TRF can have any of its 16 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.

Storage Technology

The Broadberry MicroCloud Server 5038MR-H8TRF supports 16x desktop and enterprise-class SATA hard drives, which represents the best cost per GB ratio storage technology.

The added benefit of hot-swap hard drives means that the Broadberry MicroCloud Server 5038MR-H8TRF can have any of its 16 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.

Configure for your Network

The Broadberry MicroCloud Server 5038MR-H8TRF’s ready to be deployed into your network environment with a wide-range of high-throughput connectivity options.

Configure the Broadberry MicroCloud Server 5038MR-H8TRF to match your application I/O demands and network infrastructure with up to 8x Intel 40GbE Ethernet Adapters , Solid State NVME PCI-Express Drives, Fibre Channel Adaptors, Intel 10GbE Ethernet Adapters , Gigabit Ethernet Adapters , Mellanox High Performance Network Interface Cards.

Whether your application demands the highest networking throughput, or you’re looking for a more modest enterprise-grade networking option such as Gb/E, the Broadberry MicroCloud Server 5038MR-H8TRF is totally customisable with a wide range of robust I/O connectivity options.

IPMI 2.0 & KVM over IP

Whereas most server manufacturers charge ongoing licence fees for IPMI, powerful, industry-standard server management is built in to the Broadberry MicroCloud Server 5038MR-H8TRF at no extra cost.

Using the dedicated 3rd LAN port or on-board Gigabit Ethernet ports, you can take full control of the server as though you were standing in front of it through your web browser from anywhere in the world through a pre-defined IP address and password.

Check the health of the Broadberry MicroCloud Server 5038MR-H8TRF components, fan speeds, temperatures, update firmware, check logs & set SMTP alerts for you pre-configure thresholds, and list the health of all your servers on one simple screen.

The Broadberry MicroCloud Server 5038MR-H8TRF IPMI feature also allows complete Keyboard Video and Mouse (KVM) control, and send CD/DVD Images over IP to install software & operating systems remotely.

Expand with PCI-Express Expansion

Configure the Broadberry MicroCloud Server 5038MR-H8TRF with up to 8x Intel 40GbE Ethernet Adapters , Solid State NVME PCI-Express Drives, Fibre Channel Adaptors, Intel 10GbE Ethernet Adapters , Gigabit Ethernet Adapters , Mellanox High Performance Network Interface Cards. With a wide range of enterprise-class PCI-Express add-on options available, the Broadberry MicroCloud Server 5038MR-H8TRF is a flexible platform for a wide-range of applications.

The added benefit of hot-swap hard drives means that the Broadberry MicroCloud Server 5038MR-H8TRF can have any of its 16 hot-swap hard drives removed during maintenance whilst the system is running completely

--split--

un-interrupted.
