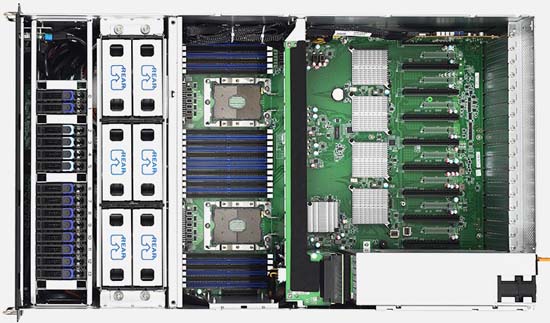

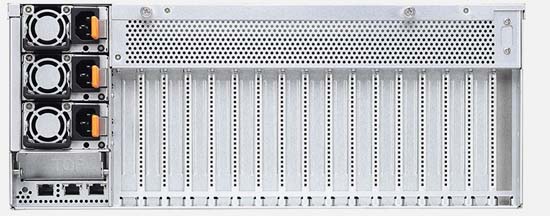

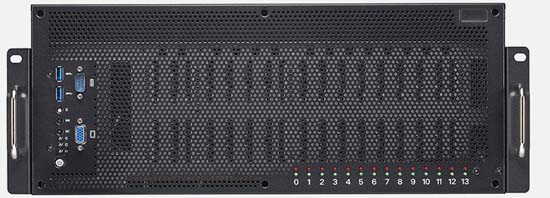

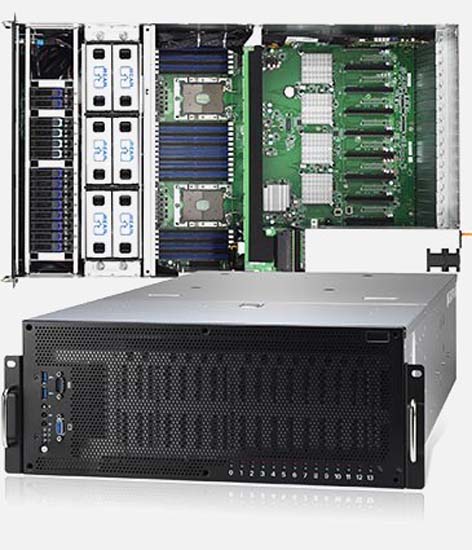

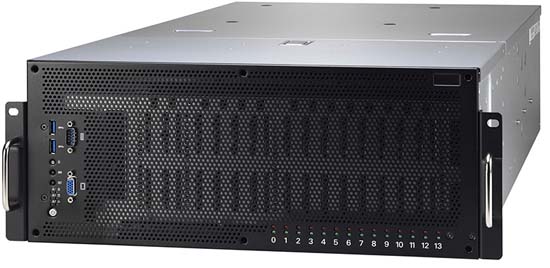

CyberServe Xeon SP - FT77DB7109®

8x PCIE x16, Redundant Power, Dual Gigabit, 14x Internal Drives, Dual Root Complex 4U 8GPU Server

  • Dimension (D x W x H) 770 x 438 x 176mm
  • 24 DIMM slots supporting up to 3TB DDR4 RAM
  • (8) Double-wide PCIe x16 slots for GPU card deployment
  • (1) PCIe x16 slot for high speed networking
  • LAN and internal storage mezzanine slots
  • AST2500 BMC with Redfish support
  • Supports up to 14x SATA2 and SAS 2.5" Hard Drives
  • Powered By 2 Intel Intel Xeon Scalable Processors Processors
  • Supports up to 24 modules of DDR4 ECC Registered Memory
  • 2x PCI Express Expansion Slots
  • Configurable with up to 1.5TB Server Memory

Configure From £4,953.28  or  Buy Now

Loading Configurator...

Prices for products are subject to change without notice.

CyberServe Xeon SP - FT77DB7109 Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Trusted CyberServe Server Platform

The Broadberry range of CyberServe® rackmount are trusted as the server of choice for thousands of companies from SMBs to enterprise's across the globe.

Fully VMWare Compatible

The CyberServe Xeon SP - FT77DB7109 has been carefully crafted to ensure full compatibility with VMWare, making it an ideal choice for use as a virtualisation server

Optional Hot-Swap Power Supply

The CyberServe Xeon SP - FT77DB7109 is configurable with a hot-swap redundant power supply, meaning minimal down-time for mission critical applications.

Small Form Factor Storage

The CyberServe Xeon SP - FT77DB7109 boasts high density storage and ultimate energy efficiency, catering for up to 14x High-Performance 2.5" SSD or Hard Drives

Dual Intel Xeon SP Processors

Designed for the most demanding tasks, the dual socket range of CyberServe Xeon SP® servers support the latest Intel Xeon® processor Scalable series

Perormance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, CyberServe Xeon SP servers deliver massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Designed for Cloud

The Broadberry CyberServe Xeon SP® range has been built from the ground up for private / hybrid cloud environments, clustering, virtualised infrastructure and database management.

Replaced QPI

The Broadberry CyberServe Xeon SP® range has a completely redesigned QPI system, producing up to 21% improvement in data efficiency as well as a 50% reduction in idle power.

With IPMI Remote Management

All Broadberry CyberServe Xeon SP® rack servers are compatible with iPMI functionality, enabling complete control and management of your server through IP.

Reduce I/0 Network Latency

Boasting Intel Integrated I/0 on the processor, Broadberry CyberServe Xeon SP® servers accelerate data availability to the processing cores, reducing latency by up to 30%.

Intel® AVX-512

Intel Advanced Vector Extensions 512, the latest x86 vector instruction set with up to two fused-multiply add units and other optimisations, accelerates performance for the most demanding computational tasks.

Intel® QuickAssist Technology

Improving performance across applications and platforms, Intel QAT enhances security and compression performance in cloud, networking, big data, and storage applications.


The CyberServe Xeon SP® range replaces InfiniBand technology with a newer, more advanced interconnect called Omni-Path, allowing for 100Gbps bandwidth with no loss of PCIe lanes.

The CyberServe Xeon SP - FT77DB7109 is a 4U rackmount server configurable with 2x Xeon Scalable Processor series range of processors. Built using the latest enterprise-class server technology, the CyberServe Xeon SP - FT77DB7109 has 14x 2.5" SATA Hot-Swap Drives and is ideal for those requiring a combination of high performance and density with its 24x DDR4 ECC Registered memory banks providing up to 1.5TB of high-performance server memory. The CyberServe Xeon SP - FT77DB7109 boasts VMware Compatible, Best Value and Redundant Power Supply Option as just a few of its core features.

The added benefit of hot-swap hard drives means that the CyberServe Xeon SP - FT77DB7109 can have any of its 14 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.

Comes Ready to Virtualise

VMWare compatibility ensures that the CyberServe Xeon SP - FT77DB7109 will run the latest VMware software with full compatibility when used as a virtualisation server.

The CyberServe Xeon SP - FT77DB7109 has been awarded the Broadberry 'Best Value' award. This is based on the system boasting very good all-round performance for its price.

Redundant Power

The Broadberry CyberServe range of enterprise-class rack servers features high efficiency power supplies with leading features such as Titanium level efficiency, digital switching control, super quiet operation, redundancy, DC inputs, FCC class B certification, remote monitoring with PMBus, support for GPUs/graphics cards and Broadberry's signature server level quality and reliability; in a variety of form factors and capacities.

CyberServe power supplies are designed for enterprise level applications where high quality and reliability are critical, and where the highest power efficiencies are required to reduce TCO.

With strong experience in the server systems market, Broadberry are experienced in testing and validating these power supplies in all relevant enterprise environments under all necessary operating conditions, compiling long operating records for multiple applications.

Storage Technology

The CyberServe Xeon SP - FT77DB7109 supports 14x 2.5" desktop and enterprise-class SATA hard drives, which represents the best cost per GB ratio storage technology.

Originally designed and utilised in mobile applications such as laptops and notebooks, 2.5" hard drives are becoming ever increasingly used in servers due to their lower power consumption and space-saving characteristics. The added benefit of hot-swap hard


drives means that the CyberServe Xeon SP - FT77DB7109 can have any of its 14 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.

Configure for your Network

The CyberServe Xeon SP - FT77DB7109’s ready to be deployed into your network environment with a wide-range of high-throughput connectivity options.

Configure the CyberServe Xeon SP - FT77DB7109 to match your application I/O demands and network infrastructure with up to 2x Gigabit Ethernet Adapters , Intel 10GbE Ethernet Adapters , Fibre Channel Adaptors, Solid State NVME PCI-Express Drives, Intel 40GbE Ethernet Adapters , Mellanox High Performance Network Interface Cards.

Whether your application demands the highest networking throughput, or you’re looking for a more modest enterprise-grade networking option such as Gb/E, the CyberServe Xeon SP - FT77DB7109 is totally customisable with a wide range of robust I/O connectivity options.

IPMI 2.0 & KVM over IP

Whereas most server manufacturers charge ongoing licence fees for IPMI, powerful, industry-standard server management is built in to the CyberServe Xeon SP - FT77DB7109 at no extra cost.

Using the dedicated 3rd LAN port or on-board Gigabit Ethernet ports, you can take full control of the server as though you were standing in front of it through your web browser from anywhere in the world through a pre-defined IP address and password.

Check the health of the CyberServe Xeon SP - FT77DB7109 components, fan speeds, temperatures, update firmware, check logs & set SMTP alerts for you pre-configure thresholds, and list the health of all your servers on one simple screen.

The CyberServe Xeon SP - FT77DB7109 IPMI feature also allows complete Keyboard Video and Mouse (KVM) control, and send CD/DVD Images over IP to install software & operating systems remotely.

Expand with PCI-Express Expansion

Configure the CyberServe Xeon SP - FT77DB7109 with up to 2x Gigabit Ethernet Adapters , Intel 10GbE Ethernet Adapters , Fibre Channel Adaptors, Solid State NVME PCI-Express Drives, Intel 40GbE Ethernet Adapters , Mellanox High Performance Network Interface Cards. With a wide range of enterprise-class PCI-Express add-on options available, the CyberServe Xeon SP - FT77DB7109 is a flexible platform for a wide-range of applications.

The added benefit of hot-swap hard drives means that the CyberServe Xeon SP - FT77DB7109 can have any of its 14 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.

Broadberry Price Guarantee

We're so confident in our great value solutions, If you find a cheaper genuine price for the same specifications elsewhere we'll match it.

In today’s climate we appreciate the importance of preserving working capital yet understand that businesses still need to invest in new technology. We are delighted to inform our customers that Finance is available from just £1000 + VAT via our Strategic Partner BlueStar.

Key Features
  • Terms from 2 – 5 years available
  • Tax advantages – Leasing is 100% tax allowable
  • Fast credit decisions – Credit approval typically secured within hours + eSign documents
  • Stage payment options – Ideal for phased installations. We can also fund the deposit
  • Cash flow – Preserve your working capital
  • Existing credit facilities remain unaffected
  • Flexibility – Upgrade, make additions or settle at any point during the term
  • Total solution finance – Finance the hardware, software and all delivered services
  • Finance Lease, Hire Purchase and Loans available
  • Leasing available to all limited businesses, including start-ups

You can finance the total solution including hardware, software and installation costs and BlueStar will be happy to advise you of the most suitable package for your organisation.

BlueStar’s leasing options have enabled our customers to spread the cost of a new solution typically over a 3 year period. All payments made on a lease can be offset against taxable profits which may improve tax efficiency. Leasing also provides a flexible upgrade path allowing our customers to add further equipment to their lease throughout the term.

Finance helps to remove cash flow concerns and allows our customers to acquire the right system for their business rather than what available cash reserves dictate. Information technology is an operating cost to your business, pay for the equipment as you use it and get an immediate return on your investment.

Do you need to replace outdated equipment but don’t have the budget to purchase today?

Call us today on 020 8997 6000 to find out how leasing can work for you. Finance is subject to status and available to businesses only.

The above figures have been provided by our finance partner Bluestar Leasing. All figures are indicative only, subject to VAT where applicable, final underwriting/credit approval, document administration fees, payments by direct debit and terms and conditions. The stipulated tax relief assumes a representative rate of 19% due to the scheduled corporation tax rate reductions over the coming years. For exact taxation benefits relevant to your business it is recommended that you seek professional financial advice from your accountant. Bluestar Leasing is a trading name of Blue Star Business Solutions Limited who are Authorised and Regulated by the Financial Conduct Authority. Available to Limitied Companies, PLCs, LLPs and Larger Partnerships (4 or more) only.

The Broadberry CyberServe SP® range of rackmount server solutions based on dual Intel Xeon® Scalable Processors boast up to 2 processors per server, that's 56 cores, 112 threads and 96 lanes of PCIe. These enterprise-class servers are great for a massive range of applications from business servers to the most demanding processor and RAM intensive applications such as database management and analytics, cloud environments and virtualised infrastructure.

CyberServe EPYC® Servers are Ideal for:

Based on the Intel Xeon Processor Scalable family and configurable with up to 768GB of DDR4 RAM and 28 high-performance processing cores per CPU, Broadberry CyberServe SP® range of server solutions are ideal for these applications:

  • Arificial Intelligence
  • Autonomous driving
  • Virtualised Infrastructure
  • Clustering Server

The Intel Xeon Scalable Processor Family improves upon previous generation Intel Xeon E5 and E7 V4 generations in just about every metric.

Models Explained:

Intel® Xeon® Bronze processors are performance optimized for small business and basic storage servers.


Intel® Xeon® Silver processors offer the hardware-enhanced performance and security required for data center compute, network, and storage optimized for mid-sized and growing IT organisations.


Intel® Xeon® Gold processors offer high performance, advanced reliability, and hardware-enhanced security optimized for demanding data center, hybrid-cloud compute, network, and storage workloads.


Intel® Xeon® Platinum processors offer the industry's best performance for mission-critical and hybrid cloud workloads, real-time analytics, machine learning, and artificial intelligence, with monumental leaps in I/O, memory, storage, and network technologies.

up to 8 Cores up to 12 Cores up to 22 Cores up to 28 Cores
up to 2 Sockets up to 2 Sockets up to 4 Sockets up to 8+ Sockets
up to 1.5TB up to 1.5TB up to 6TB up to 12TB

The CyberServe Xeon-SP range has been designed from the ground up for the latest industry advances for today's datacenter applications.

Powered by Intel Xeon Scalable Processors, the CyberServe Xeon-SP range of servers have the design flexibility to thrive across common applications and mission critical operations or to harness actionable insights from advanced real-time analytics and emerging imperatives like artificial intelligence, 5G, autonomous driving and more.

This agility enables you to seize new business opportunities from our increasingly data-fueled smart and connected world.

  • Skylake core microarchitecture, with data center specific enhancements
  • Intel AVX-512 with 32 DP flops per core
  • Data center optimized cache hierarchy -1MB L2 per core, non-inclusive L3
  • New mesh interconnect architecture
  • Enhanced memory subsystem
  • Modular IO with integrated devices
  • Intel Ultra Path Interconnect - (Intel UPI)
  • Intel Speed Shift Technology
  • Security & Virtualisation enhancements (MBE, PPK, MPX)
  • Optional Integrated Intel Omni-Path Fabric (Intel OPA)
Intel Xeon Processor E5-2600 v4 Intel Xeon Scalable Processor
Cores Per Socket Up to 22 Up to 28
Threads Per Socket Up to 44 threads Up to 56 threads
Last-level Cache (LLC) Up to 55 MB Up to 38.5 MB (non-inclusive)
QPI/UPI Speed (GT/s) 2x QPI channels @ 9.6 GT/s Up to 3x UPI @ 10.4 GT/s
PCIe* Lanes /Controllers /Speed(GT/s) 40 / 10 / PCIe 3.0 (2.5, 5. 8 (GT/s) 48 / 12 / PCIe 3.0 (2.5, 5,8 GT/s)
Memory Population 4 channels of up to 3 RDIMMs,
6 channels of up to 2 RDIMMs,
Max Memory Speed Up to 2400 Up to 2666
TDP (W) 55W-145W 70W-205W

High-Performance, Enterprise-Class Supercomputing GPU-Accelerated for Finance, Oil & Gas, Science, and Engineering

Broadberry extends its technology lead in the GPU computing market using Supermicro's innovative GPU server architecture.

Supporting the latest nVidia Tesla, GTX and Intel Xeon Phi coprocessors, Broadberry GPU servers are configurable with up-to 8 GPU cards, with server options ranging from 1U rack servers to 4U / tower server options.

Boasting up to 768GB of EEC-Registered, DDR4 2133MHz memory, Broadberry's range of GPU servers are powered by the latest Intel Xeon E5 2600 v3 range of processors and include both 2.5" and 3.5" SATA/SAS storage options as well as high-efficiency redundant Platinum Level power supplies, dual Gigabit Ethernet or 10GbE LAN, and onboard BMC supporting IPMI 2.0 with media / KVM over dedicated LAN for smart server management.


  • Maximum Bandwidth: PCI-E 3.0 x16 for best I/O performance
  • Manageability: Server management & GPU status monitoring through IPMI 2.0
  • Reliability: Redundant power supplies & intelligent cooling control
  • Efficiency: Breakthrough system architecture to optimise TCO, with Platinum Level power supplies, advanced cooling, and high-end motherboard components

Features Tesla K80 Tesla K40 Titan X
GPU 2x Kepler GK210 1 Kepler GK110B 1x Maxwell
Peak double precision floating point performance 2.91 Tflops (GPU Boost Clocks) 1.87 Tflops (Base Clocks) 1.66 Tflops (GPU Boost Clocks) 1.43 Tflops (Base Clocks) 0.192 Tflops
Peak single precision floating point performance 8.74 Tflops (GPU Boost Clocks) 5.6 Tflops (Base Clocks) 5 Tflops (GPU Boost Clocks) 4.29 Tflops (Base Clocks) 6.2 Tflops
Memory bandwidth (ECC off) 480 GB/sec (240 GB/sec per GPU) 288 GB/sec 288.4 GB/sec
Memory size (GDDR5) 24 GB (12GB per GPU) 12 GB 12 GB
CUDA cores 4992 ( 2496 per GPU) 2880 3072

Although designed for use as a graphics card, the GeForce GTX Titan X card is reguarly used by many price-savvy customers as a GPU accelerator.

Boasting around the same amount of CUDA cores as Tesla cards, Titan X cards have more CUDA cores than the K40, the same amount of RAM, a higher clock speed and 2 DMA engines for bi-directional data copying - all for around 1/4 of the price of a Tesla K40.

GeForce Titan X Cards:
  • 3072 Cores
  • 12GB Ram
  • 336GB/s, 384-bit bus
  • Boost Clock: 1075MHz
  • Core Clock 1000MHz
  • 7GHz DDR5
  • 6.2 TFLOPS SP
What won't a Titan-X card do as well as a Tesla?
  • Poor double-precision performance
  • Produced by 3rd Party Companies - not nVidia
  • No ECC Memory Error Protection

Broadberry GPU Servers harness the processing power of nVidia Tesla graphics processing units for millions of applications such as image and video processing, computational biology and chemistry, fluid dynamics simulation, CT image reconstruction, seismic analysis, ray tracing, and much more.

As computing evolves, and processing moves from the CPU to co-processing between the CPU and GPU's NVIDIA invented the CUDA parallel computing architecture to harness the performance benefits.

Speak to Broadberry GPU computing experts to find out more.
