Supermicro SuperStorage 6049P-E1CR60L+ SSG-6049P-E1CR60L+

Optimised for Enterprise Server, HPC, Database Processing & Storage. 60x Hot-swap 3.5" SAS3/SATA3 Drive Bays, 2x PCI-E 3.0 x16 slots, 1x PCI-E 3.0 x8 slot, Redundant Power Option.

  • Ideal for - Corporate Database - Database Processing & Storage - Enterprise Server - HPC, Data Center - iSCSI SAN
  • Dual Socket P (LGA 3647) support 2nd Gen. Intel Xeon Scalable processors (Cascade Lake/Skylake)‡
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane™ DCPMM
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 SIOM card support (flexible networking) Note: must bundle with Network card

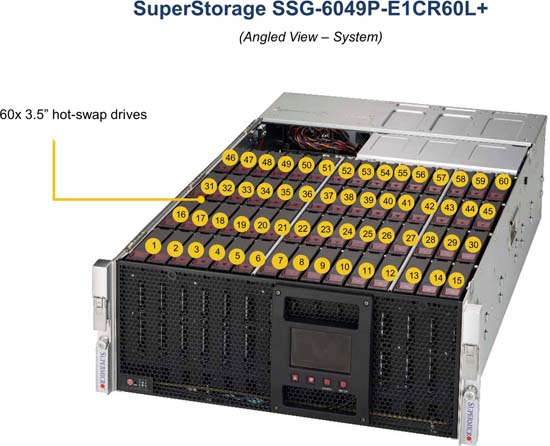

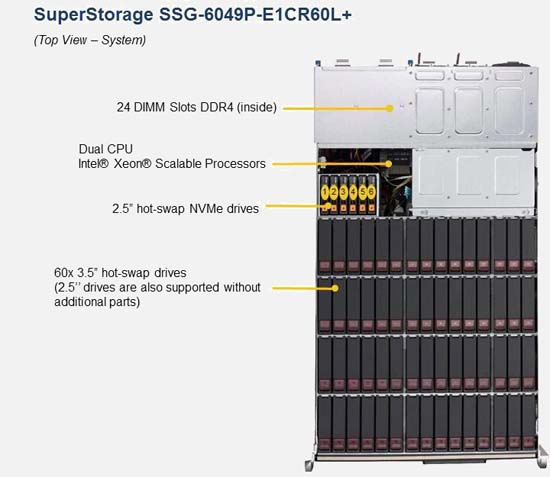

  • 60 Hot-swap 3.5" SAS3/SATA3 drive bays with SES3; 2 rear Hot-swap 2.5" drive bays
  • Broadcom 3616, IT mode, x16 SAS
  • Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 5 Hot-swap 8cm rear exhaust PWM fans
  • 2000W Redundant Power Supplies Titanium Level (96%)



Loading Configurator...

Prices for products are subject to change without notice.

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 6TB Of RAM

Equipable with up to an huge 6TB of RAM, which allows for quick and effective multi-tasking for even the most RAM intensive applications.

Optimised For High Performance Computing

Fully optimised for HPC, this server is excellent at deal with computationally-intensive applications.

Configure With Hot-Swap Drives

The Supermicro SSG-6049P-E1CR60L+ SuperStorage | 6049P-E1CR60L+ features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro SSG-6049P-E1CR60L+ SuperStorage | 6049P-E1CR60L+ with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.

Features SIOM Network Card

This server features a SIOM network card. This network card delivers high performance. This server is not vendor locked and features wide ranging hardware and software compatibility.


A 4U Supermicro SuperServer based on 2x Intel 2nd Gen Intel Xeon Scalable Processor (X11) range of processors, the Supermicro SSG-6049P-E1CR60L+ SuperStorage | 6049P-E1CR60L+ is configurable with up to 60x Hot-Swap Drives drive bays, and designed for optimal performance with 24x 3200Mhz DDR4 memory sockets .

The Supermicro SSG-6049P-E1CR60L+ SuperStorage | 6049P-E1CR60L+ supports the Intel Intel Xeon Scalable Processors 2nd Generation family in a high-density 4U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SSG-6049P-E1CR60L+ SuperStorage | 6049P-E1CR60L+ boasts 3 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SSG-6049P-E1CR60L+ SuperStorage | 6049P-E1CR60L+ Specs
  • Brand: Supermicro
  • U Size: 4U
  • Processor Family: 2nd Gen Intel Xeon Scalable Processor (X11)
  • Range: HPC Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 3.1TB
