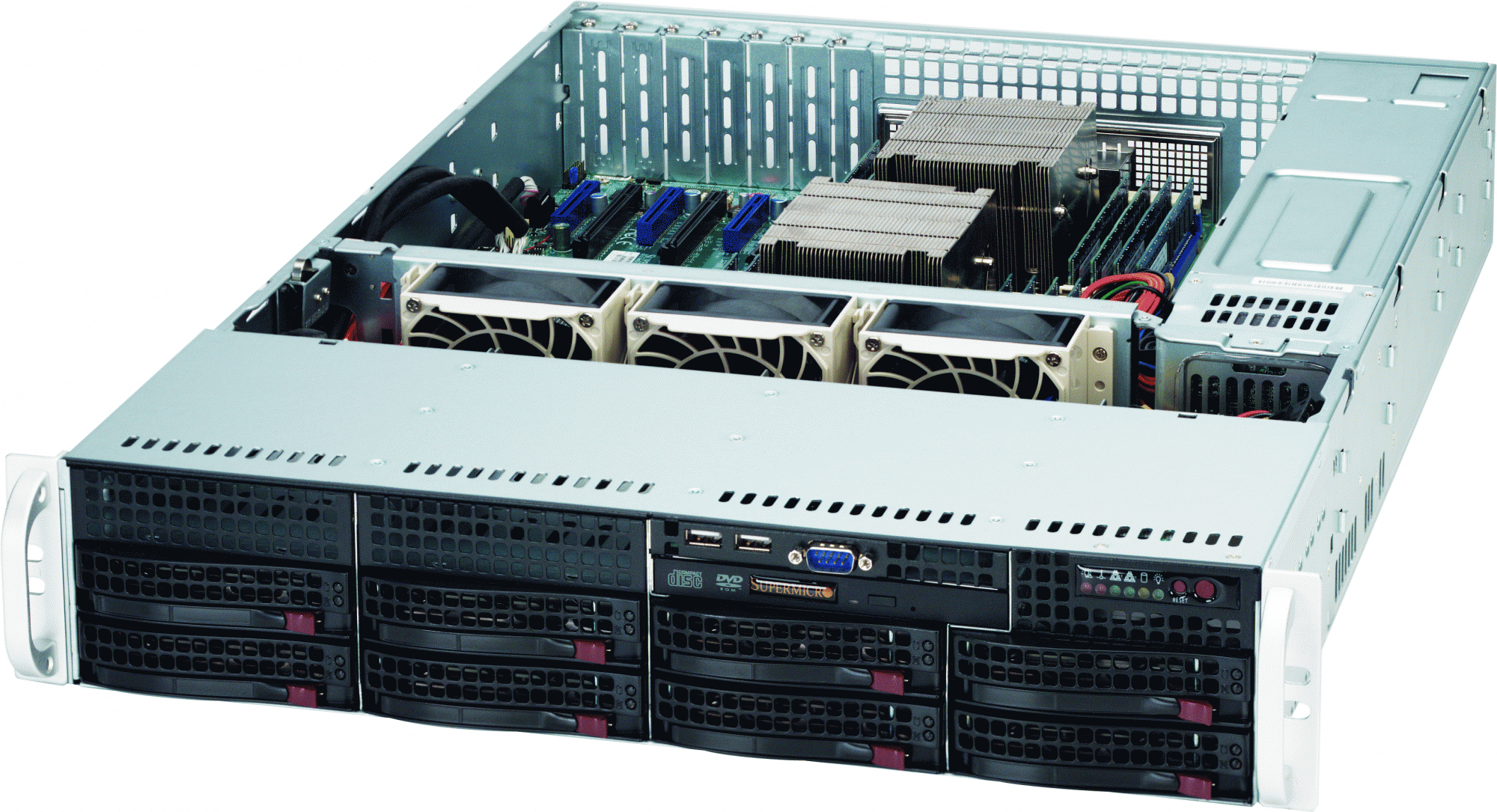

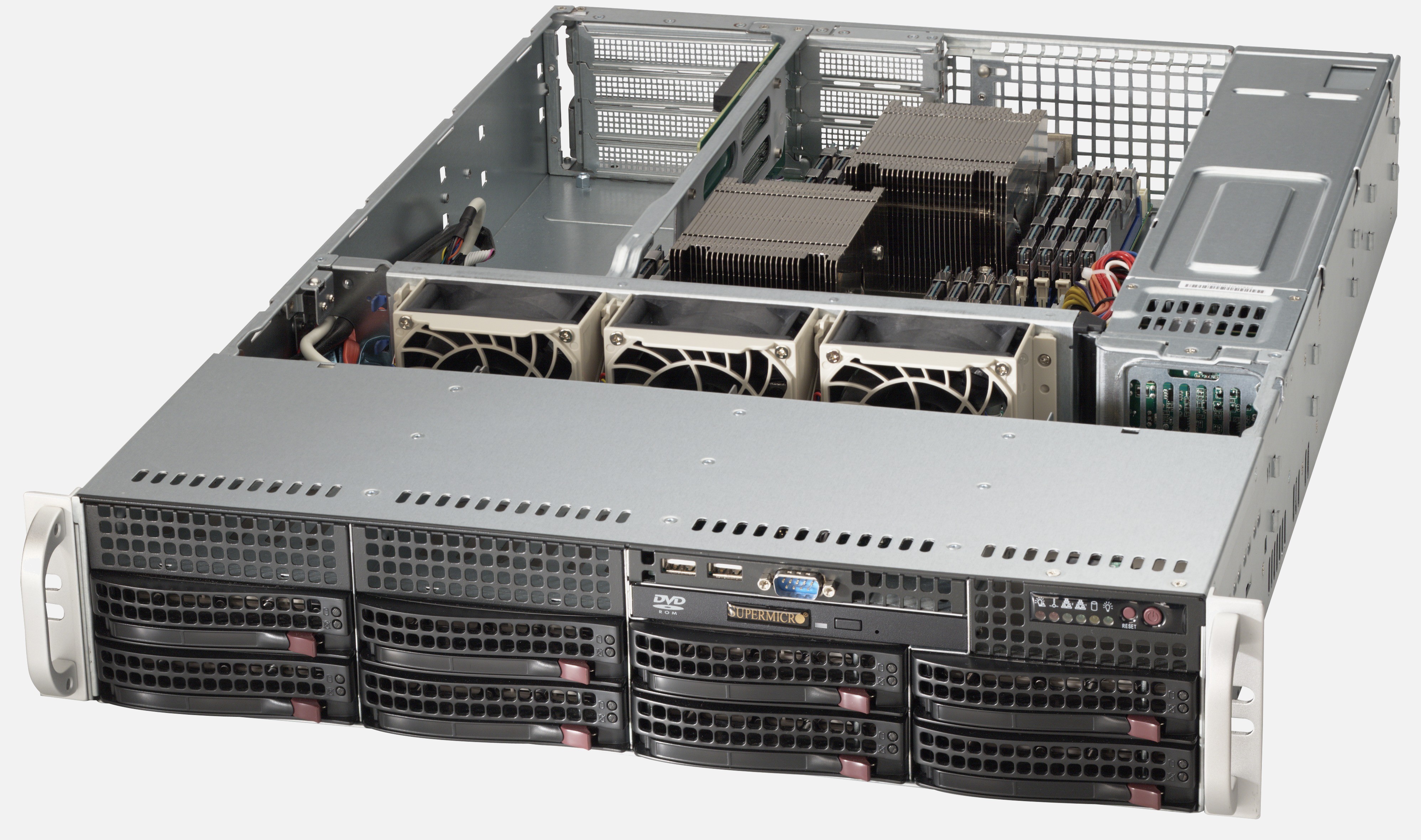

Supermicro SuperServer 6027R-3RF4+ | SYS-6027R-3RF4+®

Configure a Supermicro SuperServer 6027R-3RF4+ | SYS-6027R-3RF4+

  • Intel Xeon processor E5-2600 family; QPI up to 8GT/s
  • Up to 768GB DDR3 1600MHz ECC Registered DIMM; 24x DIMM sockets Depends on memory configuration
  • 4x PCI-E 3.0 x16 (low-profile) 1x PCI-E 3.0 x8 (low-profile) 1x PCI-E 3.0 x4 (in x8)
  • Intel i350 GbE Controller; 4x ports
  • 8x Hot-swap 3.5" SAS/SATA HDD Bays
  • 740W Redundant Power Supplies 80 PLUS, Platinum Level (94%)

Configure From £1,465.96  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice.

Supermicro SuperServer 6027R-3RF4+ | SYS-6027R-3RF4+ Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.


Product SKUs
SYS-6027R-3RF4+
  • SuperServer 6027R-3RF4+ (Black)

Motherboard

Super X9DR3-LN4F+

Processor/Cache
CPU
  • Intel Xeon processor E5-2600
    (up to 130W TDP)
  • Dual Socket R (LGA 2011)
Cache
  • Up to 20MB
System Bus
  • QPI up to 8 GT/s

System Memory
Memory Capacity
  • 24x 240-pin DDR3 DIMM sockets
  • Supports up to 768 GB DDR3 ECC Registered memory (RDIMM) in 24 DIMM sockets
  • Supports up to 128 GB DDR3 ECC Un-Buffered memory (UDIMM) in 24 DIMM sockets
Memory Type
  • 1600*/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage
  • 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C606 Chipset
SATA
  • Via Cable for SATA controller
  • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
  • SATA 3.0 6Gbps with RAID 0, 1, 5, 10
SAS
  • SAS from C606
  • RAID 0, 1, 10 support
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450 BMC
Network Controllers
  • Intel i350 Quad Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
  • Matrox G200eW

Input / Output
Serial ATA
  • 2x SATA 3.0 ports (6Gbps)
  • 4x SATA 2.0 ports (3Gbps)
SAS
  • 8x SAS ports
LAN
  • 4x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 9x USB 2.0 ports total
    (4x rear + 4x via header + 1x Type A)
VGA
  • 1x VGA port
Serial Port / Header
  • 1x Fast UART 16550 port / 1 Header
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-825TQ-R740LPB

Dimensions
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 25.5" (648mm)
Gross Weight
  • 69 lbs (31.2 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System info. LED:
    UID indicator, fan fail/System Overheat
  • Power fail LED

Expansion Slots
PCI-Express
  • 4x PCI-E 3.0 x16 (low-profile, full-length)
  • 1x PCI-E 3.0 x8 (low-profile, full-length)
  • 1x PCI-E 3.0 x4 (in x8)
    (low-profile, full-length)

Drive Bays
Hot-swap
  • 8x Hot-swap 3.5" SAS / SATA HDD trays

Peripheral Drives
DVD-ROM
  • Slim DVD-ROM drive (optional)

Backplane
1x SAS2 / SATA backplane

System Cooling
Fans
  • 3x 8cm 7k RPM middle fans

Power Supply with Power Distributor
740W (1+1) Redundant high-efficiency power supply with PMBus
AC Input
  • 100-240 V, 50-60 Hz, 9-3.5 Amp
DC Output
  •   4 Amp @ +5V standby
  •   61.7 Amp @ +12V
With Power Distributor
  • +5V: 30 Amp
  • +3.3V: 24 Amp
  • -12V: 0.6 Amp
Certification
  80 PLUS Platinum


System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

A 2U Supermicro SuperServer based on 2x E5 2600 range of processors, the Supermicro SuperServer 6027R-3RF4+ | SYS-6027R-3RF4+ is configurable with up to 8x Hot-Swap Drives drive bays, and designed for optimal performance with 24x 1600MHZ DDR3 memory sockets .

The Supermicro SuperServer 6027R-3RF4+ | SYS-6027R-3RF4+ supports the Xeon E5 2600 Series Processors family in a high-density 2U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 6027R-3RF4+ | SYS-6027R-3RF4+ boasts 6 PCI-Express slots for expandability, and as with all of our servers

--split--

it can be fully customised online

Supermicro SuperServer 6027R-3RF4+ | SYS-6027R-3RF4+ Specs
  • Brand: Supermicro
  • U Size: 2U
  • Processor Family: E5 2600
  • Range: Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 768GB
