Supermicro A+ Server 2123BT-HTR | AS -2123BT-HTR®

Configure a Supermicro A+ Server 2123BT-HTR | AS -2123BT-HTR

  • - Compute Intensive Application - HPC, Data Center, Enterprise Server - Hyperscale / Hyperconverged

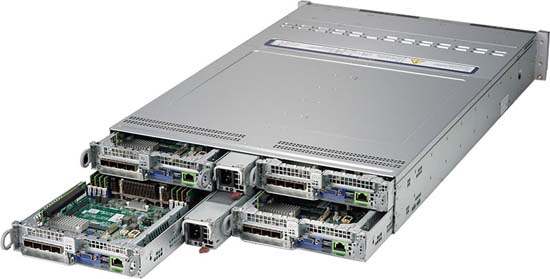

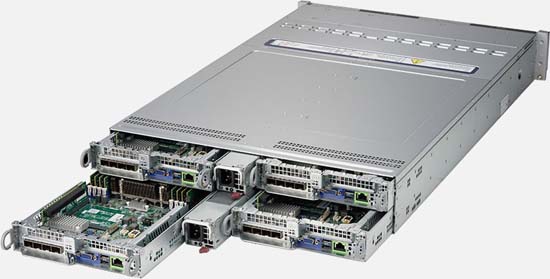

  • Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  • Dual AMD EPYC™ 7000-Series Processors
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM slots
  • 2 PCI-E 3.0 x16 (LP) slot; 1 SIOM card support (flexible networking) Note: must bundle with Network card
  • IPMI 2.0 + KVM with dedicated LAN
  • 1 M.2, 6 Hot-swap 2.5" SATA3 drive bays
  • Video via Aspeed AST2500 BMC
  • 2200W Redundant Power Supplies Titanium Level (96%)   (Full redundancy based on configuration   and application load)

Configure From £4,400.55  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice.

Supermicro A+ Server 2123BT-HTR | AS -2123BT-HTR Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Advanced Security

AMD EPYC processors feature an embedded security processor, meaning full memory encryption without the need for any changes to your applications.

Higher Performance

The AMD EPYC processor family is an excellent option for HPC and has been built to promote balancing the ratio of cores, memory and I/O bandwidth.

World Record Speed

The AMD EPYC x86 SoC has set new performance world records on SPEC CPU floating point bench marks.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 2TB Of RAM

Equipable with up to a tremendous 2TB of RAM, allowing for super fast and ultra efficient multi-tasking for even the most demanding of applications.

Optimised For High Performance Computing

Fully optimised for HPC, this server is excellent at deal with computationally-intensive applications.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro A+ Server 2123BT-HTR | AS -2123BT-HTR features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 2.5" Drives

The Supermicro A+ Server 2123BT-HTR | AS -2123BT-HTR can be configured with 2.5" drives, a more space efficient and low noise option. These drives also offer energy savings and increased flexibility.

Featuring Broadcom 3008 SAS3

Featuring a Broadcom 3008 SAS3 network adapter, this feature delivers performance and reliability. This server is free from vendor lock-in and features wide ranging hardware and software compatibility.


[[
Product SKUs
AS -2123BT-HTR
  • A+ Server 2123BT-HTR (Black)

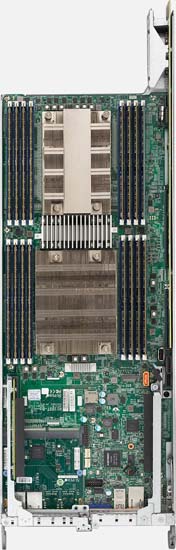

Motherboard (per Node)

Super H11DST-B
Processor/Chipset (per Node)
CPU
  • Dual AMD EPYC 7000-series Processors
  • Socket SP3
Cores
  • Up to 32 Cores
System Memory (per Node)
Memory Capacity
  • 16 DIMM slots
  • Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
  • 8-channel memory bus
  • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
  • See Detailed Memory Support Matrix
Memory Type
  • DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
Memory Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices (per Node)
Chipset
  • System on Chip
Storage
  • SATA3 (6Gbps) via AMD EPYC
Network
  • 1 PCI-E 3.0 x16 SIOM LAN Networking Slot for flexible networking, see SIOM LAN options support matrix (Must bundle with at least one SIOM network card)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC
Input / Output (per Node)
LAN
  • Provided via SIOM (optional)
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA port
DOM
  • 1 SuperDOM (Disk on Module) port
Others
  • 1 COM port (header)
  • 1 TPM 2.0 header
System BIOS (per Node)
BIOS Type
  • AMI 128Mb SPI Flash ROM
Management (per Node)
Software
  • IPMI 2.0
  • KVM with dedicated LAN
  • SSM, SUM
  • SuperDoctor 5
  • Watch Dog
Power Configurations
  • ACPI / APM Power Management
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-217BHQ+-R2K22BP2
Dimensions and Weight
Width
  • 17.25" (438mm)
Height
  • 3.47" (88mm)
Depth
  • 28.5" (724mm)
Package
  • 26.4" (H) x 11.2" (W) x 39.8" (D)
Weight
  • Gross Weight: 85 lbs (38.6 kg)
  • Net Weight: 54.5 lbs (24.7 kg)
Available Colors
  • Black

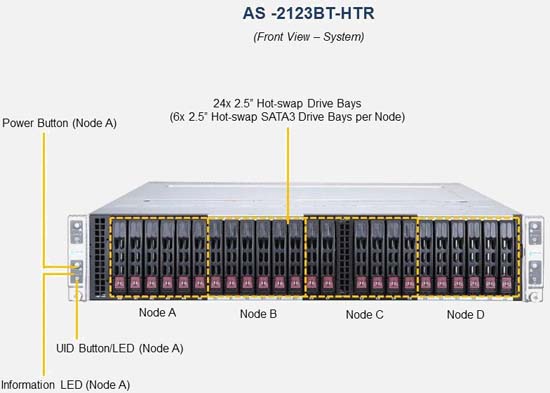

Front Panel (per Node)
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express
  • 2 PCI-E 3.0 (x16) Low-profile slots
  • 1 SIOM card support
    (must bundle with network card)
M.2
  • Interface: PCI-E 3.0 x4
  • Form Factor: 22110
  • Support SATA devices
Drive Bays (per Node)
Hot-swap
  • 6 Hot-swap 2.5" SATA3 drive bays
System Cooling
Fans
  • 4 Heavy duty 8cm PWM fans
Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power
  • 1200W/1800W/1980W/2090/2200W
Dimension
(W x H x L)
  • 45 x 40 x 480 mm
Input
  • 1200W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 1980W: 220-230Vac / 50-60Hz
  • 2090W: 230-240Vac / 50-60Hz
  • 2090W: 180-220Vac (for UL/cUL only)
  • 2200W: 220-240Vac (for UL/cUL only)
  • 2090W: 230-240Vdc (for CCC only)
+12V
  • Max: 100A / Min: 0A (100-127Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 174.17A / Min: 0A (230-240Vac)
  • Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)
  • Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)
  • Max: 174.17A / Min: 0A (230-240Vdc, CCC only)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • Gold Finger
Certification UL/cUL/CB/BSMI/CE/CCC
Titanium Level
[ Cert. in progress ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C ~ 30C (50F ~ 85F)
  • Non-operating Temperature:
    -40C to 60C (-40F to 140F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

]]

A 2U Supermicro SuperServer based on 8x AMD AMD EPYC 7000 Series range of processors, the Supermicro A+ Server 2123BT-HTR | AS -2123BT-HTR is configurable with up to 24x Hot-Swap Drives drive bays, and designed for optimal performance with 64x 2666MHz, 2933MHz DDR4 memory sockets .

The Supermicro A+ Server 2123BT-HTR | AS -2123BT-HTR supports the AMD AMD EPYC family in a high-density 2U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro A+ Server 2123BT-HTR | AS -2123BT-HTR boasts 8 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro A+ Server 2123BT-HTR | AS -2123BT-HTR Specs
  • Brand: Supermicro
  • U Size: 2U
  • Processor Family: AMD EPYC 7000 Series
  • Range: HPC Supermicro BigTwin
  • High-Density Twin Servers: 2U Twin2 - 4 Servers in 2U
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 2.5" Drives
  • Maximum RAM Capacity: 8.2TB
