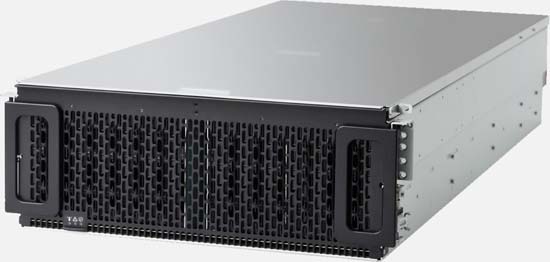

CyberStore 4U102 12GB SAS/SSD JBOD®

The Next Generation Hybrid Platform for Software-Defined Storage

  • Up to 102x Ultrastar He 12 HDDs
  • Hybrid support with up to 24 SSDs for a data acceleration tier
  • Up to 1.2PB of raw storage in 4U
  • 4 rack units, 1047mm depth
  • Up to 12x 12Gb/s SAS3 host connections
  • Patented IsoVibe technology ensures maximum performance even in heavy workloads

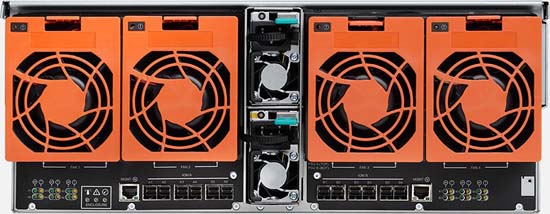

  • Enterprise-grade redundant and hot-swappable PSUs, IO Modules and fans
  • Improved cooling from innovative, patented ArcticFlow technology
  • Rack-mounted top cover for quick and easy service
  • Up to 102x SAS Hard Drives
  • Port LSI RAID Controllers (Hardware RAID levels 0, 1, 5, 6, 10, 50, and 60) and LSI HBA Controllers (Non RAID) Raid Card
  • Stores up to 1.2PB of data

Configure From £7,723.06  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice.

CyberStore 4U102 12GB SAS/SSD JBOD Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Award Winning CyberStore Range

The Broadberry range of CyberStore® storage server are trusted as the appliance of choice for thousands of companies from SMBs to enterprise's across the globe.

Wide OS Compatibility

Broadberry storage servers are built to feature full compatibility with all major storage server operating systems.

Database Engine Compatibility

Designed to provide you the highest level of choice, Broadberry storage servers feature full compatibility with all leading database engines.

Wide File Systems Support

Boasting the ultimate in compatibility, with Broadberry storage servers you enjoy support for all major file systems.

Hypervisor Ready

Broadberry Cyberstore Storage Appliance are built and configured to support the latest hypervisors including VMware and Microsoft Hyper-V.

Built with Quality Components

All Broadberry storage solutions are built using the highest quality components to ensure our customers get the long life span expected of them

Daisy Chain CyberStore Appliances

Increase the storage capacity of your storage pool appliance by daisy-chaining additional CyberStore JBOD units, giving up to Petabytes of storage.

12Gb/s SAS3 Storage

Built from the ground up around 12Gb/s SAS storage technology, the CyberStore Performance range raises performance and lowers TCO.

With IPMI Remote Management

Broadberry DAS appliances have built-in iPMI functionality, enabling complete control and management of your server through IP.


Designed for High Density and Flexibility

The CyberStore 4U102 12GB SAS/SSD JBOD Hybrid Storage Platform is a key element of next-generation disaggregated storage and software-defined storage (SDS) systems, delivering high density and the flexibility to balance performance with cost, providing up to 1.2PB1 of raw storage in a compact and efficient form factor. HGST HelioSeal drives ensure cool running, quiet operation and high reliability. A high performance data tier can be set up for demanding applications by using SSDs in up to 24 of the drive slots.

Building on 50+ years of Storage Design Experience

Conventional dense disk shelves frequently suffer from performance degradation due to induced vibration from adjacent drives. Traditional platforms also have cooling challenges as the cooling air passes over successive rows of drives, losing effectiveness as it gets heated up along the airflow path. Developing storage devices and platforms side-by-side, we address these challenges through vertical innovation, a set of technologies developed based on a holistic view of devices, platform, and their interactions. The first two of these patented technologies are IsoVibe and ArcticFlow. IsoVibe reduces vibration-induced performance degradation, while ArcticFlow overcomes the cooling issues by introducing cool air into the middle of the platform. Both these technologies contribute to long-term reliability, enabling our five-year limited warranty on the entire platform.

Designed for the Enterprise and the Cloud:

This new platform addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers and resellers/integrators that require dense, shared HDD or hybrid storage. The 4U102 Hybrid Storage Platform provides the flexibility to specify the HDD and SSD combinations to balance capacity, performance and cost.

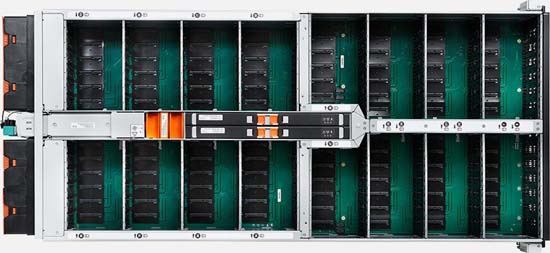

IsoVibe Patented Vibration Isolation Technology

Precise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when allthe drives are working hard.

Arctic Flow Patented Thermal Zone Cooling technology

By introducing cool air into the center of the chassis, drives operate at lower and more consistenttemperatures than conventional systems. This results in lower fan speeds.
