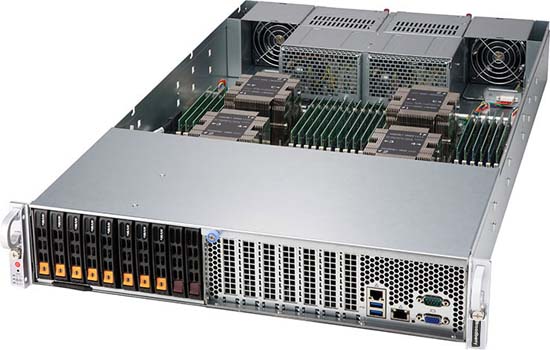

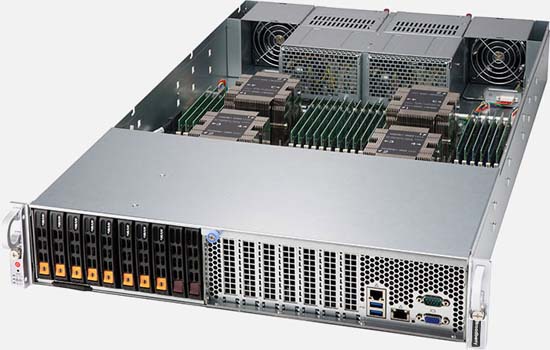

Broadberry 2049P-TN8R®

The Broadberry 2049P-TN8R is a quad-socket server solution powered by Intel Xeon Scalable processors, has a huge RAM capacity of 6TB and features 8x 2.5"hotswap U.2 NVMe drives bays and 2x 2.5" SATA drives.

  • 4-Way High Core Count, VM Optimised, Cloud and Virtualisation, Data Center, Scale-Out Density, VOD Delivery
  • Quad Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
  • 48 DIMMs; up to 12TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM††
  • 5 PCI-E 3.0 x8 slots, 2 PCI-E 3.0 x16 slots
  • 1 GbE LAN ports via Intel i210, 1 dedicated IPMI LAN port
  • 2 Hot-swap 2.5" SATA3 drive bays, 8 Hot-swap 2.5" U.2 NVMe SSD bays
  • 2 M.2 M key (22110/2280), 4 heavy duty fans with optimal fan speed control
  • 2200W Redundant Power Supplies Titanium Level (96%)
  • Supports up to 2x SATA3 2.5" Hard Drives
  • Configurable with 4x Intel Intel Xeon Scalable Processors 2nd Generation
  • Supports up to 48 modules of DDR4 ECC Registered Memory
  • 7x PCI Express Expansion Slots
  • Configurable with up to 6.1TB Server Memory

Configure From £4,300.59




Loading Configurator...

Prices for products are subject to change without notice.

Broadberry 2049P-TN8R Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Trusted CyberServe Server Platform

The Broadberry range of CyberServe® rackmount are trusted as the server of choice for thousands of companies from SMBs to enterprise's across the globe.

Supports SATA Drives

This system can be configured with SATA drives for cost-effective 12gb/s storage.

Supports NVMe Drives

This system can be configured with NVMe drives, which are capable of significantly better performance than SATA and SAS.

Small Form Factor Storage

The Broadberry 2049P-TN8R boasts high density storage and ultimate energy efficiency, catering for up to 2x High-Performance 2.5" SSD or Hard Drives


The Broadberry 2049P-TN8R is a 2U rackmount server configurable with 4x Xeon Scalable Processors - Quad Socket series range of processors. Built using the latest enterprise-class server technology, the Broadberry 2049P-TN8R has 2x 2.5" SATA and NVMe Hot-Swap Drives and is ideal for those requiring a combination of high performance and density with its 48x DDR4 ECC Registered memory banks providing up to 6.1TB of high-performance server memory. The Broadberry 2049P-TN8R boasts as just a few of its core features.

The added benefit of hot-swap hard drives means that the Broadberry 2049P-TN8R can have any of its 2 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted. The added benefit of hot-swap hard drives means that the Broadberry 2049P-TN8R can have any of its 2 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.

Storage Technology

The Broadberry 2049P-TN8R supports 2x 2.5" desktop and enterprise-class SATA hard drives, which represents the best cost per GB ratio storage technology.

Originally designed and utilised in mobile applications such as laptops and notebooks, 2.5" hard drives are becoming ever increasingly used in servers due to their lower power consumption and space-saving characteristics. The added benefit of hot-swap hard drives means that the Broadberry 2049P-TN8R can have any of its 2 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.

Configure for your Network

The Broadberry 2049P-TN8R’s ready to be deployed into your network environment with a wide-range of high-throughput connectivity options.

Configure the Broadberry 2049P-TN8R to match your application I/O demands and network infrastructure with up to 7x .

Whether your application demands the highest networking throughput, or you’re looking for a more modest enterprise-grade networking option such as Gb/E, the Broadberry 2049P-TN8R is totally customisable with a wide range of robust I/O connectivity options.

IPMI 2.0 & KVM over IP

Whereas most server manufacturers charge ongoing licence fees for IPMI, powerful, industry-standard server management is built in to the Broadberry 2049P-TN8R at no extra cost.

Using the dedicated 3rd LAN port or on-board Gigabit Ethernet ports, you can take full control of the server as though you were standing in front of it through your web browser from anywhere in the world through a pre-defined IP address and password.

Check the health of the Broadberry 2049P-TN8R components, fan speeds, temperatures, update firmware, check logs & set SMTP alerts for you pre-configure thresholds, and list the health of all your servers on one simple screen.

The Broadberry 2049P-TN8R IPMI feature also allows complete Keyboard Video and Mouse (KVM) control, and send CD/DVD Images over IP to install software & operating systems remotely.

Expand with PCI-Express Expansion

Configure the Broadberry 2049P-TN8R with up to 7x . With a wide range of enterprise-class PCI-Express add-on options available, the Broadberry 2049P-TN8R is a flexible platform for a wide-range of applications.

The added benefit of hot-swap hard drives means that the Broadberry 2049P-TN8R can have any of its 2 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.
