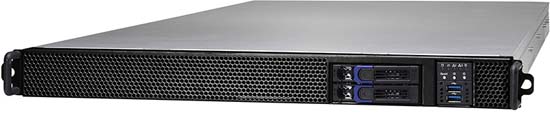

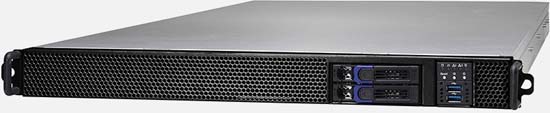

CyberServe Xeon SP - GA88B5631®

4x PCIE x16, Redundant Power, Dual Gigabit, 2 Hot-Swap Drives

  • Dimension (D x W x H) 885 x 438 x 43mm
  • 5x PCIE x16 Slots (4 x Double width GPU Slots, 1 x Slngle Width slot)
  • 2 x Internal M.2 NVME PCI-Express Slots for Internal SSD Drives
  • Dual 10GbE RJ45 LAN Ports
  • AST2500 BMC with Redfish support and Dedicated IPMI LAN Management Port
  • 1600Watt Power Supply 1+1
  • Supports up to 2x SATA3 2.5" Hard Drives
  • Configurable with 1x Intel Intel Xeon Scalable Processors
  • Supports up to 12 modules of DDR4 ECC Registered Memory
  • 1x PCI Express Expansion Slots
  • Configurable with up to 1.5TB Server Memory

Configure From £2,746.94  or  Buy Now

  1. Home
  2. Servers
  3. Xeon Scalable Processor - Single Socket
  4. CyberServe Xeon SP - GA88B5631®


Loading Configurator...

Prices for products are subject to change without notice.

CyberServe Xeon SP - GA88B5631 Specifications

CyberServe Xeon SP - GA88B5631® Features

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Trusted CyberServe Server Platform

The Broadberry range of CyberServe® rackmount are trusted as the server of choice for thousands of companies from SMBs to enterprise's across the globe.

Fully VMWare Compatible

The CyberServe Xeon SP - GA88B5631 has been carefully crafted to ensure full compatibility with VMWare, making it an ideal choice for use as a virtualisation server

Extra Expansion Slots

The CyberServe Xeon SP - GA88B5631 has 1 PCI-Express expansion slots allowing for plenty of future expandibility

Optional Hot-Swap Power Supply

The CyberServe Xeon SP - GA88B5631 is configurable with a hot-swap redundant power supply, meaning minimal down-time for mission critical applications.

Small Form Factor Storage

The CyberServe Xeon SP - GA88B5631 boasts high density storage and ultimate energy efficiency, catering for up to 2x High-Performance 2.5" SSD or Hard Drives

The CyberServe Xeon SP - GA88B5631 is a 1U rackmount server configurable with 1x Xeon Scalable Processor - Single Socket series range of processors. Built using the latest enterprise-class server technology, the CyberServe Xeon SP - GA88B5631 has 2x 2.5" SATA Hot-Swap Drives and is ideal for those requiring a combination of high performance and density with its 12x DDR4 ECC Registered memory banks providing up to 1.5TB of high-performance server memory. The CyberServe Xeon SP - GA88B5631 boasts VMware Compatible, Extra Expansion Slots, Full Height/Length Expansion and Redundant Power Supply Option as just a few of its core features.

The added benefit of hot-swap hard drives means that the CyberServe Xeon SP - GA88B5631 can have any of its 2 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.

Comes Ready to Virtualise

VMWare compatibility ensures that the CyberServe Xeon SP - GA88B5631 will run the latest VMware software with full compatibility when used as a virtualisation server.

Servers with extra expansion slots allow for future expandability or use in applications which require a large amount of PCI cards. This machine caters for full-height / full length PCI cards.

Redundant Power

The Broadberry CyberServe range of enterprise-class rack servers features high efficiency power supplies with leading features such as Titanium level efficiency, digital switching control, super quiet operation, redundancy, DC inputs, FCC class B certification, remote monitoring with PMBus, support for GPUs/graphics cards and Broadberry's signature server level quality and reliability; in a variety of form factors and capacities.

CyberServe power supplies are designed for enterprise level applications where high quality and reliability are critical, and where the highest power efficiencies are required to reduce TCO.

With strong experience in the server systems market, Broadberry are experienced in testing and validating these power supplies in all relevant enterprise environments under all necessary operating conditions, compiling long operating records for multiple applications.

Storage Technology

The CyberServe Xeon SP - GA88B5631 supports 2x 2.5" desktop and enterprise-class SATA hard drives, which represents the best cost per GB ratio storage technology.

Originally designed and utilised in mobile applications such as laptops and notebooks, 2.5" hard drives are becoming ever increasingly used in servers due to their lower power consumption and space-saving characteristics. The added benefit of hot-swap hard drives means that the CyberServe Xeon SP - GA88B5631 can have any of its 2 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.

Configure for your Network

The CyberServe Xeon SP - GA88B5631’s ready to be deployed into your network environment with a wide-range of high-throughput connectivity options.

Configure the CyberServe Xeon SP - GA88B5631 to match your application I/O demands and network infrastructure with up to 1x Intel Gigabit Ethernet Adapters , Intel X520/550 Series 10 Gigabit Ethernet Adapters , Qlogic Fibre Channel Adaptors, Solid State NVME PCI-Express Drives, Intel X710/XL710 Series 10/40 Gigabit Ethernet Adapters, Mellanox ConnectX-3 EN Series 10/40/56-Gigabit Ethernet Adapters.

Whether your application demands the highest networking throughput, or you’re looking for a more modest enterprise-grade networking option such as Gb/E, the CyberServe Xeon SP - GA88B5631 is totally customisable with a wide range of robust I/O connectivity options.

IPMI 2.0 & KVM over IP

Whereas most server manufacturers charge ongoing licence fees for IPMI, powerful, industry-standard server management is built in to the CyberServe Xeon SP - GA88B5631 at no extra cost.

Using the dedicated 3rd LAN port or on-board Gigabit Ethernet ports, you can take full control of the server as though you were standing in front of it through your web browser from anywhere in the world through a pre-defined IP address and password.

Check the health of the CyberServe Xeon SP - GA88B5631 components, fan speeds, temperatures, update firmware, check logs & set SMTP alerts for you pre-configure thresholds, and list the health of all your servers on one simple screen.

The CyberServe Xeon SP - GA88B5631 IPMI feature also allows complete Keyboard Video and Mouse (KVM) control, and send CD/DVD Images over IP to install software & operating systems remotely.

Expand with PCI-Express Expansion

Configure the CyberServe Xeon SP - GA88B5631 with up to 1x Intel Gigabit Ethernet Adapters , Intel X520/550 Series 10 Gigabit Ethernet Adapters , Qlogic Fibre Channel Adaptors, Solid State NVME PCI-Express Drives, Intel X710/XL710 Series 10/40 Gigabit Ethernet Adapters, Mellanox ConnectX-3 EN Series 10/40/56-Gigabit Ethernet Adapters. With a wide range of enterprise-class PCI-Express add-on options available, the CyberServe Xeon SP - GA88B5631 is a flexible platform for a wide-range of applications.

The added benefit of hot-swap hard drives means that the CyberServe Xeon SP - GA88B5631 can have any of its 2 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.

Broadberry Price Guarantee

We're so confident in our great value solutions, If you find a cheaper genuine price for the same specifications elsewhere we'll match it.

Lease This System

In today’s climate we appreciate the importance of preserving working capital yet understand that businesses still need to invest in new technology. We are delighted to inform our customers that Finance is available from just £1000 + VAT via our Strategic Partner BlueStar.

Key Features
  • Terms from 2 – 5 years available
  • Tax advantages – Leasing is 100% tax allowable
  • Fast credit decisions – Credit approval typically secured within hours + eSign documents
  • Stage payment options – Ideal for phased installations. We can also fund the deposit
  • Cash flow – Preserve your working capital
  • Existing credit facilities remain unaffected
  • Flexibility – Upgrade, make additions or settle at any point during the term
  • Total solution finance – Finance the hardware, software and all delivered services
  • Finance Lease, Hire Purchase and Loans available
  • Leasing available to all limited businesses, including start-ups

You can finance the total solution including hardware, software and installation costs and BlueStar will be happy to advise you of the most suitable package for your organisation.

BlueStar’s leasing options have enabled our customers to spread the cost of a new solution typically over a 3 year period. All payments made on a lease can be offset against taxable profits which may improve tax efficiency. Leasing also provides a flexible upgrade path allowing our customers to add further equipment to their lease throughout the term.

Finance helps to remove cash flow concerns and allows our customers to acquire the right system for their business rather than what available cash reserves dictate. Information technology is an operating cost to your business, pay for the equipment as you use it and get an immediate return on your investment.

Do you need to replace outdated equipment but don’t have the budget to purchase today?

Call us today on 020 8997 6000 to find out how leasing can work for you. Finance is subject to status and available to businesses only.

The above figures have been provided by our finance partner Bluestar Leasing. All figures are indicative only, subject to VAT where applicable, final underwriting/credit approval, document administration fees, payments by direct debit and terms and conditions. The stipulated tax relief assumes a representative rate of 19% due to the scheduled corporation tax rate reductions over the coming years. For exact taxation benefits relevant to your business it is recommended that you seek professional financial advice from your accountant. Bluestar Leasing is a trading name of Blue Star Business Solutions Limited who are Authorised and Regulated by the Financial Conduct Authority. Available to Limitied Companies, PLCs, LLPs and Larger Partnerships (4 or more) only.

Platform Improvements

Intel Xeon E5-2600 v4 Latest Range
Intel Xeon SP
Cores Per Socket Up to 22 Up to 28
Threads Per Socket Up to 44 threads Up to 56 threads
QPI/UPI Speed (GT/s) 2x QPI channels @ 9.6 GT/s Up to 3x UPI @ 10.4 GT/s
PCIe* Lanes /Controllers /Speed(GT/s) 40 / 10 / PCIe 3.0 (2.5, 5. 8 (GT/s) 48 / 12 / PCIe 3.0 (2.5, 5,8 GT/s)
Memory Population 4 channels 6 channels
Max Memory Speed Up to 2400 Up to 2666
TDP (W) 55W-145W 70W-205W

Now Faster Than Ever

Virtualisation with Broadberry VMware Compatible Servers

By consolidating servers onto a VMware compatible Broadberry server, you can enjoy a reduction in your IT infrastructure footprint.

The virtualisation market has grown exponentially since the mid-2000s and as has the demand for servers able to run VMware virtualisation software. While the majority of servers will be able to run VMware, these rack servers have been specially designed and then sent off for VMware ESXI 6.0 certification.

Servers Built for Compatibility with VMware®

Built from the ground up for compatibility, these servers are ideal for running your virtualised IT infrastructure.These VMware certified servers are based on hardware that is enterprise-grade and industry compliant. This range servers can be configured with up to 16 cores for processing and up to 1/2 TB of memory.

NVIDIA GPU Cards Configure your Broadberry GPU Server with the Right GPU Card

NVIDIA P40
NVIDIA P100 PCIe
NVIDIA V100 PCIe
NVIDIA Titan V
Architecture Pascal Pascal Volta Volta
SMs 30 56 80 80
CUDA Cores 3,840 3,584 5,120 5,120
Tensor Cores N/A N/A 640 640
Frequency 1,303 MHz 1,126 MHz 1.53 GHz 850 MHz
TFLOPs (double) - 4.7 7 7.5
TFLOPs (single) 12 9.3 14 15
TFLOPs (half/Tensor) - 18.7 112 30
Cache 3 MB L2 4 MB L2 6 MB L2 4.5 MB L2
Max. Memory 24 GB 16 GB 16 GB 12 GB
Memory B/W 346 GB/s 720 GB/s 900 GB/s 652 GB/s
