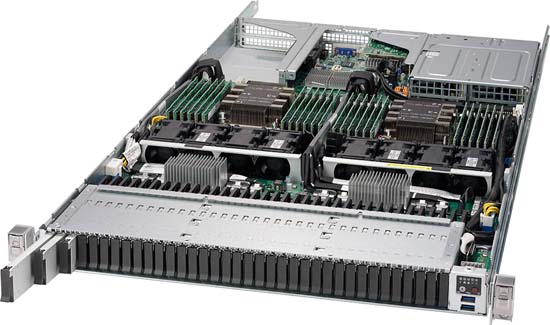

Supermicro SSG-1029P-NMR36L SuperStorage | 1029P-NMR36L®

The Supermicro SSG-1029P-NMR36L features a maximum RAM capacity of 6TB and can be configured with hot-swappable PCIe NF1 drives.

  • - IOPS Intensive Storage App. - Database App. (MySQL, Casandra) - Hyperconverged Infrastructure / Scale-out Architectures
  • Dual Socket P (LGA 3647) support 2nd Gen. Intel Xeon Scalable processors (Cascade Lake/Skylake)‡
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane™ DCPMM
  • 2 PCI-E 3.0 x16 slots, 1 PCI-E 3.0 x4 slot
  • 32 Hot-swap PCI-E NF1 drive bays, 4 SATA3 M.2 drive bays support M.2 Form Factor 22x42/60/80/110
  • 2x 10GBase-T LAN ports via Intel X550
  • 8 Heavy duty 4cm counter-rotating fans with air shroud
  • 1600W Redundant Power Supplies Titanium Level (96%)
  • Up to 36 NF1 SSDs (4-16TB capacity per drive)
  • Up to 10 million IOPS in 1U

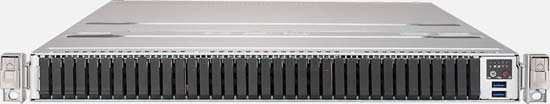

  • Front-loading bays with optimised air-flow
  • Hot-swap and Power Loss Protection

Configure From £6,871.48  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice.

Supermicro SSG-1029P-NMR36L SuperStorage | 1029P-NMR36L Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 6TB Of RAM

Equipable with up to an huge 6TB of RAM, which allows for quick and effective multi-tasking for even the most RAM intensive applications.

Hyperconverged Infrastructure Optimised

Optimised for hyperconverged infrastructure. Through leveraging hyperconverged infrastructure you can enjoy lower costs, increased performance and increased data protection.

Configure With Hot-Swap Drives

The Supermicro SSG-1029P-NMR36L SuperStorage | 1029P-NMR36L features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with PCIe NF1

Configure your system with PCIe NF1, the very latest storage technology, which delivers ultra high density of capacity and storage performance.

Intel X550-AT2 Dual Port 10GBase-T

Featuring an Intel X550-AT2 Dual Port 10GBase-T network adapter which delivers high performance. This server is fully free from vendor lock-in and features wide ranging hardware and software compatibility.


Built for high performance, the Supermicro SSG-1029P-NMR36L is powered by dual Intel Xeon SP processors and can be configured with the very latest storage technology. The system also features an Intel X550-AT2 Dual Port 10GBase-T network adapter that delivers high performance. It is also optimised for hyperconverged infrastructure.

Product SKUs
SSG-1029P-NMR36L
  • SuperServer 1029P-NMR36L (Black)
Motherboard

Super X11DSF-E
Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen. Intel Xeon Scalable Processors (Cascade Lake/Skylake),
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores with Intel HT Technology
Note BIOS version 3.0a or above is required to support 2nd Gen. Intel Xeon Scalable processors
System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel Optane DCPMM
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
On-Board Devices
Chipset
  • Intel C627 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1
Network Connectivity
  • Intel X550 Dual Port 10GBase-T
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC
Input / Output
SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (front)
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA D-Sub connector port
Serial Header
  • 1 COM port (header)
System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM
Management
Software
  • Intel Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SSM, SPM, SUM
  • SuperDoctor 5
  • Watch Dog
Power Configurations
  • ACPI / APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-121NF-R1K62P
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.26" (438.4mm)
Depth
  • 30.04" (763mm)
Weight
  • Net Weight: 40 lbs (18.1kg)
  • Gross Weight: 52 lbs (23.6kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED
Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 slots
  • 1 PCI-E 3.0 x4 (Low profile) slot
Drive Bays
Hot-swap
  • 32 Hot-swap PCI-E NF1 drive bays
  • 4 SATA3 M.2 drive bays support M.2 Form Factor 22x42/60/80/110
System Cooling
Fans
  • 8 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control
Power Supply
1600W Redundant Power Supplies with PMBus
Total Output Power
  • 1600W/1000W
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 13 - 9A / 50-60Hz
  • 200-240Vac / 10 - 8A / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100-127Vac)
  • Max: 133A / Min: 0A (200-240Vac)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification UL/cUL/CB/BSMI/CE/CCC
Titanium Level
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C ~ 35C (50F ~ 95F)
  • Non-operating Temperature:
    -40C to 60C (-40F to 140F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

A 1U Supermicro SuperServer based on 2x Intel Intel Xeon Scalable Processors range of processors, the Supermicro SSG-1029P-NMR36L SuperStorage | 1029P-NMR36L is configurable with up to 0x Hot-Swap Drives drive bays, and designed for optimal performance with 24x 2666MHz, 2933MHz DDR4 memory sockets .

The Supermicro SSG-1029P-NMR36L SuperStorage | 1029P-NMR36L supports the Intel Intel Xeon Scalable Processors 2nd Generation family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SSG-1029P-NMR36L SuperStorage | 1029P-NMR36L boasts 3 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SSG-1029P-NMR36L SuperStorage | 1029P-NMR36L Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: Intel Xeon Scalable Processors
  • Range: Hyperconverged Infrastructure Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: PCIe NF1
  • Maximum RAM Capacity: 3.1TB
