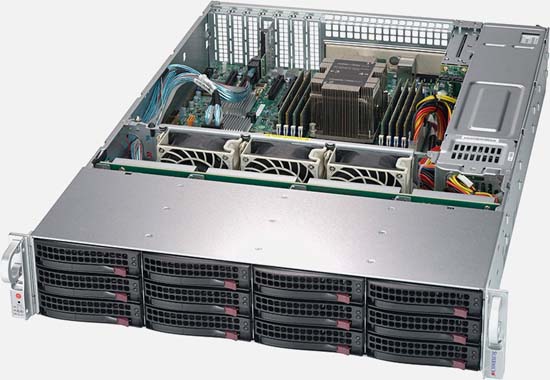

Supermicro SuperStorage 5029P-E1CTR12L | SSG-5029P-E1CTR12L®

Configure a Supermicro SuperStorage 5029P-E1CTR12L | SSG-5029P-E1CTR12L

  • Application and data serving
  • Connectivity/Storage Compute Nodes
  • High Availability Storage Appliance Platform
  • Single Socket P (LGA 3647) supports 2nd Gen. Intel Xeon Scalable processor (Cascade Lake/Skylake)‡
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane™ DCPMM
  • 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
  • 2x 10GBase-T with Intel X557
  • 12 Hot-swap 3.5" SAS/SATA drive bays with SES3; 2 Hot-swap 2.5" NVMe/SATA (rear, optional)
  • SAS3 via Broadcom 3008 controller
  • Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 3 High-performance 80mm PWM fans
  • 800W Redundant Power Supplies Titanium Level (96%)

Configure From £1,716.53  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice.

Supermicro SuperStorage 5029P-E1CTR12L | SSG-5029P-E1CTR12L Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Single Processor

Designed for server applications where multi processors are not required. Single processors are an affordable, cost-effective and reliable option.

Configure With Up to 2TB Of RAM

Equipable with up to a tremendous 2TB of RAM, allowing for super fast and ultra efficient multi-tasking for even the most demanding of applications.

Head-Node Controller

Optimised for the role head-node controller, this server can control storage and is a robust and reliable option. It is also compatible with all major storage operating systems.

Configure With Hot-Swap Drives

The Supermicro SuperStorage 5029P-E1CTR12L | SSG-5029P-E1CTR12L features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro SuperStorage 5029P-E1CTR12L | SSG-5029P-E1CTR12L with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.

Dual 10GBase-T LAN ports via Intel X722

Featuring a Dual 10GBase-T LAN network adapter, which delivers high performance. This server is not vendor locked and features wide ranging hardware compatibility.


[[
Product SKUs
SSG-5029P-E1CTR12L
  • SuperServer 5029P-E1CTR12L (Black)
Motherboard

Super X11SPH-nCTF
Processor/Cache
CPU
  • Single Socket P (LGA 3647)
  • 2nd Gen. Intel Xeon Scalable Processors (Cascade Lake/Skylake)
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores with Intel HT Technology
Note BIOS version 3.0b or above is required to support 2nd Gen. Intel Xeon Scalable processors
System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel Optane DCPMM
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
On-Board Devices
Chipset
  • Intel C622 chipset
SATA
  • SATA3 (6Gbps) via C622 controller
  • RAID 0, 1, 5, 10 support
SAS
  • SAS3 (12Gbps) via Broadcom 3008
  • SW RAID 0, 1, 10
Network Controllers
  • Dual LAN with 10GBase-T with Intel X722 + X557
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

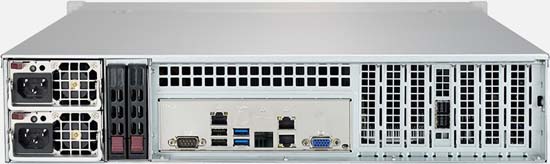

Input / Output
SATA
  • 10 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
  • 2 USB 2.0 ports (rear)
VGA
  • 1 VGA port
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header)
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
  • Intel Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SPM, SUM
  • SuperDoctor 5
  • Watch Dog
Power Configurations
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-826BE1C-R802LPB
Dimensions
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 25.6" (648mm)
Package
  • 11.5" (H) x 26.5" (W) x 34" (D)
Weight
  • Gross Weight: 58 lbs (26.3 kg)
  • Net Weight: 34 lbs (15.4 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED
  • Power fail LED

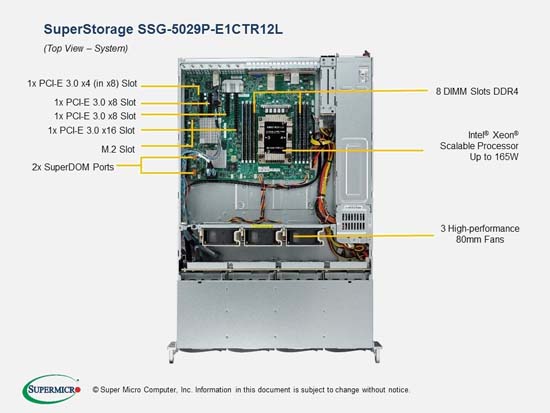

Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x16
  • 1 PCI-E 3.0 x8
  • 1 PCI-E 3.0 x8
  • 1 PCI-E 2.0 x4 (in x8)
Drive Bays / Storage
Hot-swap
  • 12 Hot-swap 3.5" SAS/SATA drive bays with SES3
Optional
  • 2 Hot-swap 2.5" NVMe/SATA drive bays (rear)
M.2
  • M.2 Interface: PCI-E 3.0 x4 and SATA
  • Form Factor: 2280
  • Key: M-Key
  • Double Height Connector
Backplane
SAS3 Backplane: SAS3 12Gbps single expander backplane, w/ LSISAS3x28 expander, support 12x 3.5" drives, with 4x mini-SAS HD connectors, 2 for uplink and another 2 for downlink
System Cooling
Fans
  • 3 High-performance 80mm PWM fans
Power Supply (76mm Width)
800W Redundant Power Supplies with PMBus
Total Output Power
  • 800W
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
Input
  • 800W: 100-240Vac / 50-60Hz
  • 800W: 200-240Vdc
+12V
  • Max: 66A / Min: 0A (100-240Vac)
  • Max: 66A / Min: 0A (200-240Vdc)
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • Gold Finger
Certification
UL/cUL/CB/BSMI/CE/CCC
Titanium Level
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C ~ 35C (50F ~ 95F)
  • Non-operating Temperature:
    -40C to 60C (-40F to 140F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

]]

A 2U Supermicro SuperServer based on 1x Intel Intel Xeon Scalable Processors range of processors, the Supermicro SuperStorage 5029P-E1CTR12L | SSG-5029P-E1CTR12L is configurable with up to 12x Hot-Swap Drives drive bays, and designed for optimal performance with 8x 2666MHz, 2933MHz DDR4 memory sockets .

The Supermicro SuperStorage 5029P-E1CTR12L | SSG-5029P-E1CTR12L supports the Intel Intel Xeon Scalable Processors family in a high-density 2U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperStorage 5029P-E1CTR12L | SSG-5029P-E1CTR12L boasts 4 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperStorage 5029P-E1CTR12L | SSG-5029P-E1CTR12L Specs
  • Brand: Supermicro
  • U Size: 2U
  • Processor Family: Intel Xeon Scalable Processors
  • Range: Head-Node Controller Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 1TB
