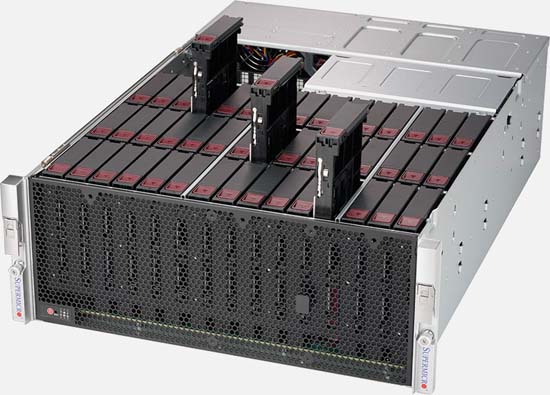

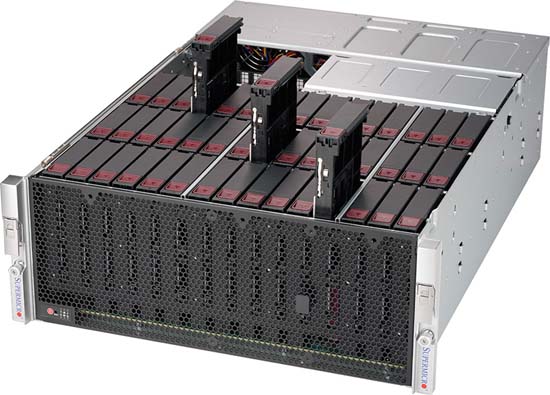

Supermicro SSG-5049P-E1CR45H SuperStorage | 5049P-E1CR45H®

The Supermicro SSG-5049P-E1CR45H, optimised for backup and cold storage, can be configured with 3.5” hot swap drive bays.

  • Backup Storage, Cold Storage
  • Database Applications
  • Data Warehousing, Archiving
  • Single Socket P (LGA 3647) supports 2nd Gen. Intel Xeon Scalable processor (Cascade Lake/Skylake)‡
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane™ DCPMM
  • 2 PCI-E 3.0 x8 (in x16), 3 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8) 1 PCI-E 3.0 x8 (occupied by HBA)
  • 2 GbE LAN ports via Intel i210
  • 45 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 rear Hot-swap 2.5" SATA drive bays; optional 2 SATA or NVMe
  • Broadcom 3108 SAS3, HW RAID (AOC-S3108L-H8IR-P )
  • Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 5 Hot-swap 8cm redundant PWM fans
  • 1600W Redundant Power Supplies Platinum Level

Configure From £4,239.62  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice.

Supermicro SSG-5049P-E1CR45H SuperStorage | 5049P-E1CR45H Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Single Processor

Designed for server applications where multi processors are not required. Single processors are an affordable, cost-effective and reliable option.

Configure With Up to 2TB Of RAM

Equipable with up to a tremendous 2TB of RAM, allowing for super fast and ultra efficient multi-tasking for even the most demanding of applications.

Designed For High Capacity

Designed and optimised for storage, this server is built for high storage capacity. It also features enterprise grade reliability and is ideal if you require a lot of storage space.

Configure With Hot-Swap Drives

The Supermicro SSG-5049P-E1CR45H SuperStorage | 5049P-E1CR45H features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro SSG-5049P-E1CR45H SuperStorage | 5049P-E1CR45H with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.

Dual LAN with Intel I210-AT

Featuring the Dual LAN with Intel I210-AT network adapter, which delivers performance and reliability. This server is not vendor locked and features wide ranging hardware and software compatibility.


The Supermicro SSG-5049P-E1CR45H is powered by the revolutionary Intel Xeon SP range, delivering higher performance than the previous generation of Xeon processors. These servers also offer security without compromise, combining a variety technology that work together in keeping your system safe.

Product SKUs
SSG-5049P-E1CR45H
  • SuperServer 5049P-E1CR45H (Black)
Motherboard

Super X11SPL-F
Processor/Cache
CPU
  • Single Socket P (LGA 3647)
  • 2nd Gen. Intel Xeon Scalable Processors (Cascade Lake/Skylake)
  • Support CPU TDP up to 165W
Cores
  • Up to 28 Cores with Intel HT Technology
Note BIOS version 3.0b or above is required to support 2nd Gen. Intel Xeon Scalable processors
System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel Optane DCPMM
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
On-Board Devices
Chipset
  • Intel C621 chipset
SATA
  • SATA3 (6Gbps) via Intel C621 controller
  • RAID 0, 1, 5, 10 support
SAS
  • Broadcom 3108 SAS3, HW RAID
    (AOC-S3108L-H8IR-P)
Network Controllers
  • Dual 1GbE LAN ports with Intel I210
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

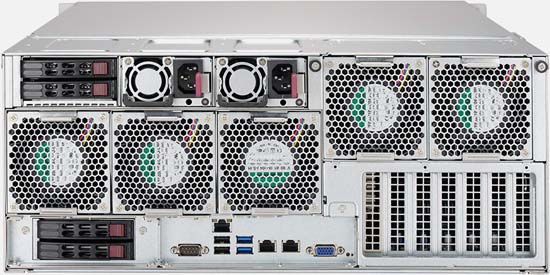

Input / Output
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
  • 2 USB 2.0 ports (rear)
VGA
  • 1 VGA port
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header)
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
  • Intel Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SPM, SUM
  • SuperDoctor 5
  • Watch Dog
Power Configurations
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-946LTS-R1K66P1
Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 7" (178mm)
Depth
  • 26" (660mm)
Weight
  • Gross Weight: 120 lbs (54.43 kg)
  • Net Weight: 85 lbs (38.56 kg)
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED
  • Power fail LED
Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x8 (in x16)
  • 3 PCI-E 3.0 x8
  • 1 PCI-E 3.0 x4 (in x8)
  • 1 PCI-E 3.0 x4 (occupied by HBA card)
M.2
  • Interface: PCIe 3.0 x4
  • Form Factor: 2280, 22110
Drive Bays / Storage
Hot-swap
  • 45 Hot-swap 3.5" SAS3/SATA3 drive bays
  • 2 Rear Hot-swap 2.5" SATA3 drive bays
Optional
  • 2 Hot-swap 2.5" NVMe/SATA drive bays (rear)
Backplane
SAS3 / SATA3 single expander per backplane
System Cooling
Fans
  • 5 High-performance 80mm cooling fans
Power Supply
1600W 1U Redundant Power Supplies with PMBus
Total Output Power
  • 1000W/1600W
Dimension
(W x H x L)
  • 73.5 x 40 x 265 mm
Input
  • 100-127Vac / 12.9A Max / 50-60Hz
  • 200-240Vac / 9.5A Max / 50-60Hz
+12V
  • Max: 82A / Min: 0.1A (100-127Vac)
  • Max: 132A / Min: 0.1A (200-240Vac)
12V SB
  • Max: 2A / Min: 0.2A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Platinum Level
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C ~ 35C (50F ~ 95F)
  • Non-operating Temperature:
    -40C to 60C (-40F to 140F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

A 4U Supermicro SuperServer based on 1x Intel Intel Xeon Scalable Processors range of processors, the Supermicro SSG-5049P-E1CR45H SuperStorage | 5049P-E1CR45H is configurable with up to 45x Hot-Swap Drives drive bays, and designed for optimal performance with 8x 2666MHz, 2933MHz DDR4 memory sockets .

The Supermicro SSG-5049P-E1CR45H SuperStorage | 5049P-E1CR45H supports the Intel Intel Xeon Scalable Processors 2nd Generation family in a high-density 4U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SSG-5049P-E1CR45H SuperStorage | 5049P-E1CR45H boasts 5 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SSG-5049P-E1CR45H SuperStorage | 5049P-E1CR45H Specs
  • Brand: Supermicro
  • U Size: 4U
  • Processor Family: Intel Xeon Scalable Processors
  • Range: Storage Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 128GB
