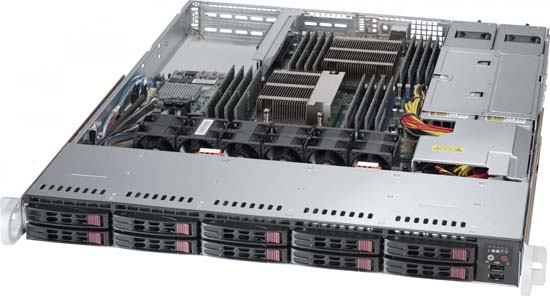

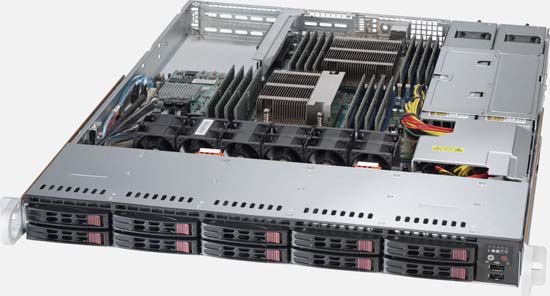

Supermicro SuperServer 1028R-WTNRT | SYS-1028R-WTNRT®

Configure a Supermicro SuperServer 1028R-WTNRT | SYS-1028R-WTNRT

  • Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s
  • Up to 2TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 16x DIMM slots
  • 2x PCI-E 3.0 x16 (FHHL) slots
  • 10x Hot-swap 2.5" SAS/SATA HDD bays; 2x NVMe support
  • Intel X540 Dual port 10GBase-T LAN
  • I/O ports: 2x SuperDOM, 1x VGA, 1x COM, 2x USB 3.0 (front), 4x USB 2.0 (rear)
  • 2x SuperDOM (Disk on Module) ports
  • 700W Redundant Power Supplies Platinum Level High-efficiency

Configure From £1,323.68  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice.

Supermicro SuperServer 1028R-WTNRT | SYS-1028R-WTNRT Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 2TB Of RAM

Equipable with up to a tremendous 2TB of RAM, allowing for super fast and ultra efficient multi-tasking for even the most demanding of applications.

Configure With Hot-Swap Drives

The Supermicro SuperServer 1028R-WTNRT | SYS-1028R-WTNRT features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 2.5" Drives

The Supermicro SuperServer 1028R-WTNRT | SYS-1028R-WTNRT can be configured with 2.5" drives, a more space efficient and low noise option. These drives also offer energy savings and increased flexibility.

Featuring Dual 10GBase-T

The Dual 10GBase-T network adapter provides high performance. This server is free from vendor lock-in and features wide ranging hardware and software compatibility.


Product SKUs
SYS-1028R-WTNRT
  • SuperServer 1028R-WTNRT (Black)
Motherboard

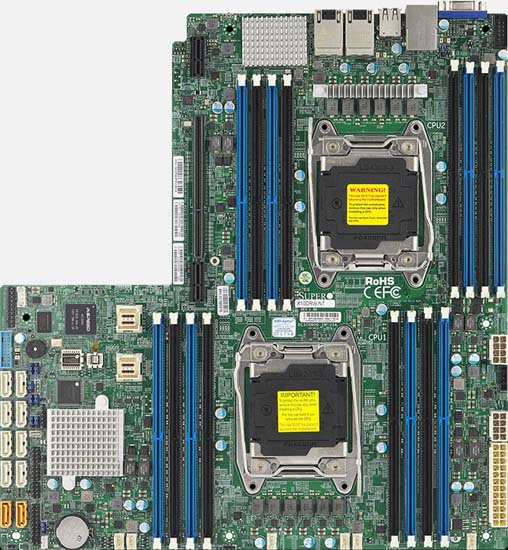

Super X10DRW-NT
Processor/Cache
CPU
  • Intel Xeon processor E5-2600 v4/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 512 ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
On-Board Devices
Chipset
  • Intel C612 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel X540 Dual Port 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Video
  • ASPEED AST2400 BMC
Input / Output
Serial ATA
  • 8 SATA3 (6 Gbps) ports and 2 NVMe/SATA3 hybrid ports
LAN
  • 2x RJ45 10GBase-T ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 ports (front via header)
  • 4x USB 2.0 ports (rear)
Video
  • 1x VGA port
Serial Port / Header
  • 1x Fast UART 16550 header
DOM
  • 2x SuperDOM (Disk on Module) ports
PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
  • 5+1 Phase-switching voltage regulator
FAN
  • 6x 4-pin fan headers (up to 6 fans)
  • 6x fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 8x Fan Connectors
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header
  • SDDC Support
  • RoHS
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-116AC2-R706WB
Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 1.7" (43mm)
Depth
  • 23.5" (597mm)
Gross Weight
  • 46 lbs (20.9kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • 2x Network activity LEDs
  • Universal Information (UID) LED
Expansion Slots
PCI-Express
  • 2x PCI-E 3.0 x16 full-height, half-length slots
Drive Bays
Hot-swap
  • 8x SATA3 (6Gbps) ports and 2x NVMe/STAT3 hybrid ports (connected to onboard storage controller)
Backplane
SAS/SATA HDD Backplane
System Cooling
Fans
  • 5x 4cm heavy-duty counter-rotating fans w/ air shroud and optimal fan speed control
Power Supply
700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C
AC Voltage
  • 700W: 100 - 140 V, 50-60 Hz
  • 750W: 200 - 240V, 50-60 Hz
DC Output +5V standby
  • 3 Amp
DC Output +12V
  • 700W: 58 Amp @ 100-140V
  • 750W: 62 Amp @ 200-240V
Certification Platinum Certified
[ Test Report ]
System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1
Management
Software
  • SuperDoctor 5
  • Watch Dog
  • NMI
  • IPMI 2.0
  • Intel Node Manager
Power Configurations
  • ACPI / APM Power Management
  • Power-on mode for AC power recovery
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C to 35C (50F to 95F)
  • Non-operating Temperature:
    -40C to 70C (-40F to 158F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

A 1U Supermicro SuperServer based on 2x E5 2600 v4 range of processors, the Supermicro SuperServer 1028R-WTNRT | SYS-1028R-WTNRT is configurable with up to 10x Hot-Swap Drives drive bays, and designed for optimal performance with 16x 2666MHz DDR4 memory sockets .

The Supermicro SuperServer 1028R-WTNRT | SYS-1028R-WTNRT supports the Xeon E5 2600 v4 Series Processors family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 1028R-WTNRT | SYS-1028R-WTNRT boasts 2 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer 1028R-WTNRT | SYS-1028R-WTNRT Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: E5 2600 v4
  • Range: Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 2.5" Drives
  • Maximum RAM Capacity: 2TB
