Supermicro SuperServer 1029P-N32R | SYS-1029P-N32R®

Configure a Supermicro SuperServer 1029P-N32R | SYS-1029P-N32R

  • - High Throughput Ingest - High Density Hot Storage - HPC / Data Analytics - Media/Video Streaming - Content Delivery Network (CDN) - Big Data Top of Rack Storage
  • Dual Socket P (LGA 3647) support 2nd Gen. Intel Xeon Scalable processors (Cascade Lake/Skylake)‡
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane™ DCPMM
  • 2 PCI-E 3.0 x16 Low-profile slots

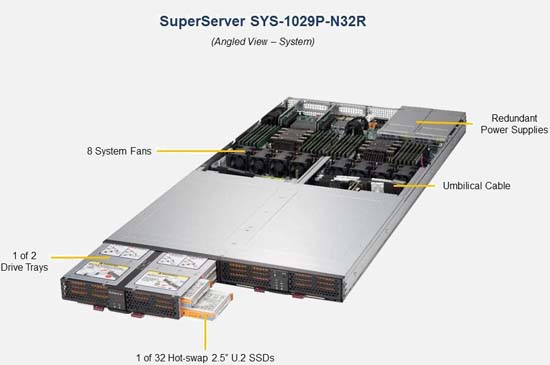

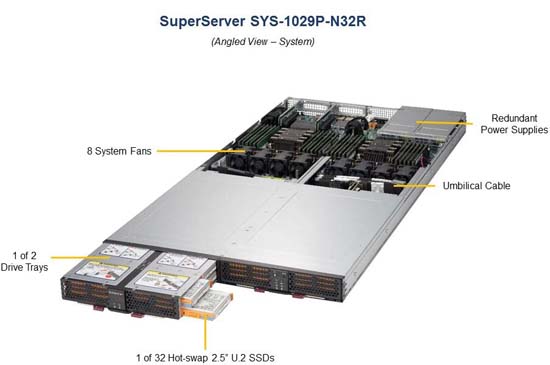

  • Dual Drawer/Tray with a total of 32 NVMe 2.5" SSDs
  • 2x 10GBase-T LAN ports
  • Built in Intel QAT for Crypto/Compression
  • 8x 40x56mm PWM fans
  • 1600W Redundant Power Supplies Platinum Level

Configure From £6,372.91  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice.

Supermicro SuperServer 1029P-N32R | SYS-1029P-N32R Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 6TB Of RAM

Equipable with up to an huge 6TB of RAM, which allows for quick and effective multi-tasking for even the most RAM intensive applications.

Optimised For High Performance Computing

Fully optimised for HPC, this server is excellent at deal with computationally-intensive applications.

Configure with 2.5" Drives

The Supermicro SuperServer 1029P-N32R | SYS-1029P-N32R can be configured with 2.5" drives, a more space efficient and low noise option. These drives also offer energy savings and increased flexibility.

Intel X550-AT2 Dual Port 10GBase-T

Featuring an Intel X550-AT2 Dual Port 10GBase-T network adapter which delivers high performance. This server is fully free from vendor lock-in and features wide ranging hardware and software compatibility.


Product SKUs
SYS-1029P-N32R
  • SuperServer 1029P-N32R (Black)
Motherboard

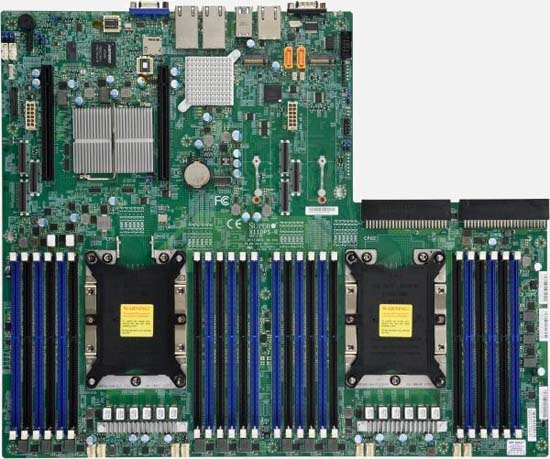

Super X11DPS-RE
Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen. Intel Xeon Scalable Processors (Cascade Lake/Skylake),
    3 UPI up to 10.4GT/s
  • Support CPU TDP up to 140W
Cores
  • Up to 22 Cores with Intel HT Technology
Note BIOS version 3.0a or above is required to support 2nd Gen. Intel Xeon Scalable processors
System Memory
Memory Capacity

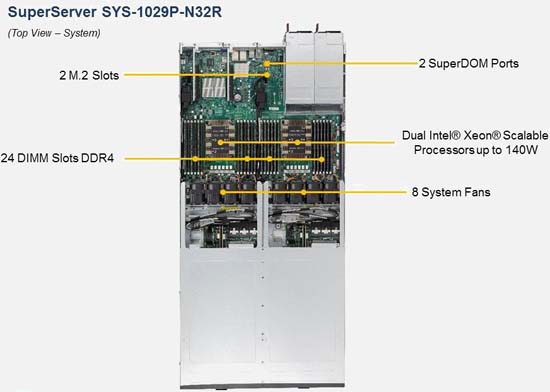

  • 24 DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel Optane DCPMM
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
On-Board Devices
Chipset
  • Intel C627 chipset
Network Connectivity
  • Intel X550 Dual Port 10GBase-T
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC
Input / Output
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA port
Serial Header
  • 1 COM port (header)
System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM
Management
Software
  • Intel Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SSM, SPM, SUM
  • SuperDoctor 5
  • Watch Dog
Power Configurations
  • ACPI / APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-136HTS-R1K69P-U2
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.26" (438mm)
Depth
  • 35.95" (913mm)
Weight
  • Net Weight: 58 lbs (26.3kg)
  • Gross Weight: 93 lbs (42.2kg)
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED
Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 Low-profile slots
M.2
  • M.2 Interface: 2 PCI-E 3.0 x2, RAID 0, 1
  • M.2 Form Factor: 2260/2280/22110
  • M.2 Key: M-Key
Drive Bays
Hot-swap
  • Dual Drawer/Tray with a total of 32 NVMe 2.5" SSDs
System Cooling
Fans
  • 8x 40x56mm PWM fans
AC/DC240V Input Redundant Power Supply
1000 / 1600W 1U Redundant Power Supply
Total Output Power
  • 1000W / 1600W
Dimension
(W x H x L)
  • 73.5 x 40 x 185 mm
Input
  • 100 -- 127Vac / 13.8A / 47-63Hz
  • 200 -- 240Vac / 9.6A / 47-63Hz
  • 200 -- 240Vdc / 8.5A (CCC Only)
+12V
  • Max: 83A / Min: 0A (1000W)
  • Max: 132A / Min: 0A (1600W)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • Gold Finger
Certification UL/cUL/CB/BSMI/CE/CCC/BIS/KC
Platinum Certified
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C ~ 30C (50F ~ 86F)
  • Non-operating Temperature:
    -40C to 60C (-40F to 140F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

A 1U Supermicro SuperServer based on 2x Intel Intel Xeon Scalable Processors range of processors, the Supermicro SuperServer 1029P-N32R | SYS-1029P-N32R is configurable with up to 0x drive bays, and designed for optimal performance with 24x 2666MHz, 2933MHz DDR4 memory sockets .

The Supermicro SuperServer 1029P-N32R | SYS-1029P-N32R supports the Intel Intel Xeon Scalable Processors 2nd Generation family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 1029P-N32R | SYS-1029P-N32R boasts 2 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer 1029P-N32R | SYS-1029P-N32R Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: Intel Xeon Scalable Processors
  • Range: HPC Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays:
  • HDD Size: 2.5" Drives
  • Maximum RAM Capacity: 3.1TB
