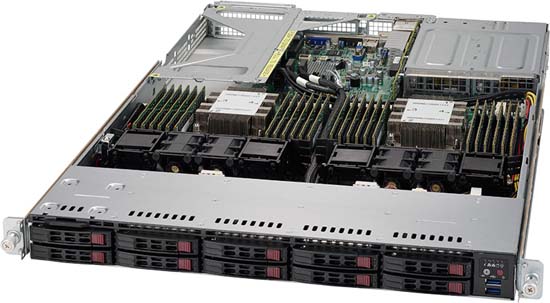

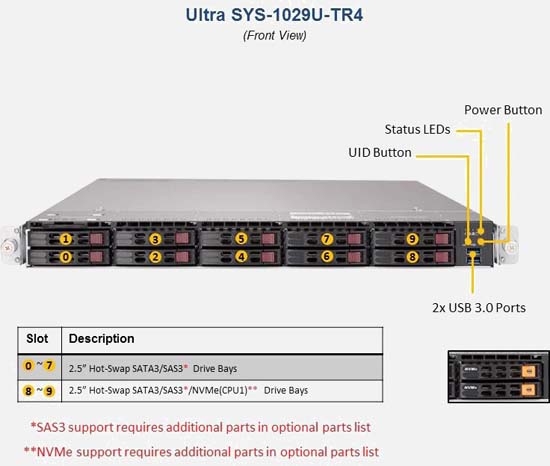

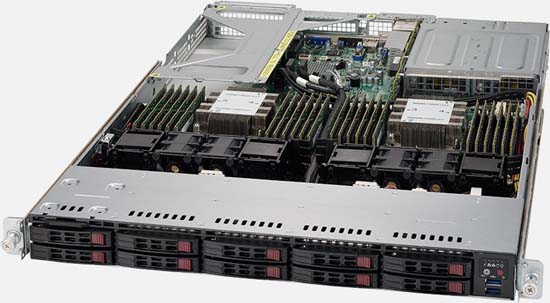

Supermicro SuperServer 1029U-TR4 SYS-1029U-TR4

Optimised for Virtualisation, Cloud Computing, High End Enterprise Server. 2x PCI-E 3.0 x16 slots, 4x Gigabit Ethernet ports. 8x Heavy Duty Fans w/ Optimal Fan Speed Control. Redundant Power Option.

  • Virtualization
  • Cloud Computing
  • High End Enterprise Server
  • Dual socket P (LGA 3647) supports Intel Xeon Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24 DIMM slots
  • 2 PCI-E 3.0 x16 slots (FH, 10.5" L), 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
  • 4 Gigabit Ethernet ports
  • 10 Hot-swap 2.5" Drive Bays; 10 SATA3 (2 hybrid ports - 2 NVMe opt.)
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Power Supplies Platinum Level (94%+)



Loading Configurator...

Prices for products are subject to change without notice.

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 3TB of RAM

Equipable with up to a monstrous 3TB of RAM, allowing for super fast and ultra efficient multi-tasking for even the most demanding of applications.

Optimised For Cloud Computing

Optimised for cloud computing. Cloud computing provides a variety of advantages including better security, better TCO, 24 hour access and easy implementation.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro SuperServer 1029U-TR4 | SYS-1029U-TR4 features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 2.5" Drives

The Supermicro SuperServer 1029U-TR4 | SYS-1029U-TR4 can be configured with 2.5" drives, a more space efficient and low noise option. These drives also offer energy savings and increased flexibility.

Integrated Quad Gigabit Ethernet

The integrated quad gigabit ethernet network adapter delivers performance and reliability. This server is free from vendor lock-in and features wide ranging hardware and software compatibility.


A 1U Supermicro SuperServer based on 2x 2nd Gen Intel Xeon Scalable Processor (X11) range of processors, the Supermicro SuperServer 1029U-TR4 | SYS-1029U-TR4 is configurable with up to 8x Hot-Swap Drives drive bays, and designed for optimal performance with 24x 3200Mhz DDR4 memory sockets .

The Supermicro SuperServer 1029U-TR4 | SYS-1029U-TR4 supports the Intel Xeon Scalable Processors 2nd Generation family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 1029U-TR4 | SYS-1029U-TR4 boasts 3 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer 1029U-TR4 | SYS-1029U-TR4 Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: 2nd Gen Intel Xeon Scalable Processor (X11)
  • Range: Cloud Computing Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 2.5" Drives
  • Maximum RAM Capacity: 3.1TB
