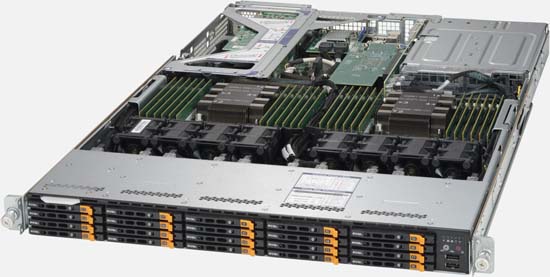

Supermicro SYS-1029UZ-TN20R25M SuperServer | 1029UZ-TN20R25M®

The Supermicro SYS-1029UZ-TN20R25M, optimised for virtualisation, can be configured with 2.5” hot-swappable drive bays.

  • Virtualization
  • Cloud Computing
  • High Density Enterprise Server
  • Software Defined Storage
  • Dual Socket P (LGA 3647) support 2nd Gen. Intel Xeon Scalable processors (Cascade Lake/Skylake)‡
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane™ DCPMM
  • Up to 2 PCI-E 3.0 x8 slots (FH, FL); For 20 NVMe configuration, only 1 PCI-E 3.0 x8 is available For 18 NVMe configuration, 2 PCI-E 3.0 x8 will be available
  • 2x 25G SFP28 Ethernet ports
  • 20 Hot-swap 2.5" 7mm drive bays; up to 20 NVMe (CPU1: 8 NVMe + 2 NVMe/SAS/SATA3 hybrid, CPU2: 10 NVMe); 1 M.2 NVMe port, Optional extra M.2 NVMe and SATA3 ports
  • 8 Heavy duty fans w/ optimal fan speed control; 2 air shrouds
  • 1600W Redundant Power Supplies Titanium Level (96%)

Configure From £4,686.69  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice.

Supermicro SYS-1029UZ-TN20R25M SuperServer | 1029UZ-TN20R25M Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 6TB Of RAM

Equipable with up to an huge 6TB of RAM, which allows for quick and effective multi-tasking for even the most RAM intensive applications.

Optimised For Virtualisation

Designed to excel at virtualisation. You can use virtual machines for testing, to save physical space, to reduce costs, for hardware for increased compatibility and more.

Configure With Hot-Swap Drives

The Supermicro SYS-1029UZ-TN20R25M SuperServer | 1029UZ-TN20R25M features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 2.5" Drives

The Supermicro SYS-1029UZ-TN20R25M SuperServer | 1029UZ-TN20R25M can be configured with 2.5" drives, a more space efficient and low noise option. These drives also offer energy savings and increased flexibility.

Featuring Dual 25GbE SFP28

Featuring a Dual 25GbE SFP28 network adapter, which delivers impressive performance. This server is free from vendor lock-in and features wide ranging hardware and software compatibility.


The Supermicro SYS-1029UZ-TN20R25M features security without compromise, utilising a number of technologies that combine to fully safeguard your system. It also features a Dual 25GbE SFP28 network adapter, which provides very solid performance.

Product SKUs
SYS-1029UZ-TN20R25M
  • SuperServer 1029UZ-TN20R25M (Black)
Motherboard

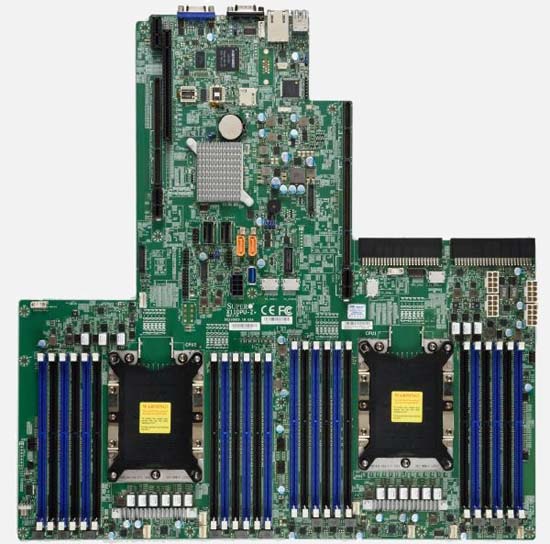

Super X11DPU-Z+
Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen. Intel Xeon Scalable Processors (Cascade Lake/Skylake),
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores with Intel HT Technology
Note BIOS version 3.0a or above is required to support 2nd Gen. Intel Xeon Scalable processors
System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel Optane DCPMM
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
On-Board Devices
Chipset
  • Intel C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Connectivity
  • 2 25GbE SFP28 ports via AOC-URN4-M2TS (Mellanox ConnectX-4 Lx EN)
  • Download networking card drivers here
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC
Input / Output
NVMe
  • 8 NVMe ports + 2 SAS/SATA3/NVMe Hybrid Ports (from CPU 1)
  • 10 NVMe ports (from CPU 2)
LAN
  • 2 25GbE SFP28 ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 3 USB 3.0 ports
    (2 rear, 1 Type A)
  • 2 USB 2.0 ports
    (front)
Video
  • 1 VGA port
Serial Port
  • 1 Serial header
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM
Management
Software
  • Intel Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SSM, SPM, SUM
  • SuperDoctor 5
  • WatchDog
Power Configurations
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-116UTQ20-R1K62-T
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 27.8" (706mm)
Gross Weight
  • 48 lbs (21.8 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off button
  • System UID button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • UID LED
Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x8 slots (FH, FL)
    For 20 NVMe configuration, only 1 PCI-E 3.0 x8 is available.
    For 18 NVMe configuration, 2 PCI-E 3.0 x8 will be available.

    (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
Drive Bays / Storage
Hot-swap
  • 20 Hot-swap 2.5" 7mm drive bays
  • 20 NVMe (CPU1: 8 NVMe + 2 NVMe/SAS/SATA3 hybrid ports, CPU2: 10 NVMe ports)
M.2
  • 1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110)
  • 1 M.2 M-Key SATA3 via optional cable CBL-SAST-0538 and plastic stand-off FST-SCRW-0074L (2240/2260/2280/22110)
  • 2 M.2 PCI-E 3.0 x4 M-Key NVMe via optional add-on card AOC-SLG3-2M2 (2260/2280/22110)
System Cooling
Fans
  • 8 Heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shroud
Power Supply
1600W Redundant Power Supplies with PMBus
Total Output Power
  • 1600W/1000W
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 13 - 9A / 50-60Hz
  • 200-240Vac / 10 - 8A / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100-127Vac)
  • Max: 133A / Min: 0A (200-240Vac)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification UL/cUL/CB/BSMI/CE/CCC
Titanium Level
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C ~ 35C (50F ~ 95F)
  • Non-operating Temperature:
    -40C to 60C (-40F to 140F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

A 1U Supermicro SuperServer based on 2x Intel Intel Xeon Scalable Processors range of processors, the Supermicro SYS-1029UZ-TN20R25M SuperServer | 1029UZ-TN20R25M is configurable with up to 0x Hot-Swap Drives drive bays, and designed for optimal performance with 24x 2666MHz, 2933MHz DDR4 memory sockets .

The Supermicro SYS-1029UZ-TN20R25M SuperServer | 1029UZ-TN20R25M supports the Intel Intel Xeon Scalable Processors family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SYS-1029UZ-TN20R25M SuperServer | 1029UZ-TN20R25M boasts 2 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SYS-1029UZ-TN20R25M SuperServer | 1029UZ-TN20R25M Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: Intel Xeon Scalable Processors
  • Range: Virtualisation Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 2.5" Drives
  • Maximum RAM Capacity: 3.1TB
