Supermicro SuperServer 2029P-C1R | SYS-2029P-C1R®

Configure a Supermicro SuperServer 2029P-C1R | SYS-2029P-C1R

  • Dual socket P (LGA 3647) supports Intel Xeon Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM slots
  • 4 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 slots, support 5 low-profile AOCs
  • 8x 2.5" SAS3 & 8x 2.5" SATA3 Hot-swap Drive Bays, optional DVD-ROM drive, optional support 2 NVMe/SSD/HDD 2.5" fix drives, 1 M.2 support
  • 2x 1GbE LAN ports with Intel X722
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
  • 2 SuperDOM, 1 VGA, 2 COM, 2 USB 3.0, 4 USB 2.0, 1 Type A
  • 3 Heavy duty 8cm fans with PWM fan speed and cooling zone control
  • 1200W Redundant Power Supplies Titanium Level (96%)

Configure From £1,826.74  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice.

Supermicro SuperServer 2029P-C1R | SYS-2029P-C1R Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 2TB Of RAM

Equipable with up to a tremendous 2TB of RAM, allowing for super fast and ultra efficient multi-tasking for even the most demanding of applications.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro SuperServer 2029P-C1R | SYS-2029P-C1R features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro SuperServer 2029P-C1R | SYS-2029P-C1R with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.

Dual 1GbE LAN ports via Intel X722

Featuring Dual 1GbE LAN ports via Intel X722, this network adapter delivers cost effective performance. This server is not vendor locked and features wide ranging hardware and software compatibility.


[[
Product SKUs
SYS-2029P-C1R
  • SuperServer 2029P-C1R (Black)
Motherboard

Super X11DPi-N
Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • Intel Xeon Scalable Processors,
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores with Intel HT Technology
System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type
  • 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset
  • Intel C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
SAS
  • Broadcom 3108 SAS3 (12Gbps) controller;
    HW RAID 0, 1, 5, 6, 10, 50, 60
Network Controllers
  • Dual 1GbE LAN with Intel X722
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC
Input / Output
SATA
  • 8 SATA3 (6Gbps) ports
SAS
  • 8 SAS3 (12Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (2 rear)
  • 4 USB 2.0 ports (2 rear, 2 front)
  • 1 USB Type A
Video
  • 1 VGA Connector
Serial Port / Header
  • 2 Fast UART 16550 serial
  • 2 COM Ports (1 rear, 1 front)
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
  • Intel Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SSM, SPM, SUM
  • SuperDoctor 5
  • Watchdog
Power Configurations
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-213AC-R1K23LPB
Dimensions and Weight
Height
  • 3.5" (89mm)
Width
  • 17.2" (437mm)
Depth
  • 24.8" (630mm)
Package
  • 11" (H) x 29" (W) x 38.7" (D)
Weight
  • Net Weight: 38 lbs (17.4 kg)
  • Gross Weight: 63 lbs (28.8 kg)
Available Color
  • Black

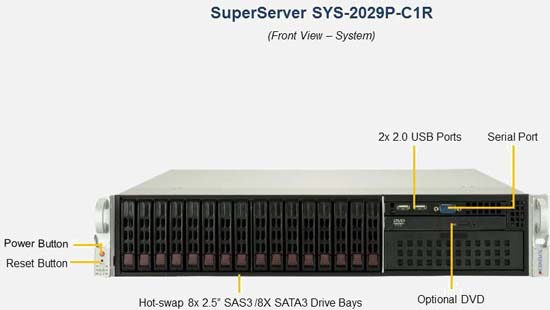

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED
Expansion Slots
PCI-Express
  • 4 PCI-E 3.0 x16 slots
  • 1 PCI-E 3.0 x8 slot
  • Support total of 5 Low-profile AOC
Drive Bays
Hot-swap
  • 8x 2.5" SAS3 and 8x 2.5" SATA3 Hot-swap drive bays
Peripheral
  • Optional DVD-ROM drive supports 1x slim or 1x 5.25" DVD drive
Optional
  • Optional 2 NVMe/SSD/HDD 2.5" fix drives
  • 1 M.2 support
System Cooling
Fans
  • 3 Heavy duty 8cm fans with PWM fan speed and cooling zone control
Power Supply (76mm Width)
1200W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W/1200W
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
Input
  • 100-127Vac / 15-12A / 50-60Hz
  • 200-240Vac / 8.5-7A / 50-60Hz
  • 200-240Vdc / 8.5-7A (for CCC only)
+12V
  • Max: 83A / Min: 0A (100-127Vac)
  • Max: 100A / Min: 0A (200-240Vac)
  • Max: 100A / Min: 0A (200-240Vdc)
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • 19 Pairs Gold Finger Connector
Certification
UL/cUL/CB/BSMI/CE/CCC
Titanium Level
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C ~ 35C (50F ~ 95F)
  • Non-operating Temperature:
    -40C to 60C (-40F to 140F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

]]

A 2U Supermicro SuperServer based on 2x Intel Intel Xeon Scalable Processors range of processors, the Supermicro SuperServer 2029P-C1R | SYS-2029P-C1R is configurable with up to 8x Hot-Swap Drives drive bays, and designed for optimal performance with 16x 2666MHz, 2933MHz DDR4 memory sockets .

The Supermicro SuperServer 2029P-C1R | SYS-2029P-C1R supports the Intel Intel Xeon Scalable Processors family in a high-density 2U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 2029P-C1R | SYS-2029P-C1R boasts 5 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer 2029P-C1R | SYS-2029P-C1R Specs
  • Brand: Supermicro
  • U Size: 2U
  • Processor Family: Intel Xeon Scalable Processors
  • Range: Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 2TB
