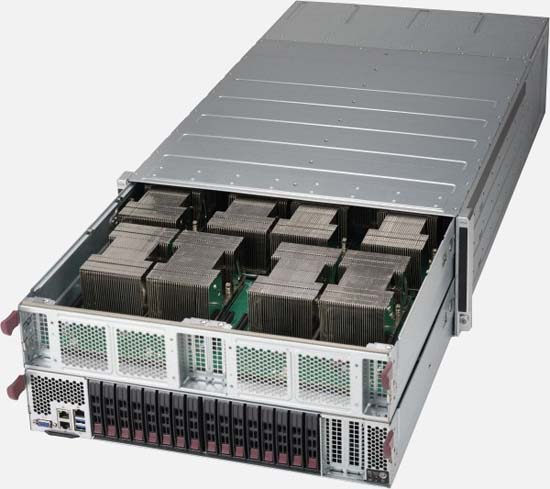

Supermicro SuperServer 4029GP-TXRT | SYS-4029GP-TXRT®

Configure a Supermicro SuperServer 4029GP-TXRT | SYS-4029GP-TXRT

  • - Artificial Intelligence - Big Data Analytics - High-performance Computing - Research Lab/National Lab - Astrophysics, Business Intelligence
  • Dual socket P (LGA 3647) supports Intel Xeon Scalable Processors, 3 UPI up to 10.4GT/s
  • Up to 3TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 24 DIMM slots
  • 4 PCI-E 3.0 x16 (LP) (GPU tray for GPUDirect RDMA), 2 PCI-E 3.0 x16 (LP, CPU tray)
  • Support 8 Tesla P100 with 160GB/s NVLINK
  • Dual 10GBase-T LAN with Intel X550
  • 16 Hot-swap 2.5" SAS/SATA drives; Supports 8 NVMe drives
  • 8x 92mm cooling fans
  • 2200W Redundant (2+2) Power Supplies; Titanium Level (96%+)

Configure From £6,889.75  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice.

Supermicro SuperServer 4029GP-TXRT | SYS-4029GP-TXRT Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 3TB of RAM

Equipable with up to a monstrous 3TB of RAM, allowing for super fast and ultra efficient multi-tasking for even the most demanding of applications.

Server Optimised For GPU

Optimised for GPU, this system is capable of generating hugely parallel processing power, delivering extreme optimisation for the most intensive applications.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro SuperServer 4029GP-TXRT | SYS-4029GP-TXRT features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 2.5" Drives

The Supermicro SuperServer 4029GP-TXRT | SYS-4029GP-TXRT can be configured with 2.5" drives, a more space efficient and low noise option. These drives also offer energy savings and increased flexibility.

Dual 10GBase-T LAN ports via Intel X722

This Dual 10GBase-T LAN network adapter delivers high performance. This server is completely free from vendor lock-in and features wide ranging hardware and software compatibility.


Product SKUs
SYS-4029GP-TXRT
  • SuperServer 4029GP-TXRT (Black)
Motherboard

Super X11DGO-T
Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • Intel Xeon Scalable Processors,
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores with Intel HT Technology
GPU Support
  • NVIDIA Tesla P100 SXM2 GPU
System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 3TB ECC 3DS LRDIMM, 1TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type
  • 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset
  • Intel C621 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers
  • Dual Port 10GBase-T from Intel X550 Ethernet Controller
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC
Input / Output
SATA
  • 8 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (front)
Video
  • 1 VGA Connector
COM Port
  • 1 COM port (header)
System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM
BIOS Features
  • Intel Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • SSM, SPM, SUM
  • SuperDoctor 5
  • Watchdog
Chassis
Form Factor
  • 4U Rackmountable
  • Rackmount Kit (MCP-290-00057-0N)
Model
  • CSE-R422BG-1
Dimensions
Height
  • 7.0" (178mm)
Width
  • 17.6" (447mm)
Depth
  • 31.7" (805mm)
Weight
  • Net Weight: 80 lbs (36.2 kg)
  • Gross Weight: 135 lbs (61.2 kg)
Available Colors
  • Black
Drive Bays
Hot-swap
  • 16 Hot-swap 2.5" SAS/SATA drive bays
Expansion Slots
PCI-Express
  • 4 PCI-E 3.0 x16 (LP, GPU tray for GPUDirect RDMA) slots
  • 2 PCI-E 3.0 x16 (LP, CPU tray) slots
Backplane
16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5" SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices
System Cooling
Fans
  • 8x 92mm Cooling Fans
Power Supply
2200W Redundant Titanium Level Power Supplies with PMBus
Total Output Power
  • 1200W/1800W/1980W/2090W/2200W
    (UL/cUL only)
Dimension
(W x H x L)
  • 106.5 x 82.4 x 203.5 mm
Input
  • 1200W: 100-127 Vac / 14-11 A / 50-60 Hz
  • 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
  • 1980W: 220-230 Vac / 10-9.5 A / 50-60 Hz
  • 2090W: 230-240 Vac / 10-9.8 A / 50-60 Hz
  • 2200W: 220-240 Vac / 12-11 A / 50-60 Hz (UL/cUL only)
  • 2090W: 180-220 Vac / 14-11 A / 50-60 Hz (UL/cUL only)
  • 2090W: 230-240 Vdc / 10-9.8 A (CCC only)
+12V
  • Max: 100A / Min: 0A (1200W)
  • Max: 150A / Min: 0A (1800W)
  • Max: 165A / Min: 0A (1980W)
  • Max: 174.17A / Min: 0A (2090W)
  • Max: 183.3A / Min: 0A (2200W)
  • Max: 174.17A / Min: 0A (2090W)
12Vsb
  • Max: 2A / Min: 0A
Output Type
  • Gold Finger (connector on M/P)
Certification UL/cUL/CB/BSMI/CE/CCC
Titanium Level
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C ~ 35C (50F ~ 95F)
  • Non-operating Temperature:
    -40C to 60C (-40F to 140F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

A 4U Supermicro SuperServer based on 2x Intel Intel Xeon Scalable Processors range of processors, the Supermicro SuperServer 4029GP-TXRT | SYS-4029GP-TXRT is configurable with up to 16x Hot-Swap Drives drive bays, and designed for optimal performance with 24x 2666MHz, 2933MHz DDR4 memory sockets .

The Supermicro SuperServer 4029GP-TXRT | SYS-4029GP-TXRT supports the Intel Intel Xeon Scalable Processors family in a high-density 4U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 4029GP-TXRT | SYS-4029GP-TXRT boasts 6 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer 4029GP-TXRT | SYS-4029GP-TXRT Specs
  • Brand: Supermicro
  • U Size: 4U
  • Processor Family: Intel Xeon Scalable Processors
  • Range: GPU Servers Supermicro SuperServers
  • High-Density Twin Servers: Single Server
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 2.5" Drives
  • Maximum RAM Capacity: 3.1TB
