Supermicro SuperServer 5019P-MR | SYS-5019P-MR®

Configure a Supermicro SuperServer 5019P-MR | SYS-5019P-MR

  • Web Hosting, VM
  • Compact Network Appliance
  • Single socket P (LGA 3647) supports Intel Xeon Scalable Processors
  • Intel C621 chipset
  • 4 Hot-swap 3.5" SATA3 bays w/ RAID
  • Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz; 6 DIMM slots
  • 1 PCI-E 3.0 x16 slot (FH, HL)
  • 2x 1GbE with Marvell 88E1512
  • Integrated IPMI 2.0 and KVM with Dedicated LAN
  • 1 VGA, 2 COM, 5 USB 3.0, 6 USB 2.0
  • 400W Redundant Platinum Power Supplies w/ BBP option

Configure From £971.21  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice.

Supermicro SuperServer 5019P-MR | SYS-5019P-MR Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Single Processor

Designed for server applications where multi processors are not required. Single processors are an affordable, cost-effective and reliable option.

Configure With Up to 768GB of RAM

Equipable with up to 768GB of RAM, allowing for fast and effective multi-tasking for high level applications.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro SuperServer 5019P-MR | SYS-5019P-MR features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro SuperServer 5019P-MR | SYS-5019P-MR with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.

Integrated Dual Gigabit LAN

Featuring an Integrated Dual Gigabit LAN network adapter which delivers reliability and performance. This server is not vendor locked and features wide ranging hardware and software compatibility.


[[
Product SKUs
SYS-5019P-MR
  • SuperServer 5019P-MR (Black)
Motherboard

Super X11SPM-F
Processor/Cache
CPU
  • Single Socket P (LGA 3647)
  • Intel Xeon Scalable Processors
  • Support CPU TDP 70-165W with IVR
Cores
  • Up to 28 Cores with Intel HT Technology
System Memory
Memory Capacity
  • 6 DIMM slots
  • Up to 768GB ECC 3DS LRDIMM, 192GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type
  • 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset
  • Intel C621 chipset
SATA
  • SATA3 (6Gbps) via C621 controller
  • RAID 0, 1, 5, 10 support
Network Controllers
  • Dual Gigabit Ethernet LAN with Marvell 88E1512
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC
Input / Output
SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 1GbE LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 3.0 ports (2 front, 2 rear)
  • 2 USB 2.0 ports (rear)
Video
  • 1 VGA port
Serial Port / Header
  • 2 COM ports (1 rear, 1 header)
SuperDOM
  • 2 SuperDOM (Disk on Module) ports with built-in power
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
  • Intel Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SPM, SUM
  • SuperDoctor 5
  • Watch Dog
Power Configurations
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-813MFTQC-R407CB
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 19.8" (503mm)
Package
  • 8.5" (H) x 24" (W) x 29.5" (D)
Weight
  • Gross Weight: 30.4 lbs (13.8 kg)
  • Net Weight: 17.6 lbs (8 kg)
Available Colors
  • Black

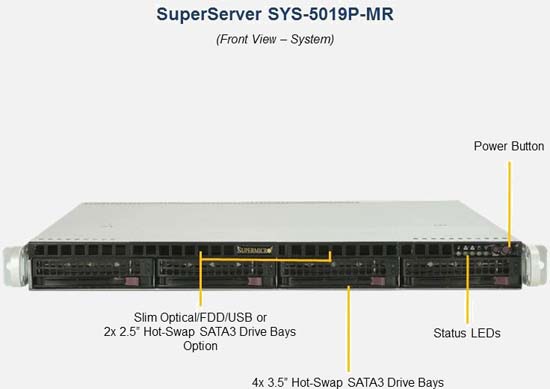

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat LED
Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x16 slot (FH, HL)
Drive Bays
Hot-swap
  • 4 Hot-swap 3.5" SATA3 drive bays
M.2
  • Interface: PCIe 3.0 x4
  • Form Factor: 2242, 2280
Peripheral Drives
Optional
  • 1 Slim DVD-ROM drive
  • 1 USB + COM port tray
System Cooling
Fans
  • 4x 40x28mm PWM fans; 2x fans for AOC cooling
  • Optional 2 fans for AOC cooling
AC/DC240V Input Redundant Power Supplies
400W 1U Redundant Power Supplies with PMbus
Total Output Power
  • 400W
Dimension
(W x H x L)
  • 54.5 x 40 x 220 mm
Input
  • 100 - 240Vac / 6.0 - 3.0A / 50-60Hz
  • 200 - 240Vdc / 3.4 - 3.2A (CCC Only)
+12V
  • Max: 33A / Min: 0.5A
+5V sb
  • Max: 3A / Min: 0A
Output Type
  • Gold Finger Connector Mating with Molex 45984-4343
Certification
UL/cUL/CB/CE/BSMI/CCC
Platinum Level Certified
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C to 35C (50F to 95F)
  • Non-operating Temperature:
    -40C to 70C (-40F to 158F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
]]

A 1U Supermicro SuperServer based on 1x Intel Intel Xeon Scalable Processors range of processors, the Supermicro SuperServer 5019P-MR | SYS-5019P-MR is configurable with up to 4x Hot-Swap Drives drive bays, and designed for optimal performance with 6x 2666MHz, 2933MHz DDR4 memory sockets .

The Supermicro SuperServer 5019P-MR | SYS-5019P-MR supports the Intel Intel Xeon Scalable Processors family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 5019P-MR | SYS-5019P-MR boasts 1 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer 5019P-MR | SYS-5019P-MR Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: Intel Xeon Scalable Processors
  • Range: Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 768GB
