Supermicro SuperServer 6019P-WT8 | SYS-6019P-WT8®

Configure a Supermicro SuperServer 6019P-WT8 | SYS-6019P-WT8

  • Web Server, Firewall Apps.
  • Corporate-Wins, DNS, Print, Login
  • Gateway, provisioning servers
  • Compact Network Appliance
  • Cloud Computing
  • Dual socket P (LGA 3647) supports Intel Xeon Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 1.5TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 12 DIMM slots
  • 2 PCI-E 3.0 x16 (FHHL) slots, 1 PCI-E 3.0 x8 (LP) slot, 1 PCI-E 3.0 x16 for Add-on-Module, 1 PCI-E M.2 SSD slot
  • 8x 3.5" and 2x 2.5" Fixed drive bays
  • 2 GbE LAN ports via Intel C621
  • 1 VGA, 4 USB 3.0 (rear)
  • 600/650W Multi-output Power Supply Platinum Level High-efficiency

Configure From £1,071.60  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice.

Supermicro SuperServer 6019P-WT8 | SYS-6019P-WT8 Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 1.5TB of RAM

Equipable with up to 1.5TB of RAM, which allows for fast and effective multi-tasking for even the most RAM intensive of applications.

Optimised For Cloud Computing

Optimised for cloud computing. Cloud computing provides a variety of advantages including better security, better TCO, 24 hour access and easy implementation.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro SuperServer 6019P-WT8 | SYS-6019P-WT8 features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro SuperServer 6019P-WT8 | SYS-6019P-WT8 with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.


Product SKUs
SYS-6019P-WT8
  • SuperServer 6019P-WT8 (Black)
Motherboard

Super X11DDW-L
Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • Intel Xeon Scalable Processors,
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-165W with IVR
Cores
  • Up to 28 Cores with Intel HT Technology
System Memory
Memory Capacity
  • 12 DIMM slots
  • Up to 1.5TB ECC 3DS LRDIMM, 768GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type
  • 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset
  • Intel C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Dual LAN with Gigabit Ethernet from C621
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC

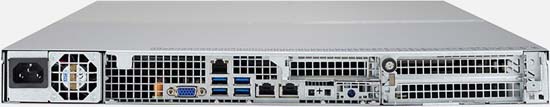

Input / Output
SATA
  • 10 SATA3 (6 Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 3.0 ports (rear)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM
Management
Software
  • Intel Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • SSM, SPM, SUM
  • SuperDoctor 5
  • Watch Dog
Power Configurations
  • ACPI / APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-801STS-656DP
Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 1.7" (43mm)
Depth
  • 23.5" (597mm)
Gross Weight
  • 46 lbs (20.9kg)
Available Colors
  • Black

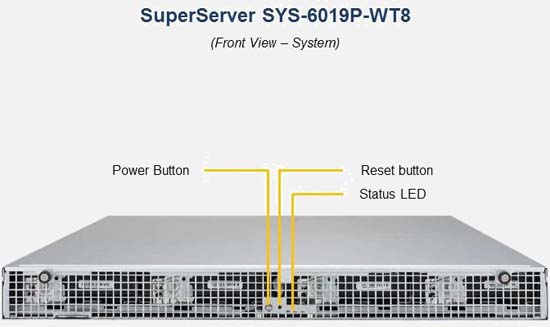

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED
Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 (FHHL) slots
  • 1 PCI-E 3.0 x8 (LP) slot
  • 1 PCI-E 3.0 x16 for Add-on-Module (AOM)
  • 1 PCI-E M.2 SSD slot
Drive Bays
Internal
  • 8 Fixed 3.5" drive bays
  • 2 Fixed 2.5" drive bays
Backplane
SATA HDD Backplane
System Cooling
Fans
  • 6 Counter-rotating 4cm PWM fans
Power Supply
600W/650W Multi-output power supply w/ PFC for Rear I/O
AC Input
  • 100-127V, 50-60Hz
  • 200-240V, 50-60Hz
DC Output
  • +3.3V: 15A (Max.); 0.5A (Min.)
  • +5V: 18A (Max.); 0.5A (Min.)
  • +5V standby: 3A
  • +12V: 49A (100-127Vac)
    54A (200-240Vac)
  • -12V: 0.5A
Certification
Platinum Certified
(Cert. in progress)
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C ~ 35C (50F ~ 95F)
  • Non-operating Temperature:
    -40C to 60C (-40F to 140F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

A 1U Supermicro SuperServer based on 2x Intel Xeon Scalable Processors range of processors, the Supermicro SuperServer 6019P-WT8 | SYS-6019P-WT8 is configurable with up to 8x Hot-Swap Drives drive bays, and designed for optimal performance with 12x 2666MHz, 2933MHz DDR4 memory sockets .

The Supermicro SuperServer 6019P-WT8 | SYS-6019P-WT8 supports the Intel Xeon Scalable Processors family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 6019P-WT8 | SYS-6019P-WT8 boasts 2 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer 6019P-WT8 | SYS-6019P-WT8 Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: Intel Xeon Scalable Processors
  • Range: Cloud Computing Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 1.5TB
