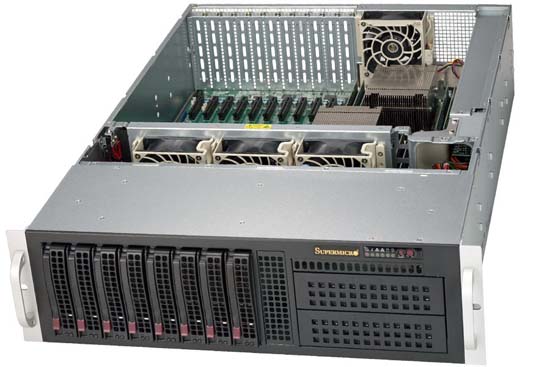

Supermicro SuperServer 6039P-TXRT | SYS-6039P-TXRT®

Configure a Supermicro SuperServer 6039P-TXRT | SYS-6039P-TXRT

  • Industrial Server Solutions
  • Surveillance DCR
  • GPU support server
  • Flash Array Server
  • Data Acquisitions
  • Video and Music Production
  • Dual Socket P (LGA 3647) support 2nd Gen. Intel Xeon Scalable processors (Cascade Lake/Skylake)‡
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane™ DCPMM
  • 2 PCI-E 3.0 x16 slots, 2 PCI-E 3.0 x16 slots (or 4 PCI-E 3.0 x8), 4 PCI-E 3.0 x8 slots, 1 PCI-E 3.0 x4 (in x8 slot)
  • 8 Hot-swap 3.5" drive bays, 2 5.25" drive bays, 1 slim DVD-ROM drive bay, 1 FDD bay
  • 2x 10GBase-T LAN ports with Intel X550-AT2
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
  • 1 PCI-E 3.0 x4 M.2 2280 slot from PCH
  • 3 middle fans & 1 rear exhaust fan
  • 980W Redundant Power Supplies Platinum Level (94%)

Configure From £2,150.05  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice.

Supermicro SuperServer 6039P-TXRT | SYS-6039P-TXRT Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 4TB Of RAM

Equipable with up to an gigantic 4TB of RAM, which allows for fast and efficient multi-tasking for the most RAM intensive applications.

Optimised For General Purpose

Optimised for general purpose, this server is very effective for consistent all around use. if you require a server that can perform a wide variety of tasks well, this server is for you.

Configure With Hot-Swap Drives

The Supermicro SuperServer 6039P-TXRT | SYS-6039P-TXRT features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro SuperServer 6039P-TXRT | SYS-6039P-TXRT with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.

Intel X550-AT2 Dual Port 10GBase-T

Featuring an Intel X550-AT2 Dual Port 10GBase-T network adapter which delivers high performance. This server is fully free from vendor lock-in and features wide ranging hardware and software compatibility.


[[
Product SKUs
SYS-6039P-TXRT
  • SuperServer 6039P-TXRT (Black)
Motherboard

Super X11DPX-T
Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen. Intel Xeon Scalable Processors (Cascade Lake/Skylake),
    3 UPI up to 10.4GT/s
  • Support CPU TDP 205W
Cores
  • Up to 28 Cores with Intel HT Technology
Note BIOS version 3.0a or above is required to support 2nd Gen. Intel Xeon Scalable processors
System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel Optane DCPMM
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
On-Board Devices
Chipset
  • Intel C621 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers
  • Intel X550-AT2 Dual Port 10GBase-T
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC
Input / Output
Serial ATA
  • 8 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
  • 2 USB 2.0 ports (rear)
Serial Port / Header
  • 1 COM port
VGA
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
TPM
  • 1 TPM 2.0 Header
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
  • Intel Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SSM, SPM, SUM
  • SuperDoctor 5
Power Configurations
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 3U Rackmount
Model
  • CSE-835XTQ-R982B
Dimensions
Width
  • 17.2" (437mm)
Height
  • 5.2" (132mm)
Depth
  • 25.5" (648mm)
Gross Weight
  • 72 lbs (32.6kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • System information (overheat/UID) LED
  • Power fail LED
Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 slots
  • 2 PCI-E 3.0 x16 slots (or 4 PCI-E 3.0 x8 by MUX)
  • 4 PCI-E 3.0 x8 slots
  • 1 PCI-E 3.0 x4 (in x8 slot)
Drive Bays
Hot-swap
  • 8 Hot-swap 3.5" drive bays
Others
  • 2 5.25" drive bays
Peripheral Bay
Peripheral Bay
  • 1 slim DVD-ROM drive
Backplane
1 SAS/SATA backplane
System Cooling
Fans
  • 3 Middle fans
  • 1 Rear exhaust fan
Power Supply with Power Distributor
850W/980W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus
AC Input
  • 100-140 V, 50-60 Hz, 11.5-6.5 Amp
  • 180-240 V, 50-60 Hz, 6.5-4.5 Amp
DC Output
  • 4 Amp @ +5V Standby
  • 70 Amp @ +12V (100-140Vac)
  • 81 Amp @ +12V (180-240Vac)
With Power Distributor
  • +5V: 30 Amp
  • +3.3V: 28 Amp
  • -12V: 0.6 Amp
Certification
Platinum Level

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C ~ 35C (50F ~ 95F)
  • Non-operating Temperature:
    -40C to 60C (-40F to 140F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

]]

A 3U Supermicro SuperServer based on 2x Intel Intel Xeon Scalable Processors range of processors, the Supermicro SuperServer 6039P-TXRT | SYS-6039P-TXRT is configurable with up to 8x Hot-Swap Drives drive bays, and designed for optimal performance with 16x 2666MHz, 2933MHz DDR4 memory sockets .

The Supermicro SuperServer 6039P-TXRT | SYS-6039P-TXRT supports the Intel Intel Xeon Scalable Processors family in a high-density 3U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 6039P-TXRT | SYS-6039P-TXRT boasts 11 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer 6039P-TXRT | SYS-6039P-TXRT Specs
  • Brand: Supermicro
  • U Size: 3U
  • Processor Family: Intel Xeon Scalable Processors
  • Range: General Purpose Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 2TB
