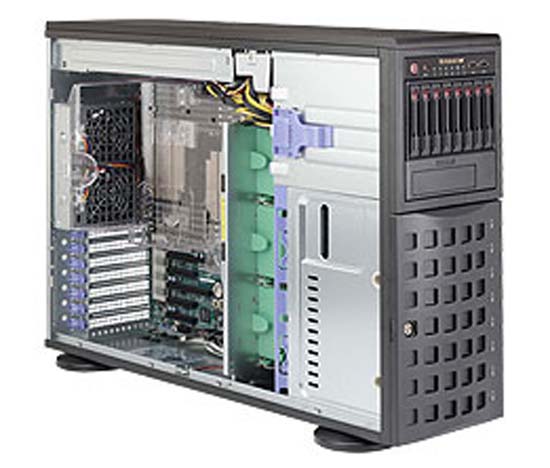

Supermicro SuperServer 7048R-C1R | SYS-7048R-C1R®

Configure a Supermicro SuperServer 7048R-C1R | SYS-7048R-C1R

  • Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3 family; QPI up to 9.6GT/s
  • Up to 1TB reg. ECC DDR4 2133MHz; 16x DIMM sockets
  • 1x PCI-E 3.0 x16, 6x PCI-E 3.0 x8 slot
  • Intel i350 Dual port GbE LAN
  • I/O ports: 2x SuperDOM, 1x VGA, 2x COM, 2x USB 3.0, 4x USB 2.0
  • 8x 3.5" Hot-swap SATA3 HDD Bays; 8x 2.5" Hot-swap SAS3 drives in mobile rack; 1x 5.25" drive bay
  • 920W Redundant Power Supplies Platinum Level (94%)
  • Tower or Rackmount

Configure From £1,484.10




Loading Configurator...

Prices for products are subject to change without notice.

Supermicro SuperServer 7048R-C1R | SYS-7048R-C1R Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 1TB Of RAM

Equipable with up to a massive 1TB of RAM, allowing for fast and efficient multi-tasking for the most demanding applications.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro SuperServer 7048R-C1R | SYS-7048R-C1R features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 2.5" Drives

The Supermicro SuperServer 7048R-C1R | SYS-7048R-C1R can be configured with 2.5" drives, a more space efficient and low noise option. These drives also offer energy savings and increased flexibility.

Configure with 3.5" Drives

Configure the Supermicro SuperServer 7048R-C1R | SYS-7048R-C1R with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.

Featuring Dual 10GBase-T

The Dual 10GBase-T network adapter provides high performance. This server is free from vendor lock-in and features wide ranging hardware and software compatibility.


Product SKUs
SYS-7048R-C1R
  • SuperServer 7048R-C1R (Black)
Motherboard

Super X10DRH-C
Processor/Cache
CPU
  • Intel Xeon processor E5-2600 v3 family (up to 145W TDP **)
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 18 Cores / Up to 45MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note ** Please contact your Supermicro sales representative for additional details.
System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM sockets
  • Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type
  • 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel C612 Express chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
SAS
  • LSI 3108 SAS3 (12Gbps) controller;
    HW RAID 0, 1, 5, 6, 10, 50, 60
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel i350 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Video
  • ASPEED AST2400 BMC
Input / Output
SATA
  • 8x SATA3 (6Gbps) ports
SAS
  • 8x SAS3 (12Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 ports (2 rear)
  • 4x USB 2.0 ports (2 rear, 2 front)
  • 1x USB Type A
Video
  • 1x VGA port
Serial Port / Header
  • 1x COM/Serial
DOM
  • 2x SuperDOM (Disk on Module) ports
Expansion Slots
PCI-Express
  • 1x PCI-E 3.0 x16 (Full-height, Full-length)
  • 6x PCI-E 3.0 x8 (Full-height, Full-length)
System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI
Chassis
Form Factor
  • 4U Rackmountable / Tower
  • Optional Rackmount Kit
Model
  • CSE-745TQ-R920B
Dimensions and Weight
Height
  • 17.2" (437mm)
Width
  • 7.0" (178mm)
Depth
  • 25.5" (648mm)
Package
  • 24" (H) x 14" (W) x 26.5" (D)
Weight
  • Net Weight: 56.5 lbs (25.6 kg)
  • Gross Weight: 74 lbs (33.57 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED
  • Power Fail LED
Ports
  • 2x USB Ports
Drive Bays
Hot-swap
  • 8x 3.5" Hot-swap SATA3 drive trays
  • 8x 2.5" Hot-swap SAS3 drives in mobile rack
Peripheral Bay
  • 1x 5.25" drive bay (optional devices)
SAS / SATA Backplane
SAS via backplane (BPN-SAS3-I28A) in Mobile rack
SATA via chassis HDD Backplane CSE-SAS-743TQ-O-P
System Cooling
Fans
  • 3x 8cm Hot-swap redundant PWM Cooling Fans
  • 2x 8cm Hot-swap Rear Exhaust PWM Fans & air shroud
Power Supply with Power Distributor
920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
AC Input
  • 100-240 V, 50-60 Hz, 11-4.5 Amp
DC Output
  • 4 Amp @ +5V standby
  • 75 Amp @ +12V
Certification Platinum Certified
PC Health Monitoring
CPU
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 6-Phase-switching voltage regulator
FAN
  • Total of five fan headers supporting up to 5 fans
  • 5x fans with tachometer status monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 5x fan connectors
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • System info. LED:
    UID indicator, fan fail/System Overheat
  • Suspend static indicator LED
  • UID/Remote LED
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C to 35C (50F to 95F)
  • Non-operating Temperature:
    -40C to 70C (-40F to 158F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

A 4U Supermicro SuperServer based on 2x E5 2600 v4 range of processors, the Supermicro SuperServer 7048R-C1R | SYS-7048R-C1R is configurable with up to 16x Hot-Swap Drives drive bays, and designed for optimal performance with 16x 2666MHz DDR4 memory sockets .

The Supermicro SuperServer 7048R-C1R | SYS-7048R-C1R supports the Xeon E5 2600 v4 Series Processors family in a high-density 4U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 7048R-C1R | SYS-7048R-C1R boasts 7 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer 7048R-C1R | SYS-7048R-C1R Specs
  • Brand: Supermicro
  • U Size: 4U
  • Processor Family: E5 2600 v4
  • Range: Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 2TB
