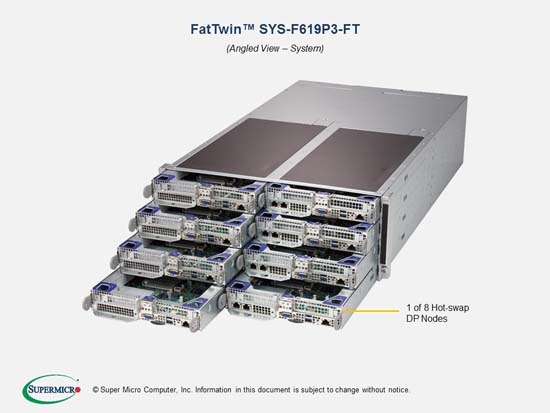

Supermicro SuperServer F619P3-FT | SYS-F619P3-FT®

Configure a Supermicro SuperServer F619P3-FT | SYS-F619P3-FT

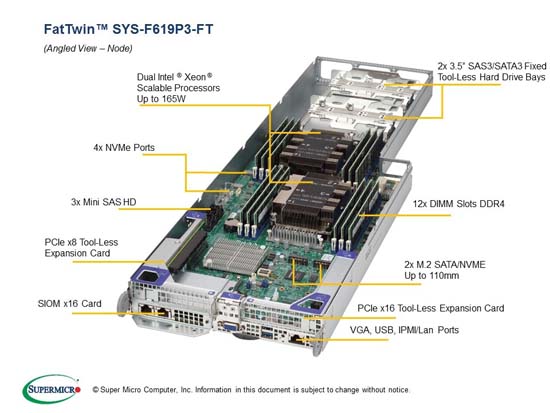

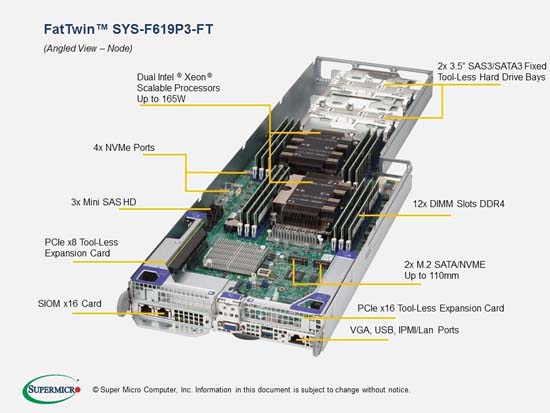

  • Dual Socket P (LGA 3647) support 2nd Gen. Intel Xeon Scalable processors (Cascade Lake/Skylake)‡
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane™ DCPMM
  • 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x16 (for SIOM )
  • 2 Fixed 3.5" SATA3 drive bays M.2 Interface: PCI-E 3.0 x4 M.2 Form Factor: 2260, 2280, 22110 M.2 Key: M-Key
  • Dual GbE ports via SIOM Network card, 1 dedicated IPMI LAN port (front)
  • 1 VGA, 2 USB 3.0 ports (front)
  • 8x 8cm 13.5k RPM rear fans per enclosure
  • 2200W Redundant Power Supplies Titanium Level (96% Efficiency)

Configure From £7,599.43  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice.

Supermicro SuperServer F619P3-FT | SYS-F619P3-FT Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 3TB of RAM

Equipable with up to a monstrous 3TB of RAM, allowing for super fast and ultra efficient multi-tasking for even the most demanding of applications.

Configure With Fixed Drives

The Supermicro SuperServer F619P3-FT | SYS-F619P3-FT can be configured with reliable fixed drives which are a cheaper alternative to hot-swappable drives, lowering the overall cost of the system.

Configure with 3.5" Drives

Configure the Supermicro SuperServer F619P3-FT | SYS-F619P3-FT with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.

Features SIOM Network Card

This server features a SIOM network card. This network card delivers high performance. This server is not vendor locked and features wide ranging hardware and software compatibility.


Product SKUs
SYS-F619P3-FT
  • SuperServer F619P3-FT (Black)
Motherboard

Super X11DPFF-SN
Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen. Intel Xeon Scalable Processors (Cascade Lake/Skylake),
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-165W with IVR
Cores
  • Up to 28 Cores with Intel HT Technology
Note BIOS version 3.0a or above is required to support 2nd Gen. Intel Xeon Scalable processors
System Memory
Memory Capacity
  • 12 DIMM slots
  • Up to 3TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel Optane DCPMM
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
On-Board Devices
Chipset
  • Intel C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Flexible networking via SIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC
Input / Output (per node)
SATA
  • 12 SATA3 (6Gbps) ports
LAN
  • SIOM flexible Network card
  • 1 RJ45 Dedicated IPMI LAN port (front)
USB
  • 2 USB 3.0 ports (front)
VGA
  • 1 VGA port (front)
System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
Management
Software
  • Intel Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • SuperDoctor 5
  • Watch Dog
Power Configurations
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-F418IF3-R2K20BP
Dimensions and Weight
Width
  • 17.63" (448mm)
Height
  • 6.96" (177mm)
Depth
  • 29" (737mm)
Package
  • 28.3" (W) x 15.0" (H) x 42.4" (D)
Weight
  • Net Weight: 150 lbs (68.04 kg)
  • Gross Weight: 200 lbs (90.71 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • Network activity LEDs
  • Information LED (Fan failure, Overheat)
Expansion Slots (per node)
PCI-Express
  • 1 PCI-E 3.0 x16 (Low-profile)
  • 1 PCI-E 3.0 x8 (Low-profile)
  • 1 PCI-E 3.0 x16 (SIOM)
Drive Bays (per node)
Fixed
  • 2 Fixed 3.5" SATA3 drive bays
M.2
  • M.2 Interface: PCI-E 3.0 x4
  • M.2 Form Factor: 2260, 2280, 22110
  • M.2 Key: M-Key
System Cooling
Fans

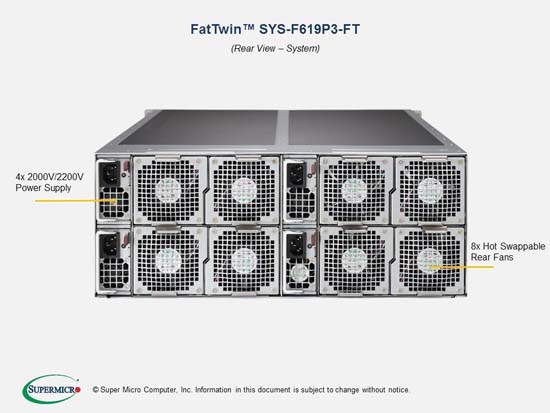

  • 8x 8cm 13.5k RPM rear fans per enclosure
Power Supply
2200W or 2000W Redundant Power Supplies with PMBus
Total Output Power and Input
  • 1200W with Input 100-127Vac
  • 1800W with Input 200-220Vac
  • 1980W with Input 220-230Vac
  • 2090W with Input 230-240Vac
  • 2200W with Input 220-240Vac (for UL/cUL use only)
  • 2090W with Input 230-240Vdc (for CCC only)
AC Input Frequency
  • 50-60Hz
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
+12V
  • Max: 100A / Min: 0A (100-127Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 174.17A / Min: 0A (230-240Vac)
  • Max: 183.3A / Min: 0A (220-240Vac)
5VSB
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification UL/cUL/CB/BSMI/CE/CCC
Titanium Level
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C ~ 35C (50F ~ 95F)
  • Non-operating Temperature:
    -40C to 60C (-40F to 140F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

A 4U Supermicro SuperServer based on 16x Intel Intel Xeon Scalable Processors range of processors, the Supermicro SuperServer F619P3-FT | SYS-F619P3-FT is configurable with up to 16x Fixed Drives drive bays, and designed for optimal performance with 96x 2666MHz, 2933MHz DDR4 memory sockets .

The Supermicro SuperServer F619P3-FT | SYS-F619P3-FT supports the Intel Intel Xeon Scalable Processors family in a high-density 4U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer F619P3-FT | SYS-F619P3-FT boasts 16 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer F619P3-FT | SYS-F619P3-FT Specs
  • Brand: Supermicro
  • U Size: 4U
  • Processor Family: Intel Xeon Scalable Processors
  • Range: Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Fixed Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 12.3TB
