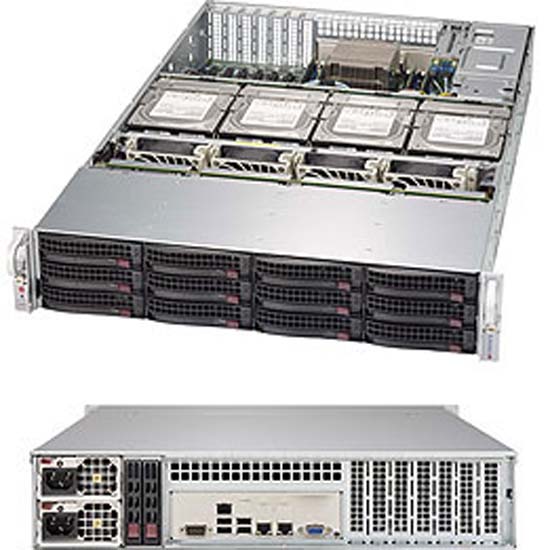

Supermicro SuperStorage Server 6028R-E1CR16T | SSG-6028R-E1CR16T®

Configure a Supermicro SuperStorage Server 6028R-E1CR16T | SSG-6028R-E1CR16T

  • Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s
  • Up to 2TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 16x DIMM slots
  • 1x PCI-E 3.0 x16, 6x PCI-E 3.0 x8
  • Dual 10GBase-T LAN w/ Intel X540
  • 16x 3.5" Hot-swap SAS3 drive bays; 2x 2.5" optional Hot-swap drive bays (rear)
  • SAS3 via LSI 3108 controller, HW RAID
  • Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 4x 8cm hot-swap redundant PWM cooling fans
  • 1000W Redundant Power Supplies Titanium Level

Configure From £2,026.44  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice.

Supermicro SuperStorage Server 6028R-E1CR16T | SSG-6028R-E1CR16T Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 2TB Of RAM

Equipable with up to a tremendous 2TB of RAM, allowing for super fast and ultra efficient multi-tasking for even the most demanding of applications.

Designed For High Capacity

Designed and optimised for storage, this server is built for high storage capacity. It also features enterprise grade reliability and is ideal if you require a lot of storage space.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro SuperStorage Server 6028R-E1CR16T | SSG-6028R-E1CR16T features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro SuperStorage Server 6028R-E1CR16T | SSG-6028R-E1CR16T with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.

Featuring Dual 10GBase-T

The Dual 10GBase-T network adapter provides high performance. This server is free from vendor lock-in and features wide ranging hardware and software compatibility.


Product SKUs
SSG-6028R-E1CR16T
  • SuperServer 6028R-E1CR16T (Black)
Motherboard

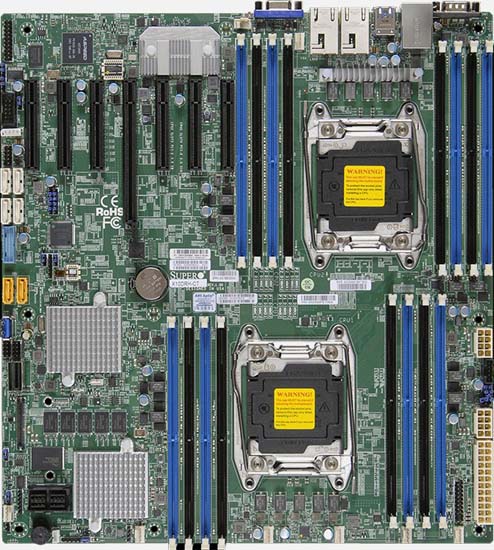

Super X10DRH-CT
Processor/Cache
CPU
  • Intel Xeon processor E5-2600 v4/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
On-Board Devices
Chipset
  • Intel C612 chipset
SAS
  • SAS3 (12Gbps) via LSI 3108 controllers; HW RAID 0,1,5,6,10,50,60
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel X540 Dual Port 10GbE
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
  • ASPEED AST2400 BMC
Input / Output
SAS
  • 16x SAS3 (12Gbps) ports
LAN
  • 2x RJ45 10GBase-T LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 ports (rear)
  • 2x USB 2.0 ports (rear)
  • 1x Type A
VGA
  • 1x VGA port
Serial Port / Header
  • 1x Fast UART 16550 port / 1 Header
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-829HTS-R1K02LPB
Dimensions
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 25.5" (647mm)
Weight
  • Gross Weight: 58 lbs (26.3 kg)
  • Net Weight: 34 lbs (15.4 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED
  • Power fail LED
Expansion Slots
PCI-Express
  • 1x PCI-E 3.0 x16 slot
  • 6x PCI-E 3.0 x8 slots
Drive Bays
Hot-swap
  • 16x 3.5" Hot-swap SAS3 drive bays
Optional
  • 2x 2.5" Hot-swap drive bays (rear)
Backplane
SAS3 expander backplane
System Cooling
Fans
  • 4x 8cm hot-swap redundant PWM cooling fans
Ultra Power Supply
1000W Redundant Titanium Level Power Supplies with PMBus
Total Output Power
  • 800W/1000W
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 9.8 - 7A / 50-60Hz
  • 200-240Vac / 7 - 5A / 50-60Hz
+12V
  • Max: 66.7A / Min: 0A (100-127Vac)
  • Max: 83A / Min: 0A (200-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level
System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C to 35C (50F to 95F)
  • Non-operating Temperature:
    -40C to 70C (-40F to 158F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

A 2U Supermicro SuperServer based on 2x E5 2600 v4 range of processors, the Supermicro SuperStorage Server 6028R-E1CR16T | SSG-6028R-E1CR16T is configurable with up to 16x Hot-Swap Drives drive bays, and designed for optimal performance with 16x 2666MHz DDR4 memory sockets .

The Supermicro SuperStorage Server 6028R-E1CR16T | SSG-6028R-E1CR16T supports the Xeon E5 2600 v4 Series Processors family in a high-density 2U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperStorage Server 6028R-E1CR16T | SSG-6028R-E1CR16T boasts 7 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperStorage Server 6028R-E1CR16T | SSG-6028R-E1CR16T Specs
  • Brand: Supermicro
  • U Size: 2U
  • Processor Family: E5 2600 v4
  • Range: Storage Supermicro SuperStorage
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 2TB
