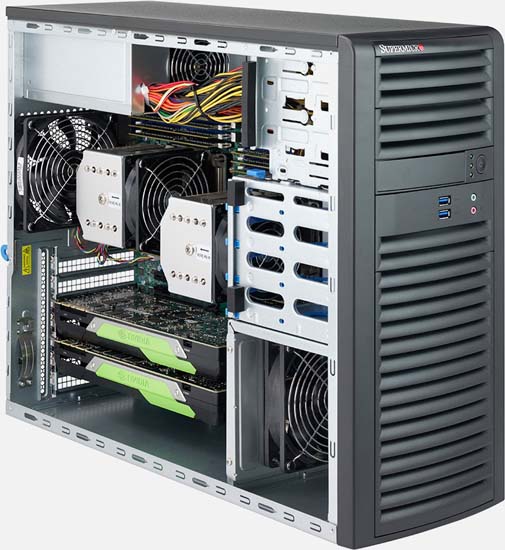

Supermicro SuperWorkstation 7039A-i | SuperWorkstation®

The Supermicro 7039A-i, optimised for low noise, has a maximum RAM capacity of 4TB and can be configured with 3.5” fixed drive bays.

  • Whisper Quiet Workstation
  • Dual Socket P (LGA 3647) support 2nd Gen. Intel Xeon Scalable processors (Cascade Lake/Skylake)
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane™ DCPMM
  • 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 slots, M.2 Interface: PCI-E 3.0 x4 M.2 Form Factor: 2260, 2280, 22110 M.2 Key: M-Key, 2 PCI-E 3.0 NVMe x4 Internal Port(s)
  • 2x 1GbE LAN ports
  • 7.1 HD Audio
  • 4 Internal fixed 3.5" drive bays, 2 5.25" peripheral drive bays
  • 1 M.2 slot, 2 NVMe support with optional cables
  • 1200W High-efficiency Power Supply Platinum Level Certified

Configure From £891.54  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice.

Supermicro SuperWorkstation 7039A-i | SuperWorkstation Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 4TB Of RAM

Equipable with up to an gigantic 4TB of RAM, which allows for fast and efficient multi-tasking for the most RAM intensive applications.

Optimised For Low Noise

Optimised to emit very low noise. Noise pollution can have quite a negative effect on your data centre, especially if you have a large number of systems in the same space.

Configure With Fixed Drives

The Supermicro SuperWorkstation 7039A-i | SuperWorkstation can be configured with reliable fixed drives which are a cheaper alternative to hot-swappable drives, lowering the overall cost of the system.

Configure with 3.5" Drives

Configure the Supermicro SuperWorkstation 7039A-i | SuperWorkstation with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.

Dual LAN with GbE from C621

Featuring the Dual LAN with GbE from C621 network adapter, which delivers performance and reliability. This server is not vendor locked and features wide ranging hardware and software compatibility.


The Supermicro 7039A-i is optimised to emit very little noise and will contribute to a reduction in noise pollution in your data centre. The system is powered by Intel SP dual processors, which enjoy huge improvements over the older generation of Xeon E7 and E5 processors. With Intel QAT (Quick Assist Technology), applications can be accelerated.

Product SKUs
SuperWorkstation
  • SYS-7039A-i (Black)
Motherboard

Super X11DAi-N
Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen. Intel Xeon Scalable Processors (Cascade Lake/Skylake),
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores with Intel HT Technology
Note BIOS version 3.0a or above is required to support 2nd Gen. Intel Xeon Scalable processors
GPU Support
  • Please refer to: Compatible GPU list
System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel Optane DCPMM
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
DIMM Sizes
  • RDIMM: 64GB
  • LRDIMM: 64GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
On-Board Devices
Chipset
  • Intel C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Dual LAN with GbE from C621
IPMI
  • ASPEED AST2500
Audio
  • RealTek ALC888 7.1 High Definition Audio with S/PDIF header
Input / Output
SATA
  • 10 SATA3 (6Gbps) ports
NVMe
  • 2 NVMe support with optional cables
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 6 USB 3.0 ports (4 rear, 2 front)
  • 2 USB 3.1 ports (rear)
Audio
  • 7.1 HD Audio with optical S/PDIF
Video
  • 1 VGA port
Serial Port / Header
  • 1 COM port (header)
DOM
  • 2 SuperDOM (Disk on Module) ports
TPM
  • 1 TPM 2.0 Header
System BIOS
BIOS Type
  • UEFI 128M
Management
Software
  • Intel Node Manager
  • IPMI 2.0
  • SSM, SPM, SUM
  • SuperDoctor 5
  • Watchdog
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • Mid-Tower
Model
  • CSE-732D3-1200B
Dimensions and Weight
Height
  • 16.7" (424mm)
Width
  • 7.6" (193mm)
Depth
  • 20.68" (525.3mm)
Gross Weight
  • 40 lbs (18.1 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LED
  • System Information LED
Ports
  • 2 front USB 3.0 Ports
  • 2 front HD/AC97 Audio Ports
Expansion Slots
PCI-Express
  • 4 PCI-E 3.0 x16 slots
  • 2 PCI-E 3.0 x8 slots
M.2
  • M.2 Interface: PCI-E 3.0 x4
  • Form Factor: 2260, 2280, 22110
  • Key: M-Key
Drive Bays
Internal
  • 4 Fixed 3.5" drive bays
    (90 rotatable drive cage)
  • Enterprise SATA HDD only recommended
Peripheral Bay
  • 2x 5.25" standard drive bays
  • 4x 2.5" fixed drive bays (optional)
System Cooling
Fans
  • 1x 12cm rear exhaust fan
  • 1x 12cm front cooling fan
  • Optimized cooling technology for Whisper-Quiet Operation
Power Supply
1200W high-efficiency power supply w/ PMBus
AC Input
  • 1000W: 100-114.9 V, 50-60 Hz, 12 Amp
  • 1200W: 114.9-240 V, 50-60 Hz, 12-8 Amp
DC Output
1000W max
1200W max
  • +3.3V / +5V / +12V / -12V / +5VSB
  • 20A / 20A / 83A / 0.3A / 3A
  • 20A / 20A / 99A / 0.3A / 3A
Note:
  • Max. continuous combined load on +3.3V and +5V output shall not exceed 120W.
Certification Platinum Certified
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C to 35C (50F to 95F)
  • Non-operating Temperature:
    -40C to 70C (-40F to 158F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

A Mid-Tower Supermicro SuperServer based on 2x Intel Intel Xeon Scalable Processors range of processors, the Supermicro SuperWorkstation 7039A-i | SuperWorkstation is configurable with up to 4x Fixed Drives drive bays, and designed for optimal performance with 16x 2666MHz, 2933MHz DDR4 memory sockets .

The Supermicro SuperWorkstation 7039A-i | SuperWorkstation supports the Intel Intel Xeon Scalable Processors family in a high-density Mid-Tower form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperWorkstation 7039A-i | SuperWorkstation boasts 6 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperWorkstation 7039A-i | SuperWorkstation Specs
  • Brand: Supermicro
  • U Size: Mid-Tower
  • Processor Family: Intel Xeon Scalable Processors
  • Range: Low Noise Supermicro SuperWorkstations
  • High-Density Twin Servers:
  • Drive Bays: Fixed Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 2TB
