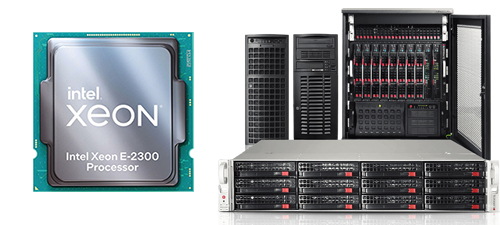

Xeon E-2300 Supermicro Servers

Supermicro's range of Intel® Xeon® E-2300 Servers provide unparalleled performance with an impressive lineup of cost-effective solutions.

Cost-effective solutions designed to cater to a diverse array of enterprise applications, such as cloud storage, enterprise server, Edge, and web services.

  • 17% Performance increase
  • 33% More cores
  • 33% More cache

Supermicro SuperWorkstation 530T-I | SYS-530T-I

Single Intel Xeon E-2300 series Processor, Ideal Entry-Level System for SOHO and SMB, Storage, application and centralised data backup system Applications. 400W Platinum Power Supply, 4x Internal 3.5"/2.5" SATA Hard Drives.

U Size:
Mid-Tower
Processor Family:
Xeon E-2300
CPU Sockets:
Single Processor
Drive Bays:
Fixed Drives
HDD Size:
3.5" Drives
Integrated Features:
Dual LAN with Intel I210-AT
Max RAM Capacity:
128GB
Configure From: £977
Configure
Supermicro UP SuperServer 510T-ML | SYS-510T-ML

Single Intel Xeon E-2300 series Processor. Ideal for Web/Hosting Application, Database Processing and Storage. 1x PCI-E 4.0 x16 slots, 1x PCI-E 3.0 x8 Slot. 400W Platinum Power Supply,

U Size:
1U
Processor Family:
Xeon E-2300
CPU Sockets:
Single Processor
Drive Bays:
Fixed Drives
HDD Size:
3.5" Drives
Integrated Features:
Dual LAN with Intel I210-AT
Max RAM Capacity:
128GB
Configure From: £1,046
Configure
Supermicro UP SuperServer 510T-WTR | SYS-510T-WTR

Single Intel Xeon E-2300 series Processor, Ideal for virtualisation, cloud computing, enterprise server. 1x PCI-E 4.0 x16 slots, 1x PCI-E 3.0 x8 Slot. Redundant Platinum 500W Power Supply, 4x 3.5/2.5" SATA/SAS drives

U Size:
1U
Processor Family:
Xeon E-2300
CPU Sockets:
Single Processor
Drive Bays:
Hot-Swap Drives
HDD Size:
3.5" Drives
Integrated Features:
Dual LAN with Intel I210-AT
Max RAM Capacity:
128GB
Configure From: £1,564
Configure
Supermicro UP SuperServer 110T-M | SYS-110T-M

Single Intel Xeon E-2300 series Processor. Ideal for Web/Hosting Application, Database Processing and Storage. 1x PCI-E 4.0 x16 slots, 1x PCI-E 3.0 x8 Slot. 400W Platinum Power Supply, 8x 2.5" SATA/SAS drives

U Size:
1U
Processor Family:
Xeon E-2300
CPU Sockets:
Single Processor
Drive Bays:
Hot-Swap Drives
HDD Size:
3.5" Drives
Integrated Features:
Intel X550-AT2 Dual Port 10GBase-T
Max RAM Capacity:
128GB
Configure From: £1,569
Configure
Supermicro UP SuperServer 510T-MR | SYS-510T-MR

Single Intel Xeon E-2300 series Processor. Ideal for virtualisation, cloud computing, enterprise server. 1x PCI-E 4.0 x16 slots, 1x PCI-E 3.0 x8 Slot. Redundant Platinum 500W Power Supply, 4x 3.5/2.5" SATA/SAS drives

U Size:
1U
Processor Family:
Xeon E-2300
CPU Sockets:
Single Processor
Drive Bays:
Hot-Swap Drives
HDD Size:
3.5" Drives
Integrated Features:
Intel X550-AT2 Dual Port 10GBase-T
Max RAM Capacity:
128GB
Configure From: £1,667
Configure
Supermicro Microcloud SuperServer 530MT-H8TNR | SYS-530MT-H8TNR

Intel Xeon E-2300 series 8 Node server, Ideal for Cloud Computing, Online Game Server Hosting, Web Hosting, VM and Social Networking. 1x PCI-E 4.0 x8 slot. 2000W Titanium Redundant 1U Power Supply, 2x 3.5/2.5" SATA/SAS/NVMe Hot Swap drives per Node.

U Size:
3U
Processor Family:
Xeon E-2300
CPU Sockets:
Single Processor
High-Density Twin Servers:
3U - 8 Nodes
Drive Bays:
Hot-Swap Drives
HDD Size:
3.5" Drives
Integrated Features:
Intel i350 Dual Port Gigabit Ethernet
Max RAM Capacity:
1TB
Configure From: £9,538
Configure
Supermicro Microcloud SuperServer 530MT-H12TRF | SYS-530MT-H12TRF

Intel Xeon E-2300 series 12 Node server, Ideal for cloud computing, Online Game Server Hosting, Web Hosting, VM and Social Networking. 1x PCI-E 4.0 x16 slots, 1x PCI-E 3.0 x8 Slot. 2200W Titanium Redundant 1U Power Supply, 2x 3.5/2.5" SATA/NVMe drives per Node.

U Size:
3U
Processor Family:
Xeon E-2300
CPU Sockets:
Single Processor
High-Density Twin Servers:
3U - 12 Nodes
Drive Bays:
Fixed Drives
HDD Size:
3.5" Drives
Integrated Features:
Intel i350 Dual Port Gigabit Ethernet
Max RAM Capacity:
1.5TB
Configure From: £13,917
Configure

Call a Broadberry Storage & Server Specialist Now: 020 8997 6000

Have a Broadberry Expert Contact You:

17x Performance Improvement

over previous generation

23% Faster Memory Speeds

than prior generation

2x More Throughput

per PCIe Lane

25% More PCIe 4.0 Lanes

over previous generation

Xeon E-2300 powered Supermicro SuperServers configured by skilled and experienced Broadberry engineers features enterprise-class reliability and performance. These affordable servers are designed to handle the most demanding applications of today at a cost-effective price.

When you order a Supermicro system from Broadberry you get a price guarantee, and the server is built and tested without extra cost by our expert Broadberry engineers.

Systems in this range feature:

  • Up to 8-core/16 threads Intel® Xeon® E-2300 processor
  • Up to 128GB DDR4-3200MHz memory
  • Dual M.2 slots
  • 3U blade enclosures
  • Dual onboard 1GbE / 10GbE LAN networking
  • Options for NVMe, SATA 3.0, and SAS storage
  • PCI-E 4.0 x16 expansion options

The Intel Xeon E-2300 processors introduce an impressive array of 10 new processor variants, featuring 4, 6, or 8 cores, accompanied by thermal design points (TDPs) ranging from 65W to 95W. Boasting Intel® Turbo Boost Technology frequencies that reach up to 5.1 GHz and memory speeds up to 23 percent faster than the previous generation, these processors surpass the earlier Intel Xeon E processors by a remarkable 17 percent. When combined with the Intel® C250 Series Chipsets, this platform provides enhanced I/O bandwidth and speed options, including new PCIe 4.0, expanded PCIe 3.0 lanes, USB 3.2 with 2x2 (20 Gb) capabilities, and support for SATA 3.0. This platform has undergone rigorous validation for compatibility with the latest server operating systems, including Windows Server 2022.

Model Cores/Threads Max Turbo Frequency Processor Base Frequency Cache TDP Processor Graphics
Intel® Xeon® E-2388G Processor 8/16 5.10 GHz 3.20 GHz 16 MB SmartCache 95W Intel® UHD Graphics P750
Intel® Xeon® E-2378G Processor 8/16 5.10 GHz 2.80 GHz 16 MB SmartCache 80W Intel® UHD Graphics P750
Intel® Xeon® E-2378 Processor 8/16 4.80 GHz 2.60 GHz 16 MB SmartCache 65W
Intel® Xeon® E-2386G Processor 6/12 5.10 GHz 3.50 GHz 12 MB SmartCache 95W Intel® UHD Graphics P750
Intel® Xeon® E-2356G Processor 6/12 5.0 GHz 3.20 GHz 12 MB SmartCache 80W Intel® UHD Graphics P750
Intel® Xeon® E-2336 Processor 6/12 4.80 GHz 2.90 GHz 12 MB SmartCache 65W
Intel® Xeon® E-2374G Processor 4/8 5.0 GHz 3.70 GHz 8 MB SmartCache 80W Intel® UHD Graphics P750
Intel® Xeon® E-2334 Processor 4/8 4.80 GHz 3.40 GHz 8 MB SmartCache 65W
Intel® Xeon® E-2324G Processor 4/4 4.60 GHz 3.10 GHz 8 MB SmartCache 65W Intel® UHD Graphics P750
Intel® Xeon® E-2314 Processor 4/4 4.50 GHz 2.80 GHz 8 MB SmartCache 65W


Intel Xeon E 2200 Processors
Latest Range
Intel Xeon E 2300 Processors
Cores 6 8
Threads 12 16
Max Turbo Frequency 4.8 GHz 5.1 GHz
Processor Base Frequency 3.8 GHz 3.7 GHz
Cache 12 MB 16MB SmartCache
Graphics Intel® UHD Graphics P630 Intel® UHD Graphics P750
TDP 71W - 95W 65W - 95W

Now Faster Than Ever

xeon e platform performance improvements

Broadberry Celebrating Over 30 Years.


Engineer performing test.Our Rigorous Testing

Before leaving our UK workshop, all Broadberry server and storage solutions undergo a rigorous 48 hour testing procedure. This, along with the high-quality industry leading components ensures all of our server and storage solutions meet the strictest quality guidelines demanded from us.


Broadberry professional.Un-Equaled Flexibility

Our main objective is to offer great value, high-quality server and storage solutions, we understand that every company has different requirements and as such are able to offer un-equaled flexibility in designing custom server and storage solutions to meet our clients' needs.
