4 Node 2U Server, Optimised for Mission Critical Applications and HPC, Configure with 2.5” Hot-swappable Drive Bays.
Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.
The Broadberry range of CyberServe® rackmount are trusted as the server of choice for thousands of companies from SMBs to enterprise's across the globe.
This system can be configured with SAS drives for bi-directional storage, which deliver enhanced speed, reliability and availability.
This system can be configured with SATA drives for cost-effective 12gb/s storage.

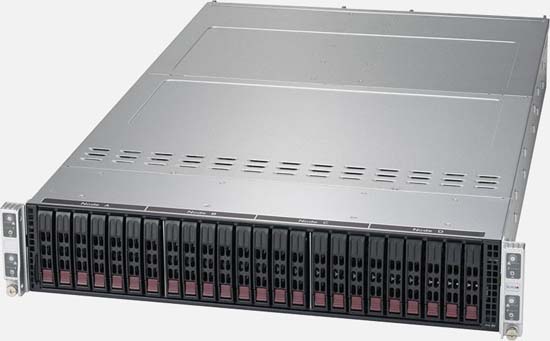

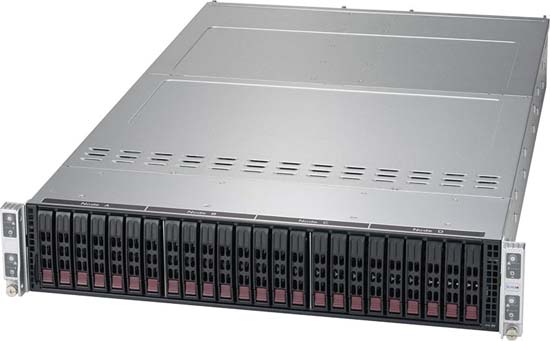

The CyberServe Xeon SP2-2029TP 4 Node 2U Server boasts high density storage and ultimate energy efficiency, catering for up to 24x High-Performance 2.5" SSD or Hard Drives
Designed for the most demanding tasks, the dual socket range of CyberServe Xeon SP® servers support the latest Intel Xeon® processor Scalable series
Powered by the revolutionary Intel Xeon SP processor range, CyberServe Xeon SP servers deliver massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.
The Broadberry CyberServe Xeon SP® range has been built from the ground up for private / hybrid cloud environments, clustering, virtualised infrastructure and database management.
The Broadberry CyberServe Xeon SP® range has a completely redesigned QPI system, producing up to 21% improvement in data efficiency as well as a 50% reduction in idle power.
All Broadberry CyberServe Xeon SP® rack servers are compatible with iPMI functionality, enabling complete control and management of your server through IP.
Boasting Intel Integrated I/0 on the processor, Broadberry CyberServe Xeon SP® servers accelerate data availability to the processing cores, reducing latency by up to 30%.
Intel Advanced Vector Extensions 512, the latest x86 vector instruction set with up to two fused-multiply add units and other optimisations, accelerates performance for the most demanding computational tasks.
Improving performance across applications and platforms, Intel QAT enhances security and compression performance in cloud, networking, big data, and storage applications.
The CyberServe Xeon SP® range replaces InfiniBand technology with a newer, more advanced interconnect called Omni-Path, allowing for 100Gbps bandwidth with no loss of PCIe lanes.
The Supermicro SYS-2029TP-HTR is powered by the Intel Xeon Scalable processors, which offer huge advantages over the previous generation of Intel Xeon processors. The improvements include significant performance boosts and security without compromise, which incorporate a range of technologies that combine to protect your server.
The CyberServe Xeon SP2-2029TP 4 Node 2U Server is a 2U rackmount server configurable with 8x Xeon Scalable Processor - Dual Socket series range of processors. Built using the latest enterprise-class server technology, the CyberServe Xeon SP2-2029TP 4 Node 2U Server has 24x 2.5" SAS, SATA and 12Gb/s SAS Hot-Swap Drives and is ideal for those requiring a combination of high performance and density with its 64x DDR4 ECC Registered memory banks providing up to 8.2TB of high-performance server memory. The CyberServe Xeon SP2-2029TP 4 Node 2U Server boasts Redundant Power Supply as just a few of its core features.The added benefit of hot-swap hard drives means that the CyberServe Xeon SP2-2029TP 4 Node 2U Server can have any of its 24 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.
Redundant Power as Standard
The Broadberry CyberServe range of enterprise-class rack servers features high efficiency power supplies with leading features such as Titanium level efficiency, digital switching control, super quiet operation, redundancy, DC inputs, FCC class B certification, remote monitoring with PMBus, support for GPUs/graphics cards and Broadberry's signature server level quality and reliability; in a variety of form factors and capacities.
CyberServe power supplies are designed for enterprise level applications where high quality and reliability are critical, and where the highest power efficiencies are required to reduce TCO.
With strong experience in the server systems market, Broadberry are experienced in testing and validating these power supplies in all relevant enterprise environments under all necessary operating conditions, compiling long operating records for multiple applications.
The CyberServe Xeon SP2-2029TP 4 Node 2U Server supports the latest Serial attached SAS storage technology with its running speed of 6Gbit/s. Another major advantage of SAS is the fact that unlike SATA, SAS is bi-directional, allowing reading and writing simultaneously.
The CyberServe Xeon SP2-2029TP 4 Node 2U Server supports 24x 2.5" desktop and enterprise-class SATA hard drives, which represents the best cost per GB ratio storage technology.Originally designed and utilised in mobile applications such as laptops and notebooks, 2.5" hard drives are becoming ever increasingly used in servers due to their lower power consumption and space-saving characteristics. The added benefit of hot-swap hard drives means that the CyberServe Xeon SP2-2029TP 4 Node 2U Server can have any of its 24 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.
Configure for your Network
The CyberServe Xeon SP2-2029TP 4 Node 2U Serverâ€™s ready to be deployed into your network environment with a wide-range of high-throughput connectivity options.
Configure the CyberServe Xeon SP2-2029TP 4 Node 2U Server to match your application I/O demands and network infrastructure with up to 8x Intel Gigabit Ethernet Adaptors , Intel 10 Gigabit Ethernet Adaptors, Qlogic Fibre Channel Adaptors, Intel 25/40/50 Gigabit Ethernet Adaptors, Mellanox ConnectX-4 Series Ethernet Adaptors.
Whether your application demands the highest networking throughput, or youâ€™re looking for a more modest enterprise-grade networking option such as Gb/E, the CyberServe Xeon SP2-2029TP 4 Node 2U Server is totally customisable with a wide range of robust I/O connectivity options.
IPMI 2.0 & KVM over IP
Whereas most server manufacturers charge ongoing licence fees for IPMI, powerful, industry-standard server management is built in to the CyberServe Xeon SP2-2029TP 4 Node 2U Server at no extra cost.
Using the dedicated 3rd LAN port or on-board Gigabit Ethernet ports, you can take full control of the server as though you were standing in front of it through your web browser from anywhere in the world through a pre-defined IP address and password.
Check the health of the CyberServe Xeon SP2-2029TP 4 Node 2U Server components, fan speeds, temperatures, update firmware, check logs & set SMTP alerts for you pre-configure thresholds, and list the health of all your servers on one simple screen.Â
The CyberServe Xeon SP2-2029TP 4 Node 2U Server IPMI feature also allows complete Keyboard Video and Mouse (KVM) control, and send CD/DVD Images over IP to install software & operating systems remotely.
Expand with PCI-Express Expansion
Configure the CyberServe Xeon SP2-2029TP 4 Node 2U Server with up to 8x Intel Gigabit Ethernet Adaptors , Intel 10 Gigabit Ethernet Adaptors, Qlogic Fibre Channel Adaptors, Intel 25/40/50 Gigabit Ethernet Adaptors, Mellanox ConnectX-4 Series Ethernet Adaptors. With a wide range of enterprise-class PCI-Express add-on options available, the CyberServe Xeon SP2-2029TP 4 Node 2U Server is a flexible platform for a wide-range of applications.The added benefit of hot-swap hard drives means that the CyberServe Xeon SP2-2029TP 4 Node 2U Server can have any of its 24 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.
We're so confident in our great value solutions, If you find a cheaper genuine price for the same specifications elsewhere we'll match it.
In today’s climate we appreciate the importance of preserving working capital yet understand that businesses still need to invest in new technology. We are delighted to inform our customers that Finance is available from just £1000 + VAT via our Strategic Partner BlueStar.
You can finance the total solution including hardware, software and installation costs and BlueStar will be happy to advise you of the most suitable package for your organisation.
BlueStar’s leasing options have enabled our customers to spread the cost of a new solution typically over a 3 year period. All payments made on a lease can be offset against taxable profits which may improve tax efficiency. Leasing also provides a flexible upgrade path allowing our customers to add further equipment to their lease throughout the term.
Finance helps to remove cash flow concerns and allows our customers to acquire the right system for their business rather than what available cash reserves dictate. Information technology is an operating cost to your business, pay for the equipment as you use it and get an immediate return on your investment.
Do you need to replace outdated equipment but don’t have the budget to purchase today?
Call us today on 020 8997 6000 to find out how leasing can work for you. Finance is subject to status and available to businesses only.
We take security seriously. Broadberry servers offer the latest technologies including TPM, self-encryption and military-grade FIPS certification.
Best Price Guarantee
Broadberry offer a Best Price Guarantee on all server and storage solutions. You won't find the same spec cheaper anywhere else.
Ease of Management
Feature-rich IPMI with out of band management and redfish API to allow easy management and monitoring of your Broadberry systems.
Unlike other leading manufacturers, Broadberry assign all customers a dedicated account manager with direct access. There’s no call centers!
Our trained engineers will pre-configure your server to your requirements, and are here to help over the phone when your server arrives.
All Broadberry solutions come with a comprehensive 3-5 year warranty, with a range of upgraded warranty options available.
From clip-in slide rails to pre-configured RAID and pre-installed OS, our engineers ensure installation fast and simple!
Our open-platform approach offers high compatibility with your existing infrastructure and no vendor-lockin.
Every business is different. Configure every element of your solution to your requirements using our powerful online configurator.
Our servers are built to grow with your organisation, whether that be by purchasing additional drives, or additional scale-out nodes.
Since the introduction of the first Broadberry PC in 1989, we’ve continually innovated and responded to emerging technologies and markets.
The Intel Xeon Scalable Processor Family improves upon previous generation Intel Xeon E5 and E7 V4 generations in just about every metric.
Intel® Xeon® Bronze processors are performance optimized for small business and basic storage servers.
Intel® Xeon® Silver processors offer the hardware-enhanced performance and security required for data center compute, network, and storage optimized for mid-sized and growing IT organisations.
Intel® Xeon® Gold processors offer high performance, advanced reliability, and hardware-enhanced security optimized for demanding data center, hybrid-cloud compute, network, and storage workloads.
Intel® Xeon® Platinum processors offer the industry's best performance for mission-critical and hybrid cloud workloads, real-time analytics, machine learning, and artificial intelligence, with monumental leaps in I/O, memory, storage, and network technologies.
|up to 8 Cores||up to 12 Cores||up to 22 Cores||up to 28 Cores|
|up to 2 Sockets||up to 2 Sockets||up to 4 Sockets||up to 8+ Sockets|
|up to 1.5TB||up to 1.5TB||up to 6TB||up to 12TB|
The CyberServe Xeon-SP range has been designed from the ground up for the latest industry advances for today's datacenter applications.
Powered by Intel Xeon Scalable Processors, the CyberServe Xeon-SP range of servers have the design flexibility to thrive across common applications and mission critical operations or to harness actionable insights from advanced real-time analytics and emerging imperatives like artificial intelligence, 5G, autonomous driving and more.
This agility enables you to seize new business opportunities from our increasingly data-fueled smart and connected world.
|Intel Xeon Processor E5-2600 v4||Intel Xeon Scalable Processor|
|Cores Per Socket||Up to 22||Up to 28|
|Threads Per Socket||Up to 44 threads||Up to 56 threads|
|Last-level Cache (LLC)||Up to 55 MB||Up to 38.5 MB (non-inclusive)|
|QPI/UPI Speed (GT/s)||2x QPI channels @ 9.6 GT/s||Up to 3x UPI @ 10.4 GT/s|
|PCIe* Lanes /Controllers /Speed(GT/s)||40 / 10 / PCIe 3.0 (2.5, 5. 8 (GT/s)||48 / 12 / PCIe 3.0 (2.5, 5,8 GT/s)|
|Memory Population||4 channels of up to 3 RDIMMs,
LRDIMMs, or 3DS LRDIMMs
|6 channels of up to 2 RDIMMs,
LRDIMMs, or 3DS LRDIMMs
|Max Memory Speed||Up to 2400||Up to 2666|
