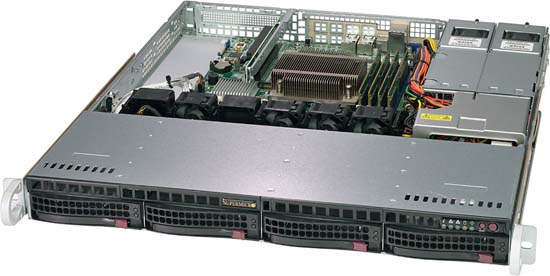

Supermicro SYS-5019C-M SuperServer | 5019C-M®

The Supermicro SYS-5019C-M is a general-purpose system configurable with 3.5” hot-swappable drive bays up to 128GBs of RAM, making it ideal for small businesses.

  • General Purpose, SMB, Web Hosting
  • Application and data serving
  • Archiving, Mail/Finance, Security
  • Single Socket H4 (LGA 1151) supports Intel Xeon processor E-2100, 8th Gen. Intel Core™ i3 Processors, Intel Celeron, Intel Pentium
  • Intel C246 chipset
  • Up to 128GB ECC UDIMM, up to DDR4-2666MHz; 4 DIMM slots
  • 1 PCI-E 3.0 x16 slot
  • 4 Hot-swap 3.5" drive bays
  • M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key
  • 2 GbE LAN ports, 1 dedicated IPMI LAN
  • 2 USB 3.1 (rear), 2 USB 2.0 (rear)
  • 1 VGA, 1 COM, 1 TPM header
  • 350W Multi-output power supply, Platinum Level Certified

Configure From £825.13




Loading Configurator...

Prices for products are subject to change without notice.

Supermicro SYS-5019C-M SuperServer | 5019C-M Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Up To 50% More Cores

Powered by the latest Intel Xeon E family of processors, featuring up to 50% more cores than previous generation Xeon processors.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon E processor range, delivering massive improvements in every metric over the previous generation processors.

Data Protection Technology

Security is substantially improved with Intel Data Protection Technology (with Advanced Encryption Standard New Instructions).

Ideal For Small Business

Systems based on Intel Xeon E processors enable your business to evolve while also delivering a constantly available solution to safeguard your data.

Configure With Single Processor

Designed for server applications where multi processors are not required. Single processors are an affordable, cost-effective and reliable option.

Configure With Up to 128GB of RAM

Equipable with up to 128GB of RAM, this system optimised for light to mid level processing and offers a superb performance to cost ratio.

Optimised For General Purpose

Optimised for general purpose, this server is very effective for consistent all around use. if you require a server that can perform a wide variety of tasks well, this server is for you.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro SYS-5019C-M SuperServer | 5019C-M features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro SYS-5019C-M SuperServer | 5019C-M with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.

Dual LAN with Intel I210-AT

Featuring the Dual LAN with Intel I210-AT network adapter, which delivers performance and reliability. This server is not vendor locked and features wide ranging hardware and software compatibility.


The SYS-5019C-M is powered by the Xeon E processor range, which features up to 50% more cores than the previous generation of Xeon processors. This system comes with a redundant power supply, providing a backup option if the original power source fails. The Dual LAN with Intel I210-AT network adaptor delivers reliable, consistent performance. This server is perfect for use for both general purpose and web hosting use.

Product SKUs
SYS-5019C-M
  • SuperServer 5019C-M (Black)
Motherboard

Super X11SCM-F
Processor
CPU
  • Single Socket H4 (LGA 1151),
    CPU TDP support up to 95W
  • Support Intel Xeon Processor E-2100 series, 8th Gen. Intel Core i3 / Pentium / Celeron Processors
Cores / Cache
  • 6 cores, 12 threads
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB Unbuffered ECC UDIMM
  • Up to DDR4-2666MHz
Memory Type
  • 2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB
Note
  • 128GB system memory capacity will be available in 2019 through a published BIOS update.
On-Board Devices
Chipset
  • Intel C246 chipset
SATA
  • SATA3 (6Gbps) via Intel C246 controller
  • RAID 0, 1, 5, 10 support
IPMI
  • ASPEED AST2500
Network Controllers
  • Dual LAN with Intel I210-AT
Video
  • ASPEED AST2500 BMC
Input / Output
SATA
  • 6 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.1 ports (rear)
  • 2 USB 2.0 ports (rear)
Video
  • 1 VGA port
Serial Port / Header
  • 1 COM port (header)
TPM
  • 1 TPM 2.0 Header
System BIOS
BIOS Type
  • UEFI 256Mb
BIOS Features
  • ACPI 6.0
  • SMBIOS 2.7
  • Plug and Play (PnP)
  • RTC (Real Time Clock) Wakeup
  • UEFI 2.7
  • USB Keyboard support
  • PCI 3.0
Management
Software
  • Intel Node Manager
  • IPMI 2.0
  • NMI
  • SSM, SPM, SUM
  • Watch Dog
  • SuperDoctor 5
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-813MFTQC-350CB2
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 19.85" (503mm)
Package
  • 8.5" (H) x 23.4" (W) x 29.7" (D)
Weight
  • Gross Weight: 32 lbs (14.52 kg)
  • Net Weight: 18 lbs (8.16 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED
Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x16 slot
M.2
  • M.2 Interface:
    1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
  • M.2 Form Factor: 2280/22110
  • M.2 Key: M-Key
Drive Bays
Hot-swap
  • 4 Hot-swap 3.5" drive bays
System Cooling
Fans
  • 4x 40x28mm PWM fans
Power Supply
350W AC power supply w/ PFC
AC Voltage
  • 100-240 V, 50-60 Hz, 4.2-1.8 Amp
+5V
  • Max.: 15 Amp
  • Min.: 0.2 Amp
+5V standby
  • Max.: 3 Amp
  • Min.: 0 Amp
+12V
  • Max.: 29 Amp
  • Min.: 0.5 Amp
-12V
  • Max.: 0.2 Amp
  • Min.: 0 Amp
+3.3V
  • Max.: 12 Amp
  • Min.: 0.2 Amp
Certification Platinum Level Certified
PC Health Monitoring
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN
  • 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature
  • Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C to 35C (50F to 95F)
  • Non-operating Temperature:
    -40C to 70C (-40F to 158F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

A 1U Supermicro SuperServer based on 1x Intel Xeon E-2100 range of processors, the Supermicro SYS-5019C-M SuperServer | 5019C-M is configurable with up to 4x Hot-Swap Drives drive bays, and designed for optimal performance with 4x 2666MHz DDR4 memory sockets .

The Supermicro SYS-5019C-M SuperServer | 5019C-M supports the Intel family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SYS-5019C-M SuperServer | 5019C-M boasts 1 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SYS-5019C-M SuperServer | 5019C-M Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: Xeon E-2100
  • Range: General Purpose Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 64GB
